Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the cruise control cable. Refer to Cruise Control Cable Replacement .
  2. Disconnect the electrical connector (2).

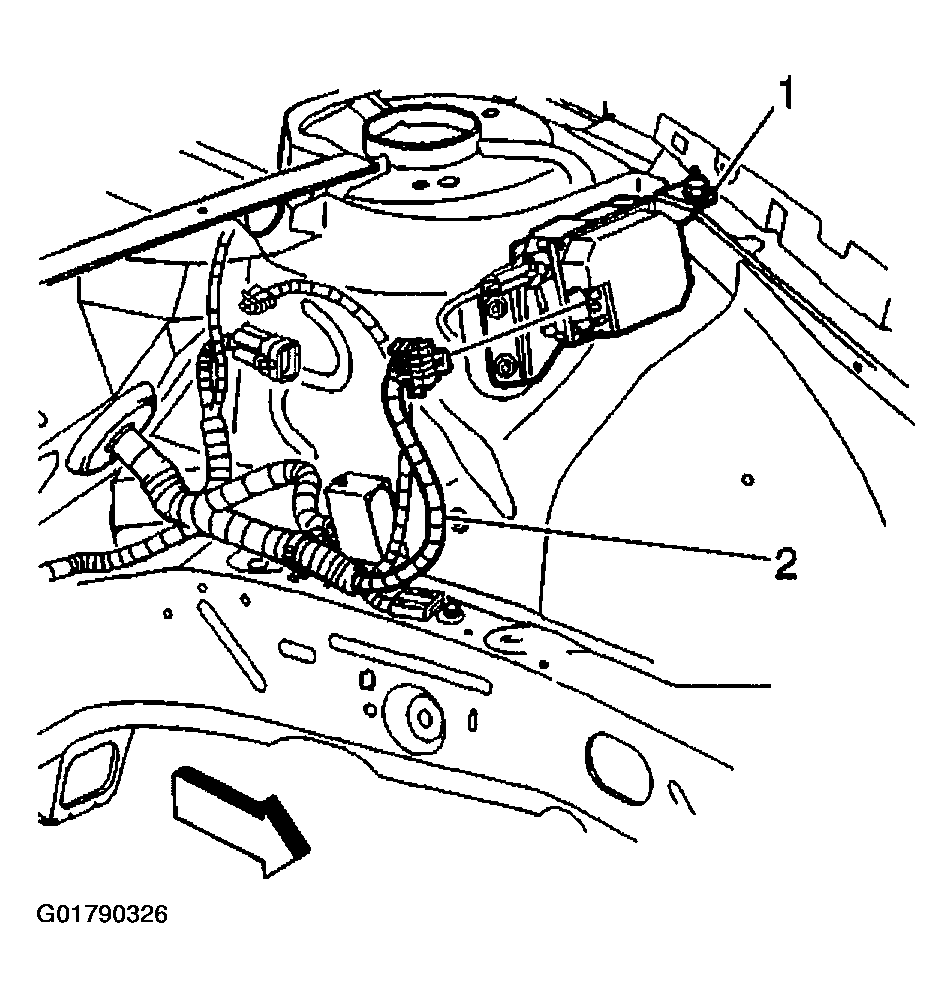

    Fig 1: Disconnecting Electrical Connector
    G01790326Courtesy of GENERAL MOTORS CORP.
  3. Remove the cruise control module bracket retaining fasteners (1, 3).

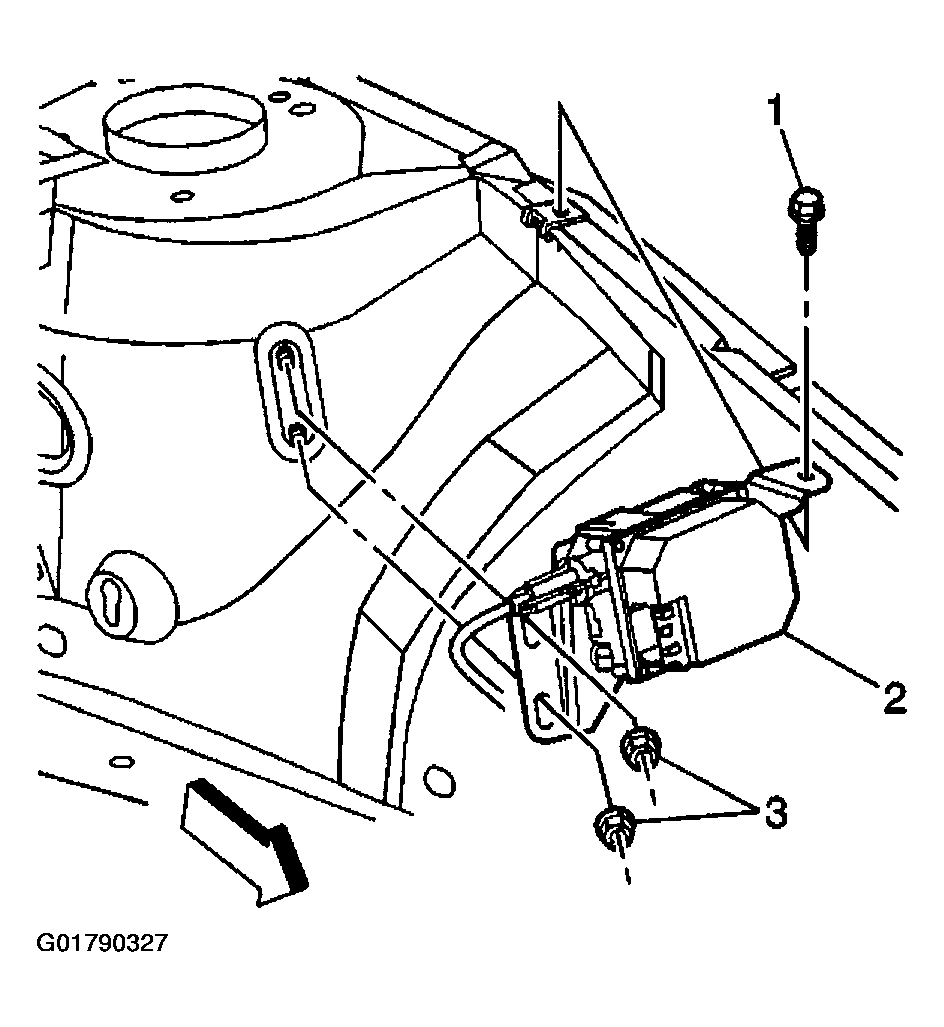

    Fig 2: Removing Cruise Control Module & Bracket Assembly
    G01790327Courtesy of GENERAL MOTORS CORP.
  4. Remove the cruise control module and bracket assembly (2) from the vehicle.
  5. Remove the module to bracket fasteners.
  6. Remove the cruise control module from the bracket.
