Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module (2) to the bracket.

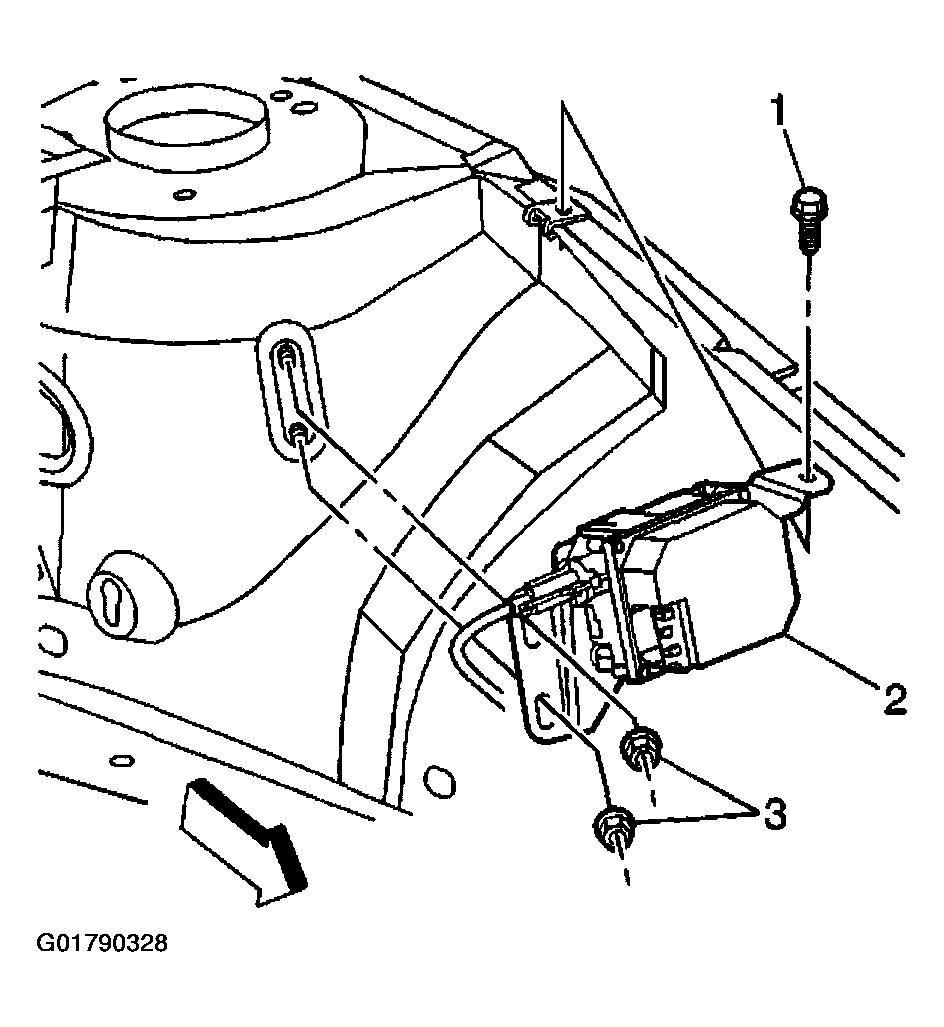

    Fig 1: Installing Cruise Control Module To Bracket
    G01790328Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the module to bracket fasteners.

    Tighten

    Tighten the fasteners to 7.5 N.m (66 lb in).

  3. Install the cruise control module and bracket assembly to the vehicle.
  4. Install the module retaining fasteners 0, 3).

    Tighten

    Tighten the fasteners to 9 N.m (80 lb in).

  5. Connect the electrical connector (2).

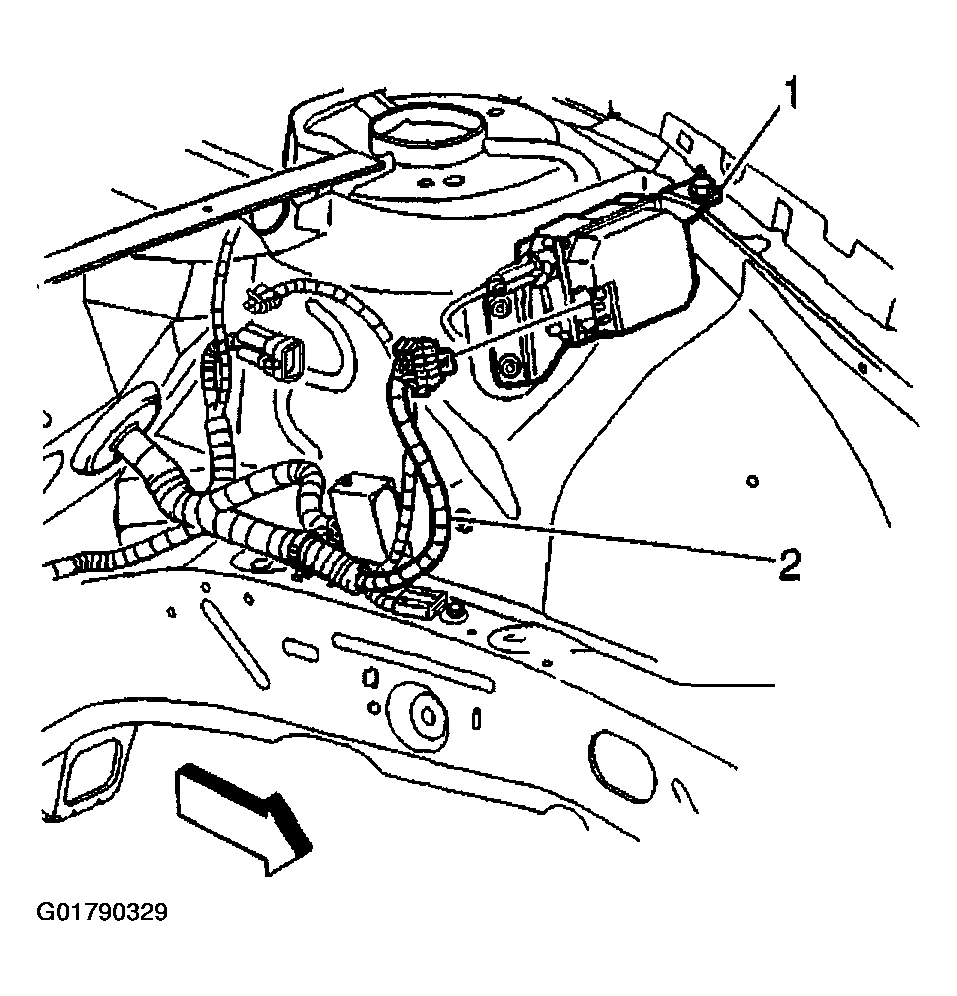

    Fig 2: Connecting Electrical Connector
    G01790329Courtesy of GENERAL MOTORS CORP.

    Important:  The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable. Refer to Cruise Control Description and Operation  for the complete operational details.

  6. Connect the cruise control cable. Refer to Cruise Control Cable Replacement .
  7. Inspect the component operation.
