WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

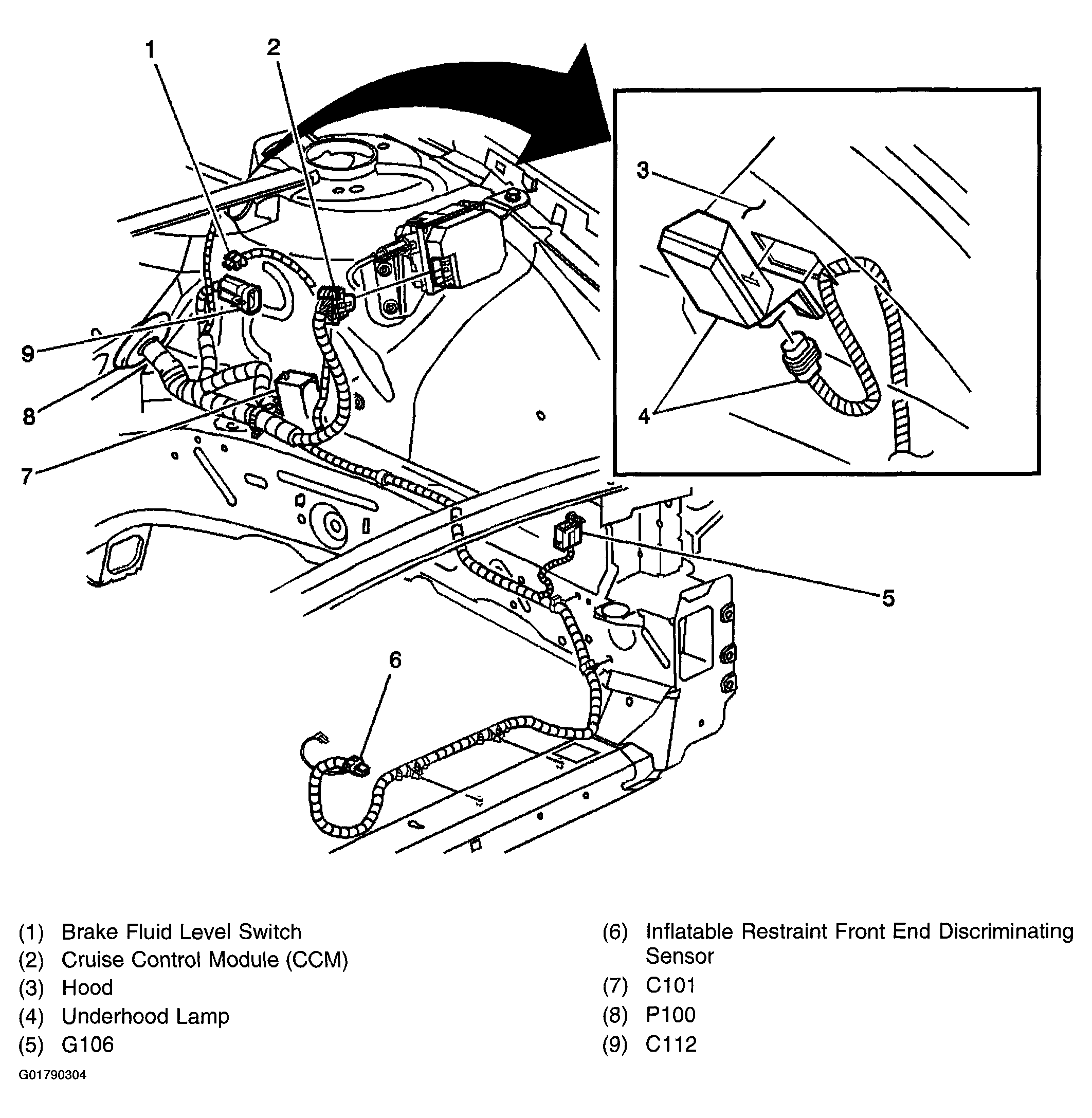

Fig 1: Identifying Engine Compartment, On the Left Side
Courtesy of GENERAL MOTORS CORP.

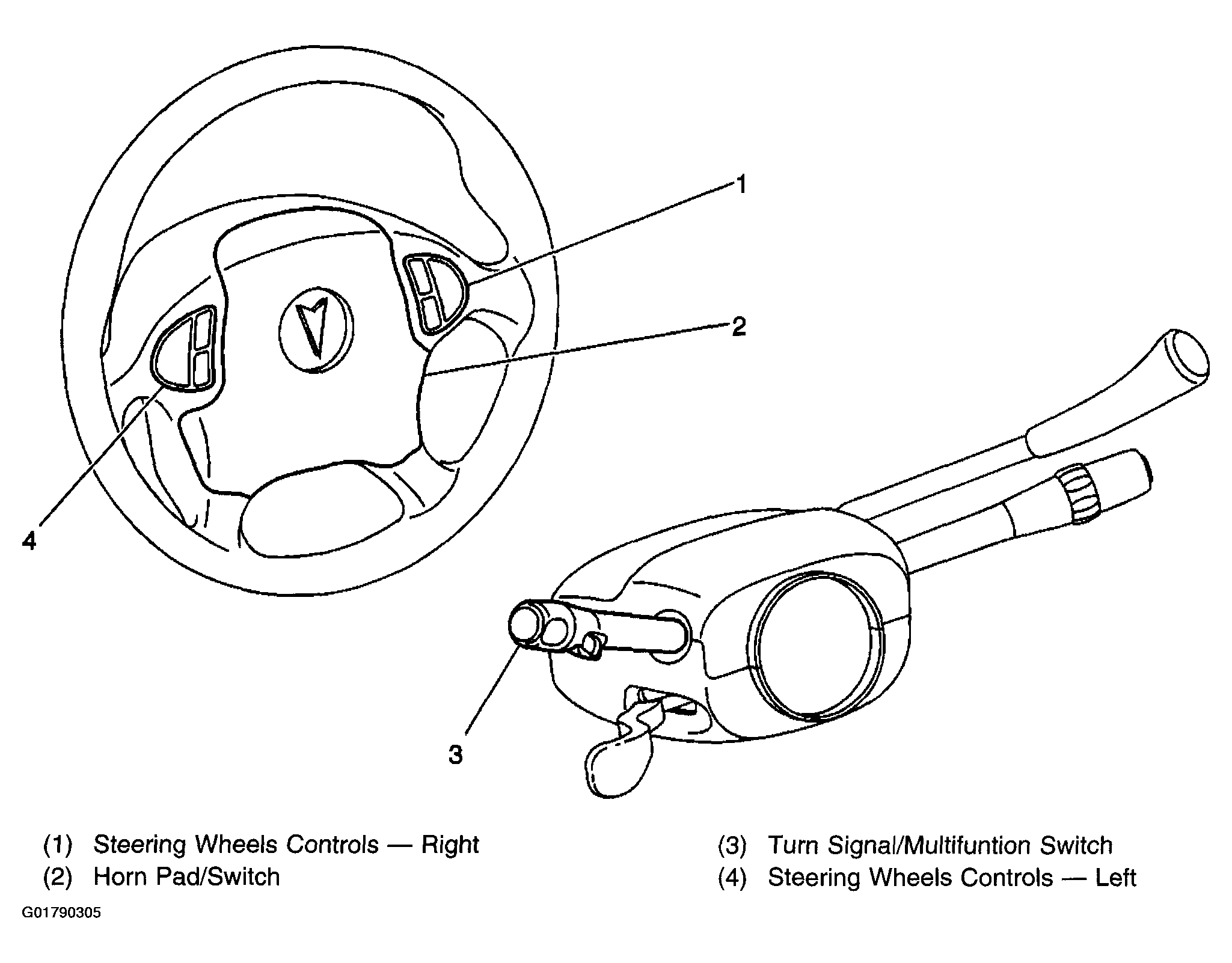

Fig 2: Identifying Passenger Compartment, Top of the Steering Column
