Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Bonneville. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front trim from inside of the rear storage compartment. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR .

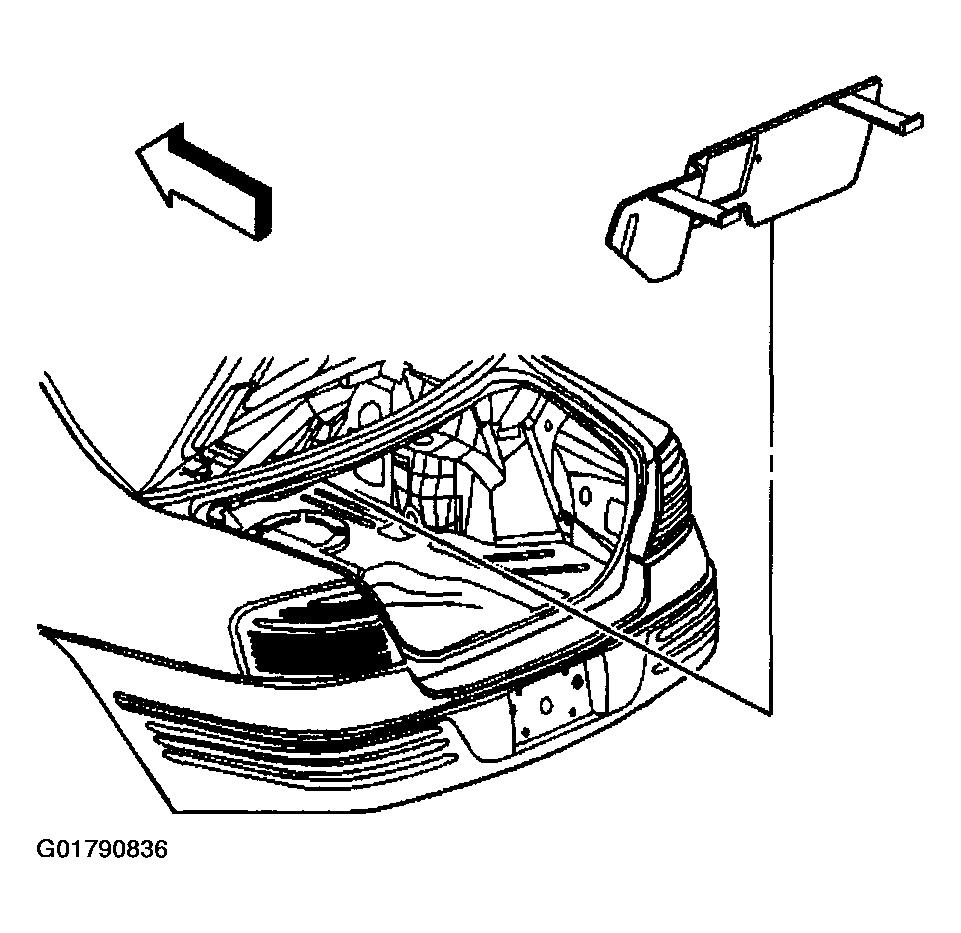

Fig 1: Removing Front Trim
Courtesy of GENERAL MOTORS CORP.
Disconnect the electrical connector.
Depress the retainer tabs (1).

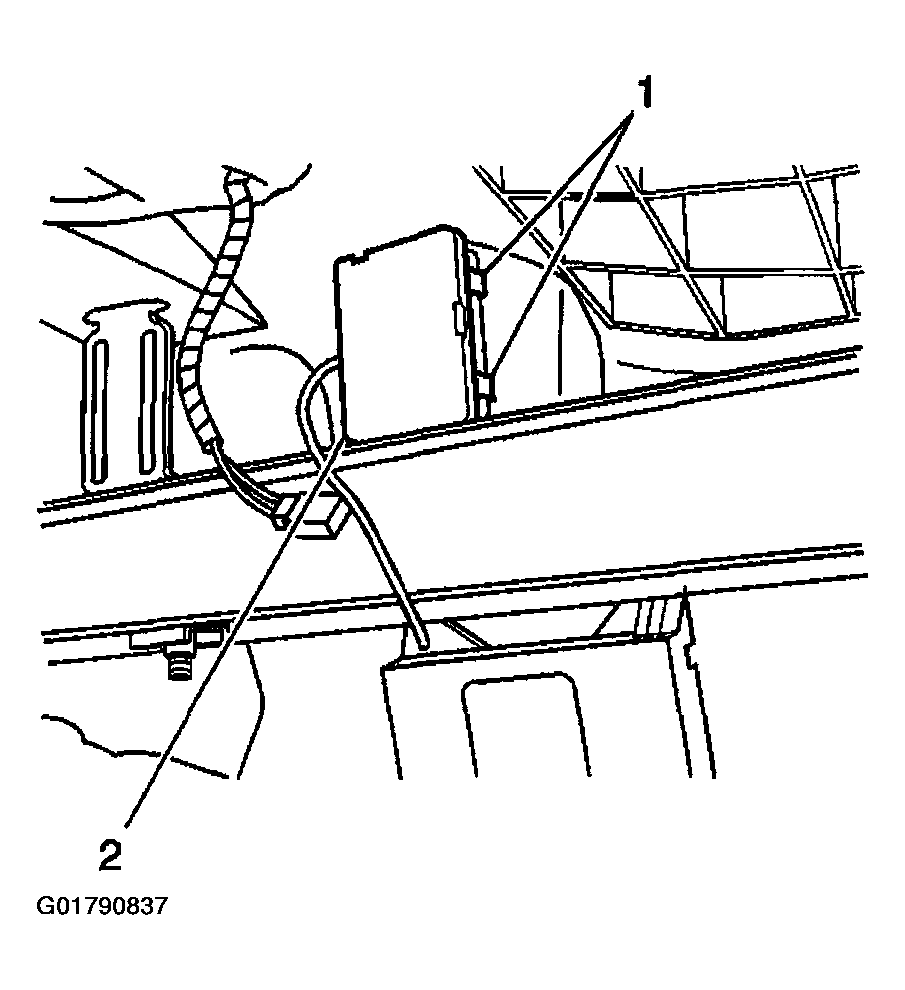

Fig 2: Removing Remote Control Door Lock Receiver Module
Courtesy of GENERAL MOTORS CORP.
Remove the remote control door lock receiver module (2).
