Home >> Buick >> 2002 >> Century Limited >> Repair and Diagnosis >> Engine Mechanical >> Engine Exhaust System >> Repair Instructions >> Muffler Replacement >> Removal Procedure

Removal Procedure

  1. Raise and support the vehicle.
  2. Support the exhaust system.
  3. Remove the catalytic converter bolts.
  4. Remove the catalytic converter gasket.
    Fig 1: Catalytic Converter Gasket
    G01766120Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust hanger insulators from the muffler.
  6. Remove the muffler from the support.

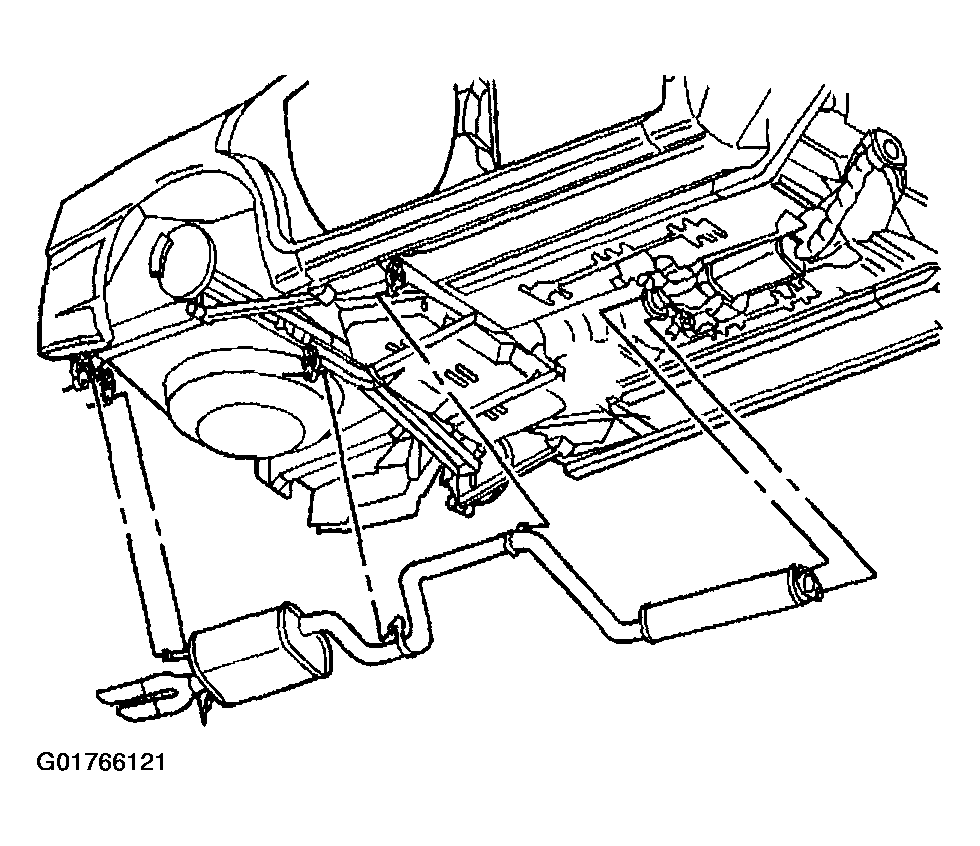

    Fig 2: Muffler
    G01766121Courtesy of GENERAL MOTORS CORP.
