Installation Procedure

  1. Position the horn relay (1) to the underhood electrical center pressing in until fully seated.

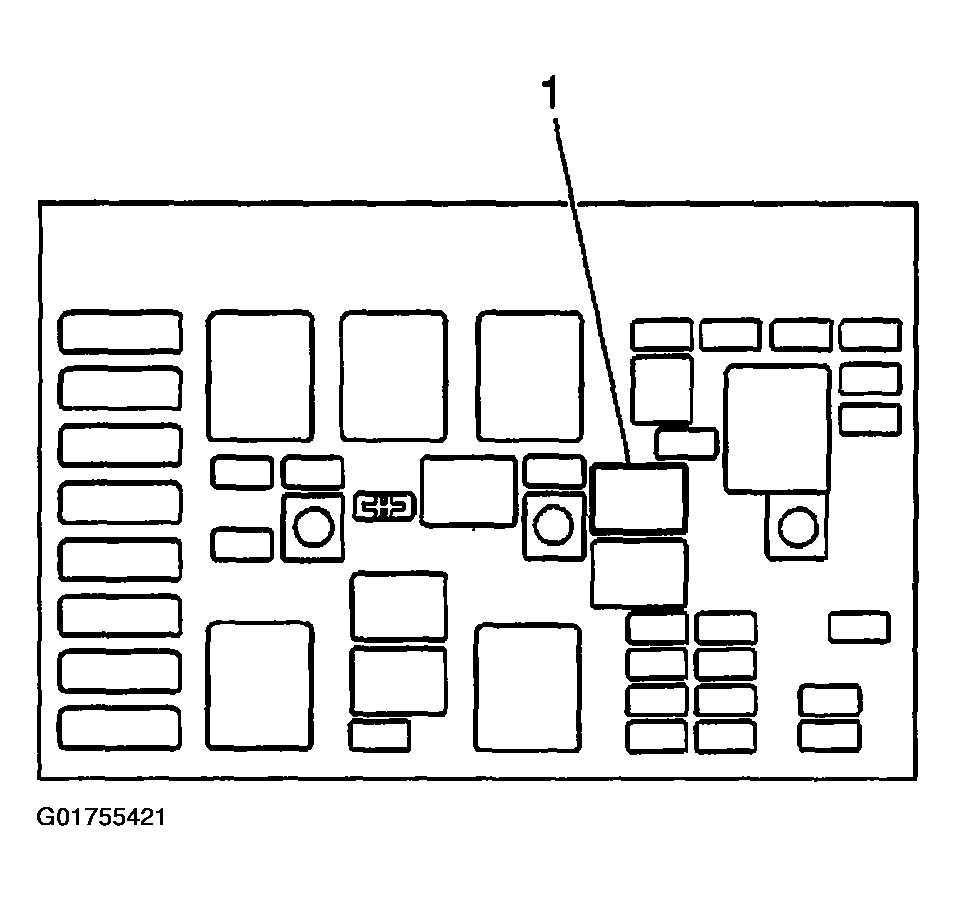

    2. Fig 1: Identifying Horn Relay
    G01755421Courtesy of GENERAL MOTORS CORP.
  2. Install the cover to the underhood electrical center.

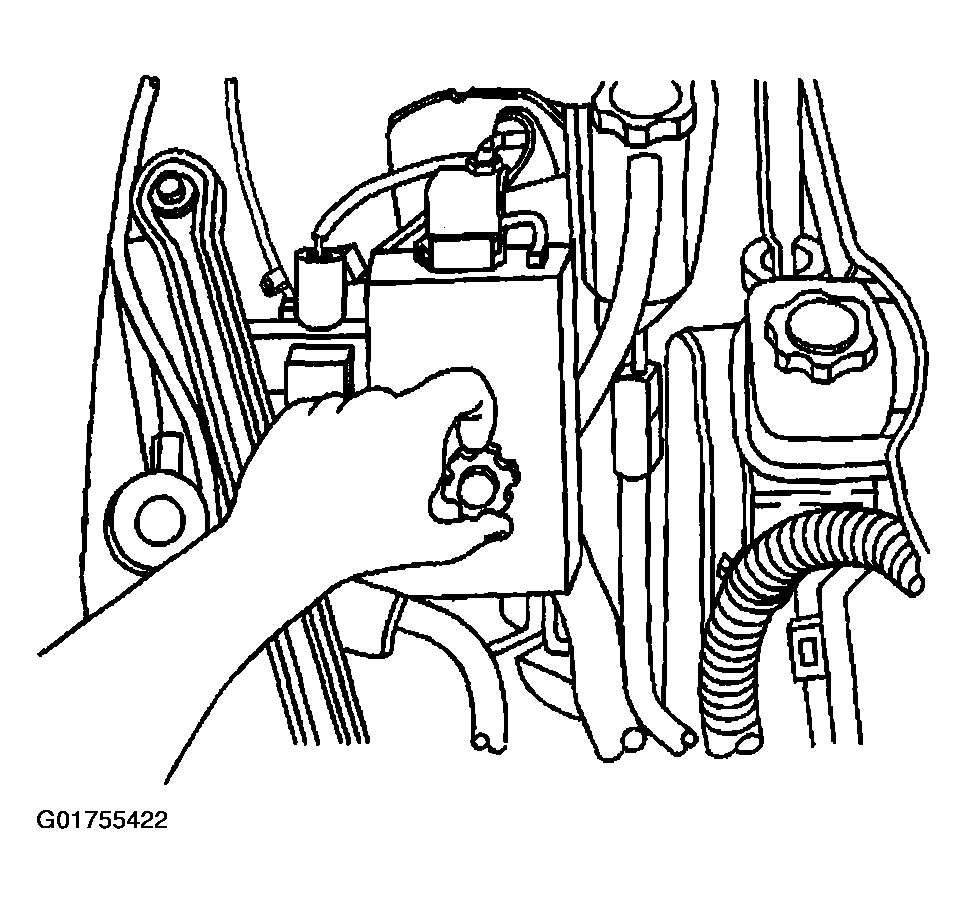

    3. Fig 2: Identifying Underhood Electrical Center Cover
    G01755422Courtesy of GENERAL MOTORS CORP.
  3. Close the hood.
