Installation Procedure

  1. Lubricate the tilt spring (2) with synthetic grease.
  2. Install the spring guide (1) into the tilt spring (2).
    Fig 1: Spring Guide And Tilt Spring
    G01720268Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
    1. 3.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. 3.2. Secure the tilt spring (1) with locking pliers.

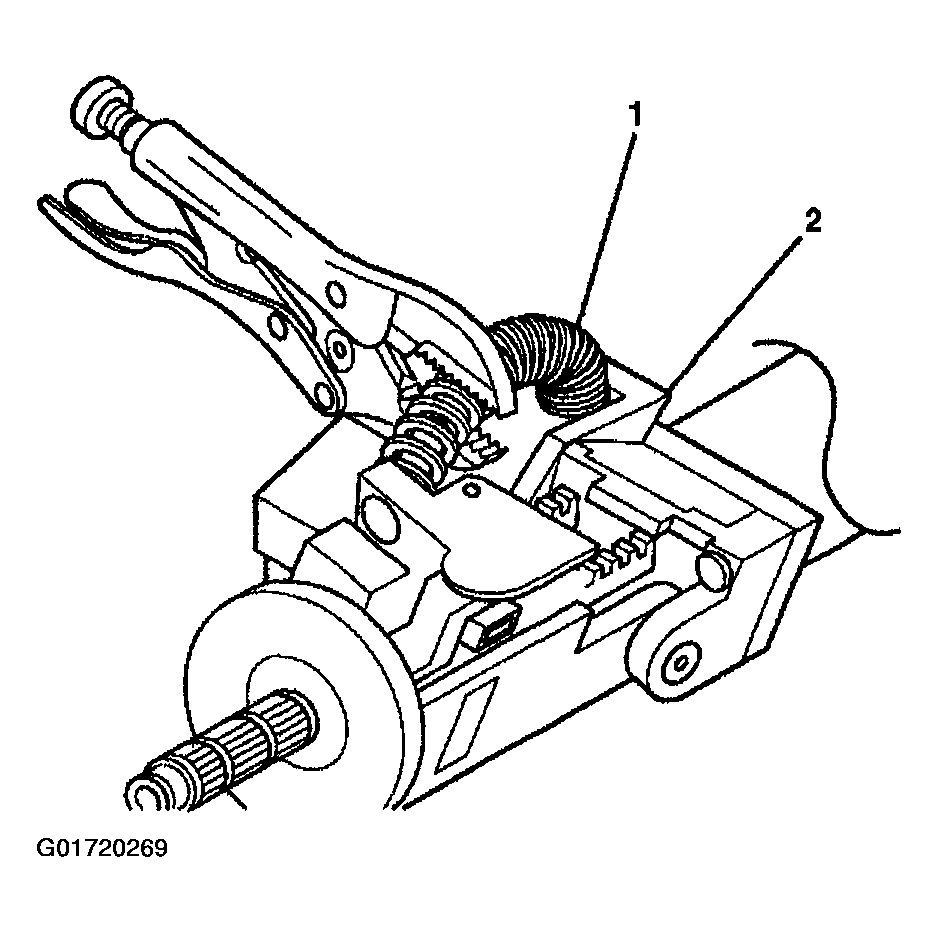

      Fig 2: Installing Tilt Spring
      G01720269Courtesy of GENERAL MOTORS CORP.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
