Installation Procedure

  1. Install the linear shift assembly (2) onto the steering column (3).
  2. Secure the linear shift assembly (2) to the steering column (3) with the screws (1).

    Tighten:

    Tighten the 3 screws to 10 N.m (89 lb in)

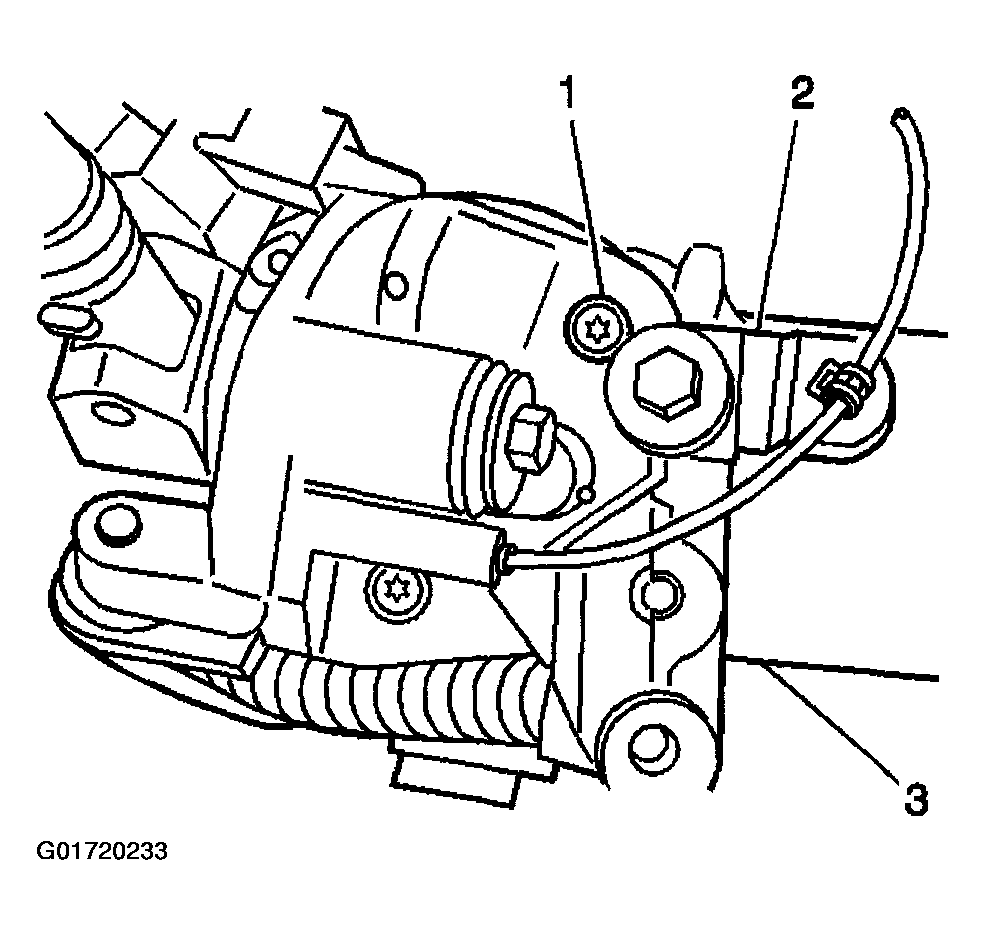

    Fig 1: Linear Shift Assembly, Steering Column And Screws
    G01720233Courtesy of GENERAL MOTORS CORP.
  3. Install the automatic transmission shift lock control. Install the shift lever clevis and put the column in the NEUTRAL position, which is 2 positions from the PARK position.
    Fig 2: Automatic Transmission Shift Lock Control
    G01720234Courtesy of GENERAL MOTORS CORP.
  4. Connect the park lock cable assembly (1) to the electronic lock module assembly in the following way:
    1. 4.1. Place the steering column lock cylinder set into the OFF position.
    2. 4.2. Place the shift lever clevis into the PARK position.
    3. 4.3. Press the locking tab on the end of the park lock cable assembly (1) into the slot in the electronic lock module assembly.

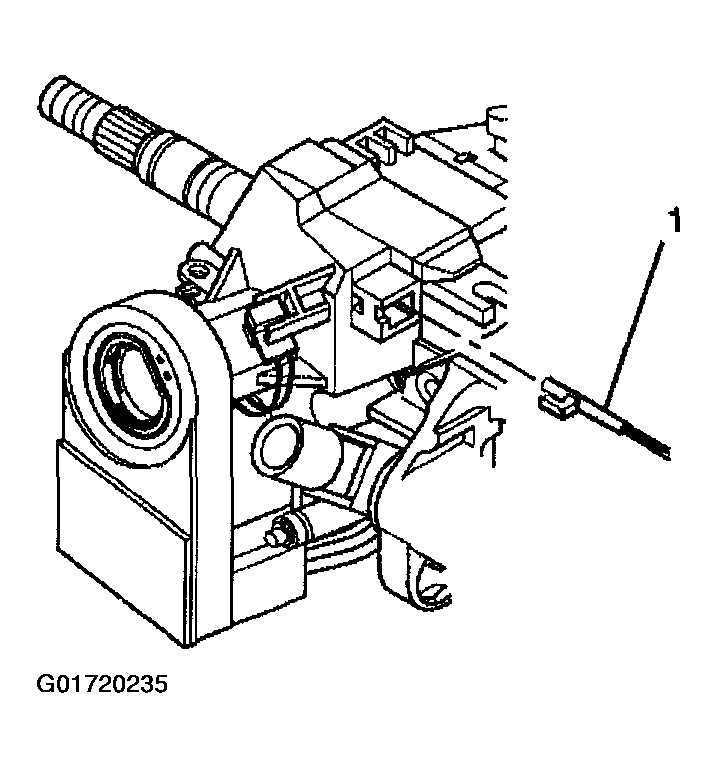

      4. Fig 3: Park Lock Cable Assembly
      G01720235Courtesy of GENERAL MOTORS CORP.
  5. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT in GAUGES AND INSTRUMENT PANEL .
  6. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
