Power Steering Gear Disassembled View (Magnasteer)

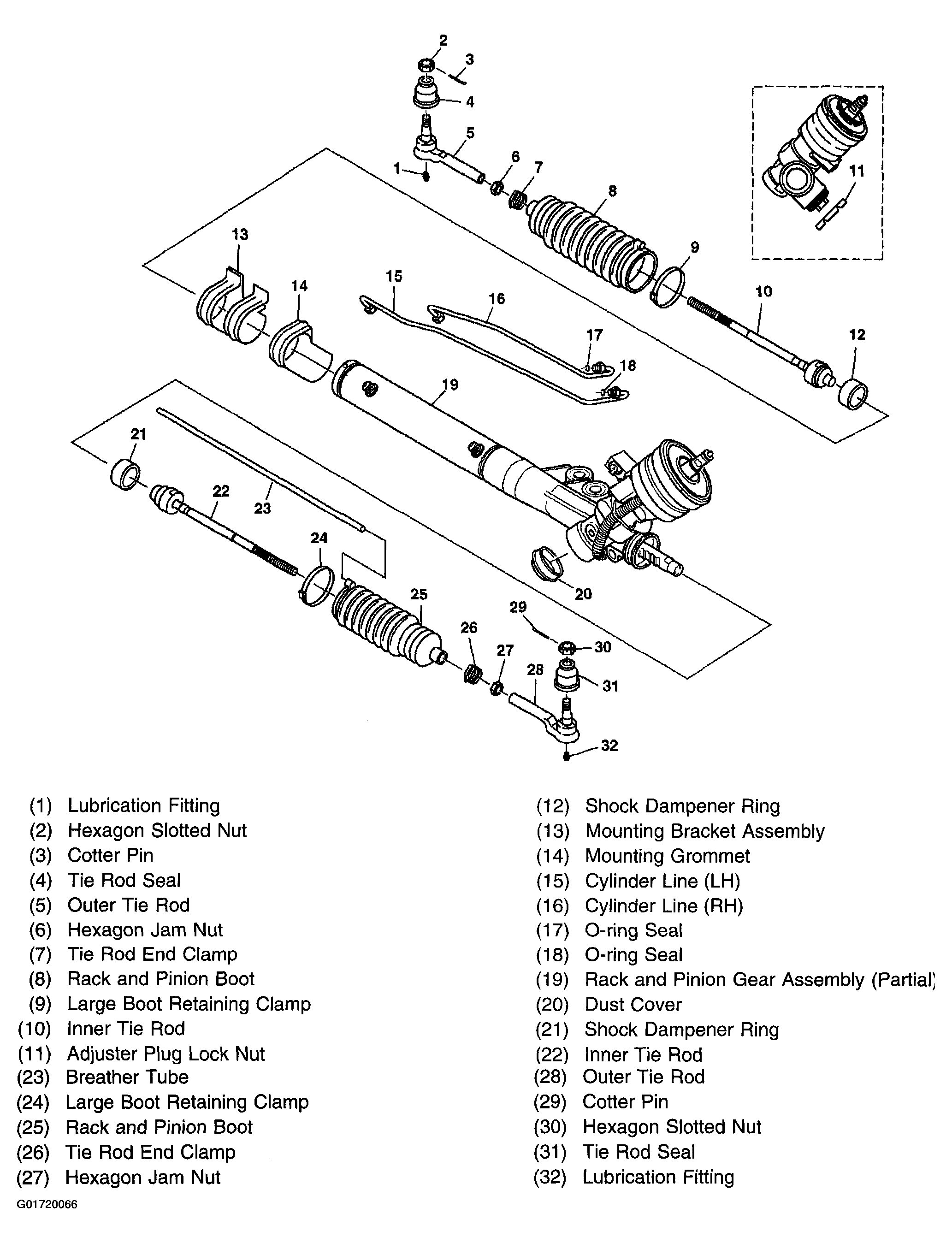

Fig 1: Magnasteer Power Steering Gear Component Locations

G01720066

Courtesy of GENERAL MOTORS CORP.
