Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel inside of the vehicle.
  2. If equipped with center shoulder belt, feed the belt and escutcheon though the hole in the trim panel.
  3. Install the center shoulder belt escutcheon.
  4. Install the outer shoulder belts to the trim panel (2).
  5. Install the push fasteners to secure the rear window trim panel.
  6. Install the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  7. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR .

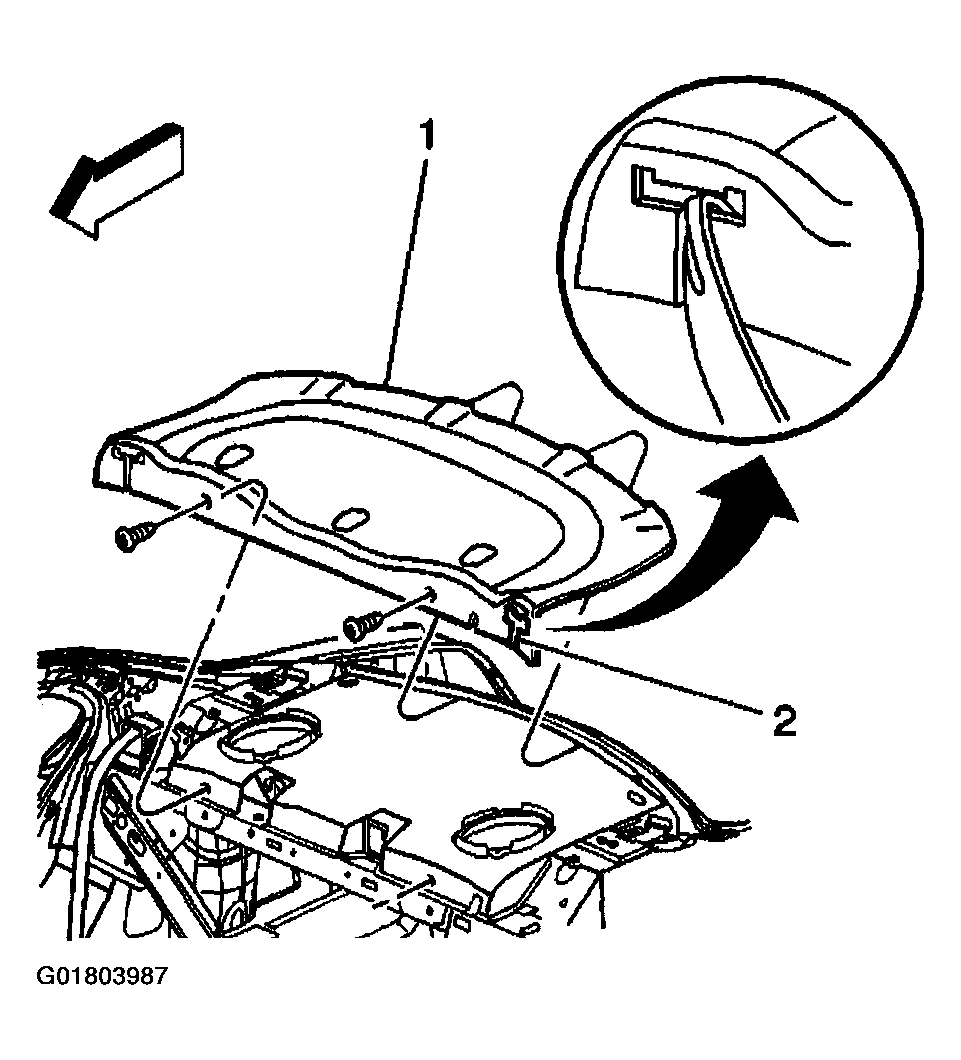

    Fig 1: Installing Rear Window Trip Panel
    G01803987Courtesy of GENERAL MOTORS CORP.
