Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Carefully lift upwards in order to release the retaining clips securing the carpet retainer to the body.
  3. Remove the carpet retainer from the vehicle.

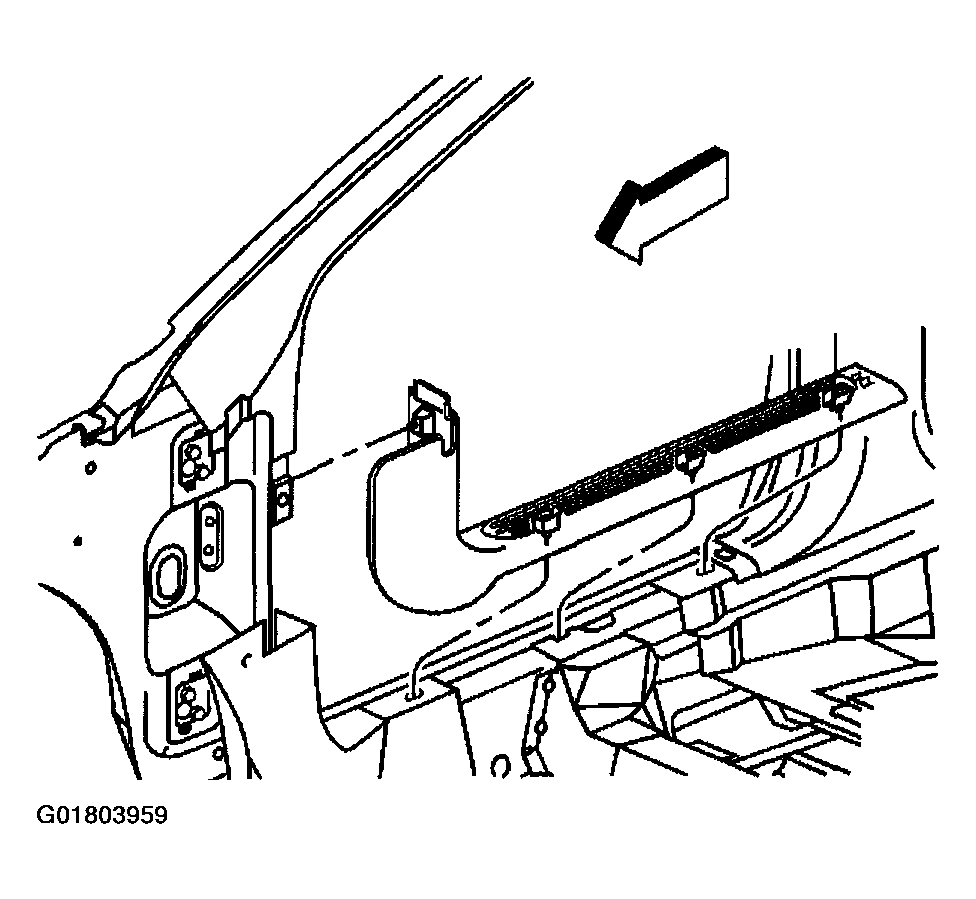

    Fig 1: Removing Front Carpet Retainer
    G01803959Courtesy of GENERAL MOTORS CORP.
