Removal Procedure

  1. Open the hood.
  2. Remove the RH headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT .
  3. Disconnect the horn electrical connector.

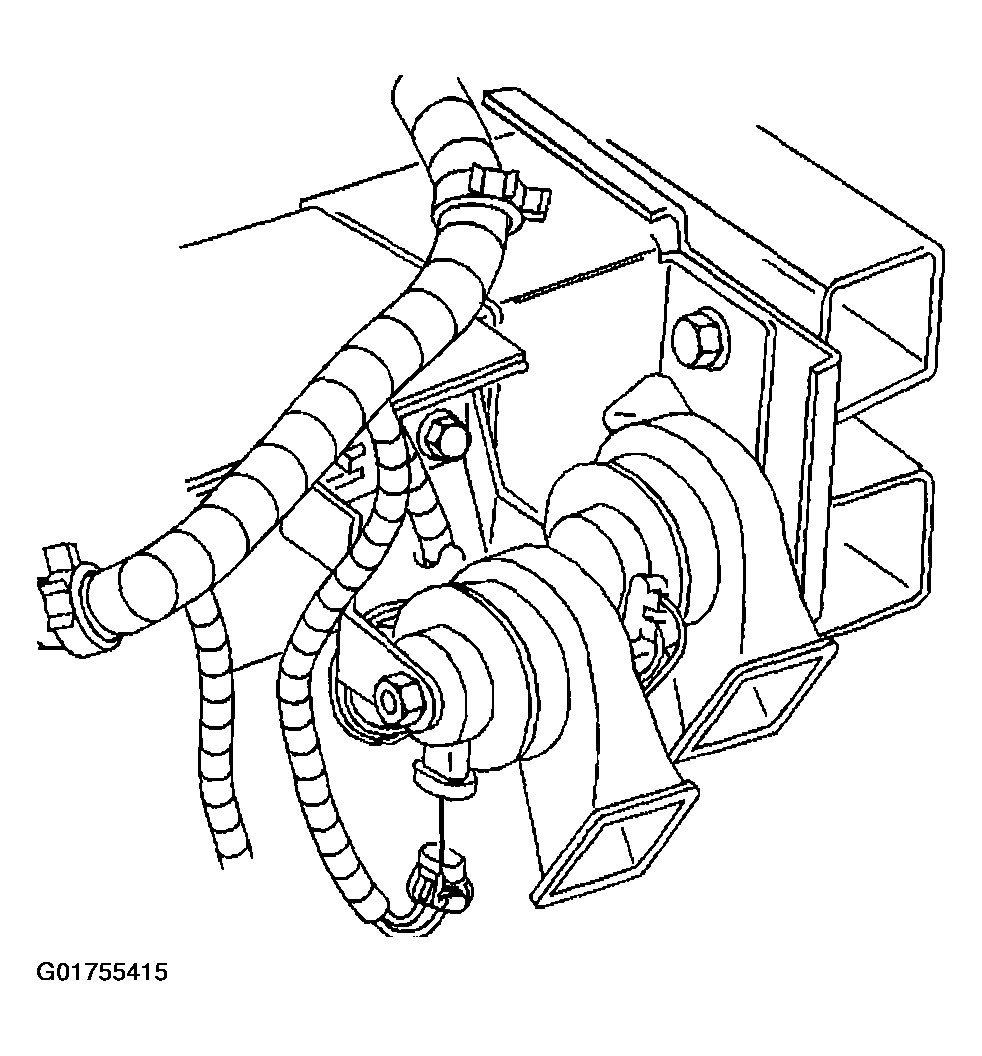

    4. Fig 1: Identifying Horn Electrical Connector
    G01755415Courtesy of GENERAL MOTORS CORP.
  4. Remove the horn bracket bolt.

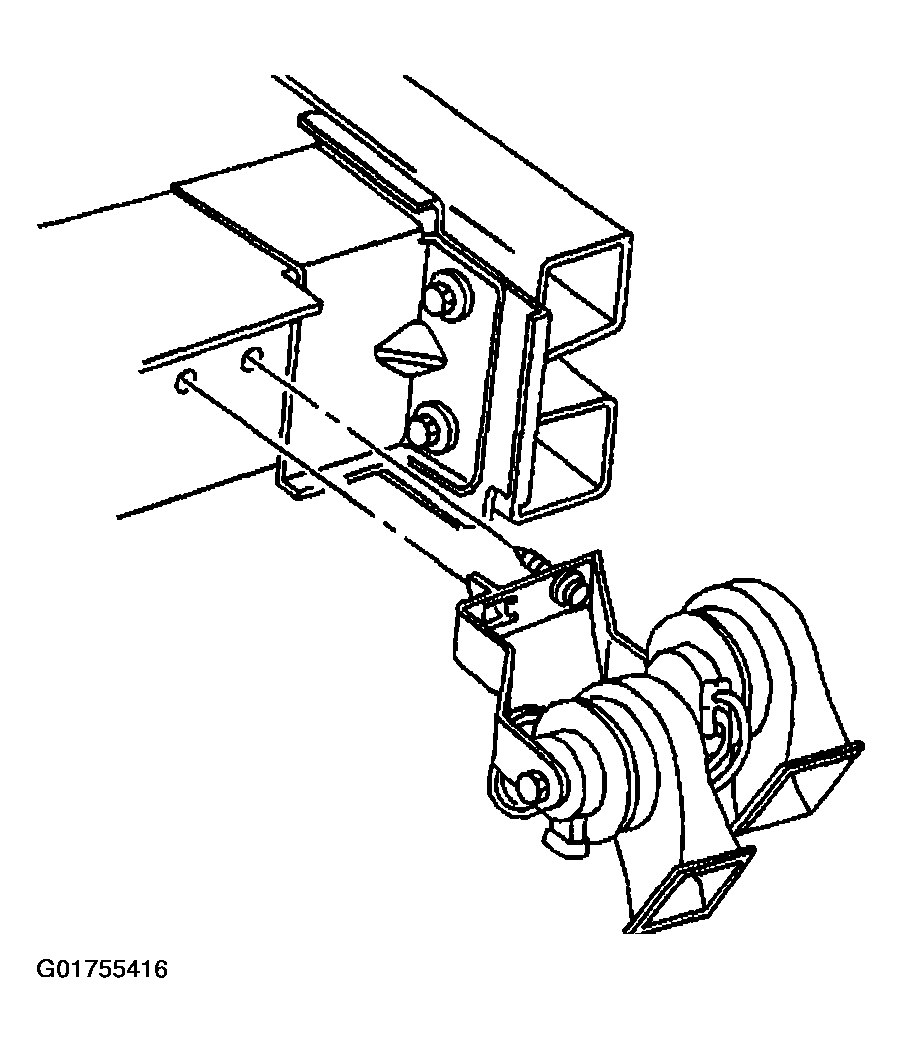

    5. Fig 2: Identifying Horns
    G01755416Courtesy of GENERAL MOTORS CORP.
  5. Remove the horn from the frame rail extension.
