Removal Procedure

  1. Open the hood.
  2. Remove the cover from the underhood electrical center.

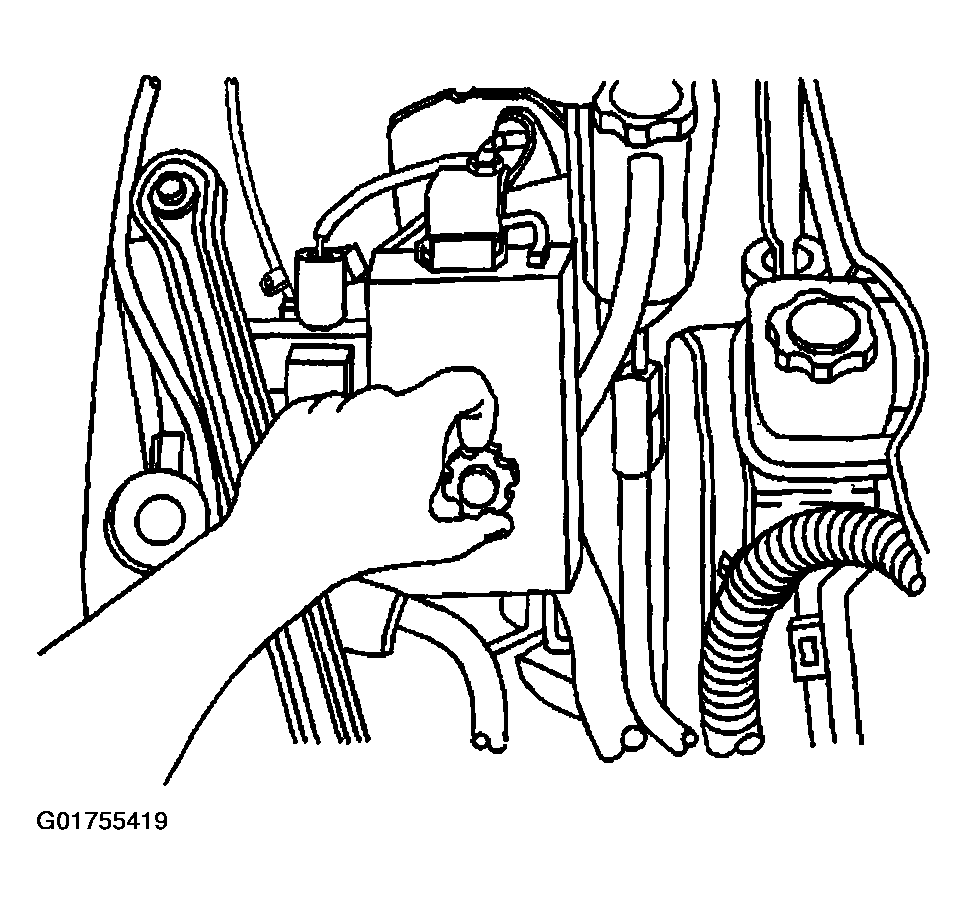

    3. Fig 1: Identifying Underhood Electrical Center Cover
    G01755419Courtesy of GENERAL MOTORS CORP.
  3. Using J 43244,  remove the horn relay (1) from the underhood electrical center.

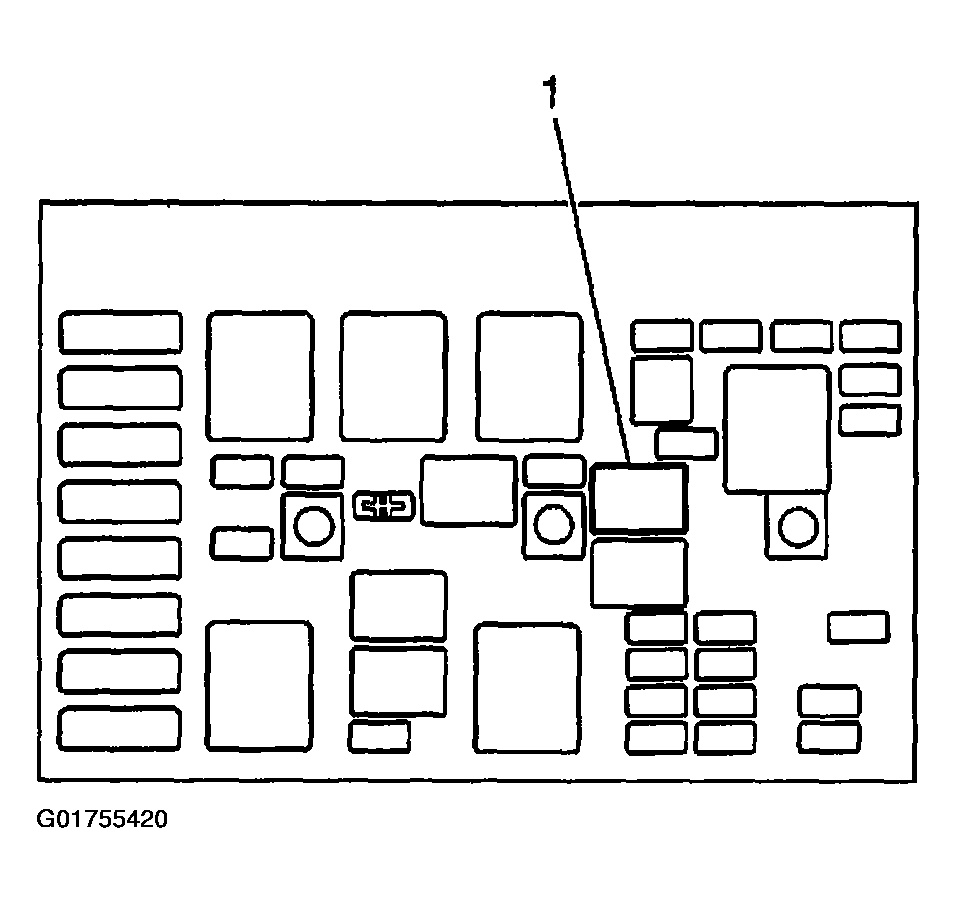

    4. Fig 2: Identifying Horn Relay
    G01755420Courtesy of GENERAL MOTORS CORP.
