Removal Procedure

If a speed sensor or a ring needs replacement, replace the entire hub and bearing assembly. Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR .

1. Raise and support the vehicle on a suitable hoist.
2. Remove the rear tire and wheel assembly.
3. Disconnect the electrical connector from the rear wheel speed sensor.

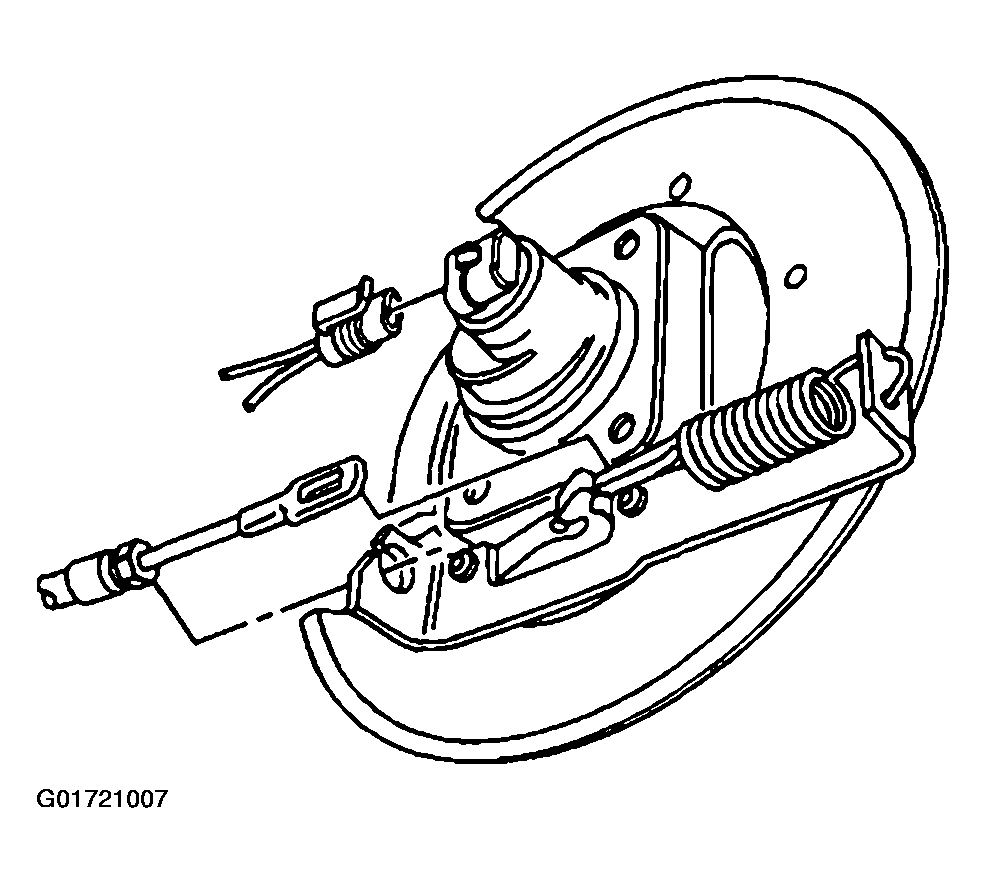

   Fig 1: Rear Wheel Speed Sensor Electrical Connector

   Courtesy of GENERAL MOTORS CORP.
4. Remove the hub and bearing assembly (1). Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR

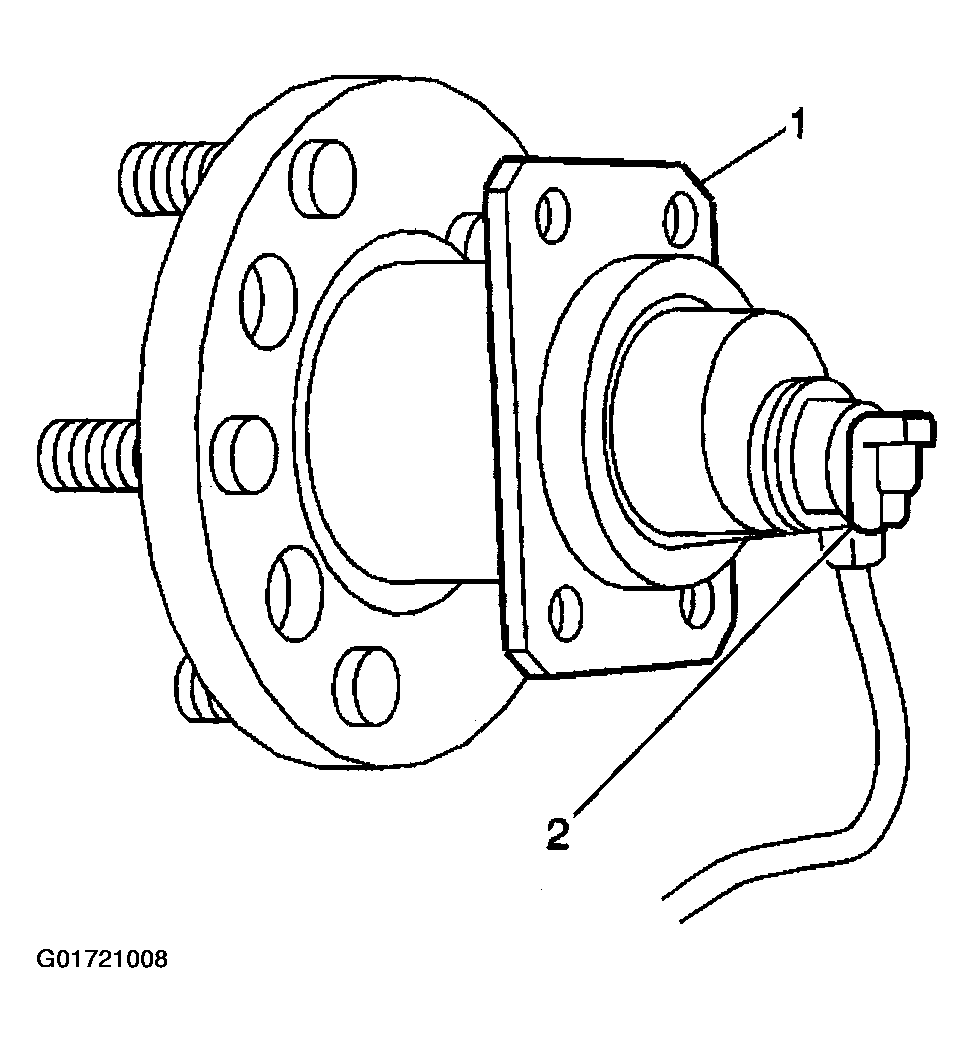

Fig 2: Wheel Hub/Bearing Assembly

Courtesy of GENERAL MOTORS CORP.
