Installation Procedure

  1. Install the hub and bearing assembly (1) to the vehicle. Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR .

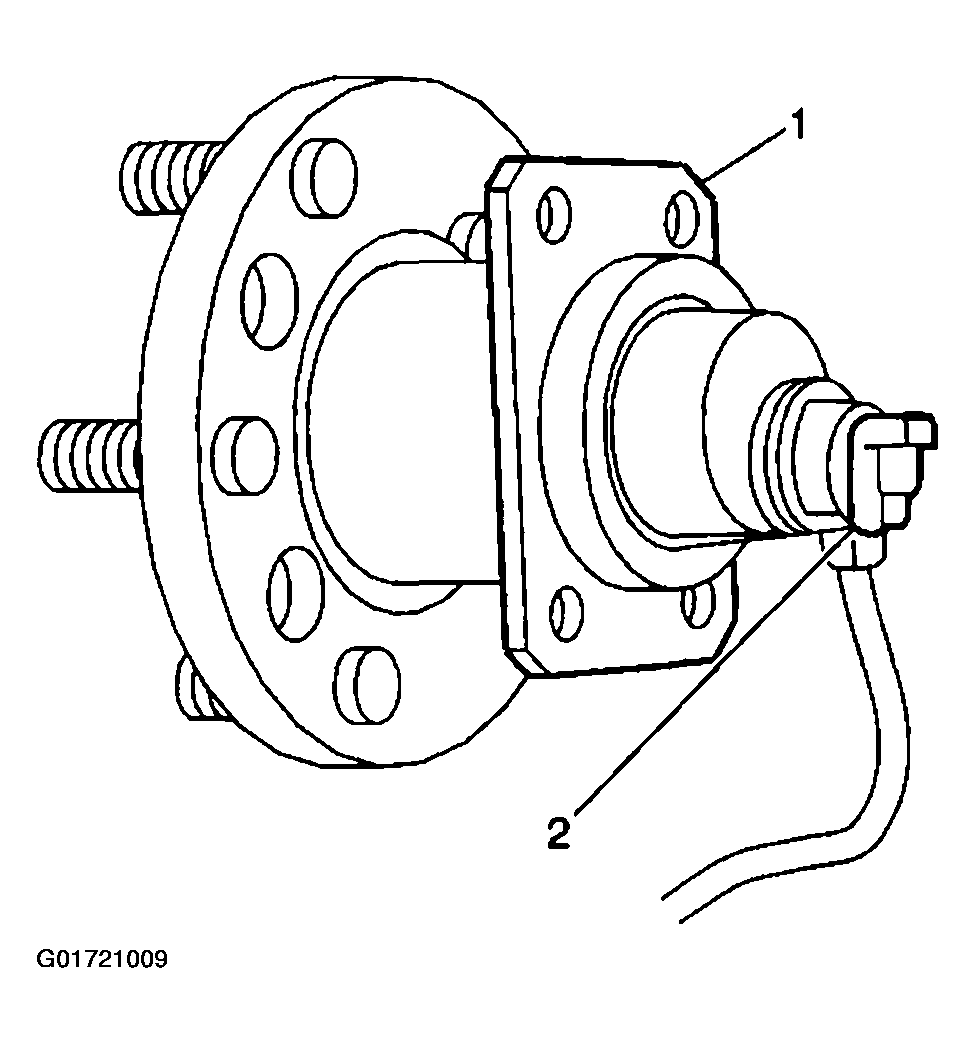

    Fig 1: Wheel Hub/Bearing Assembly
    G01721009Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the rear wheel speed sensor.

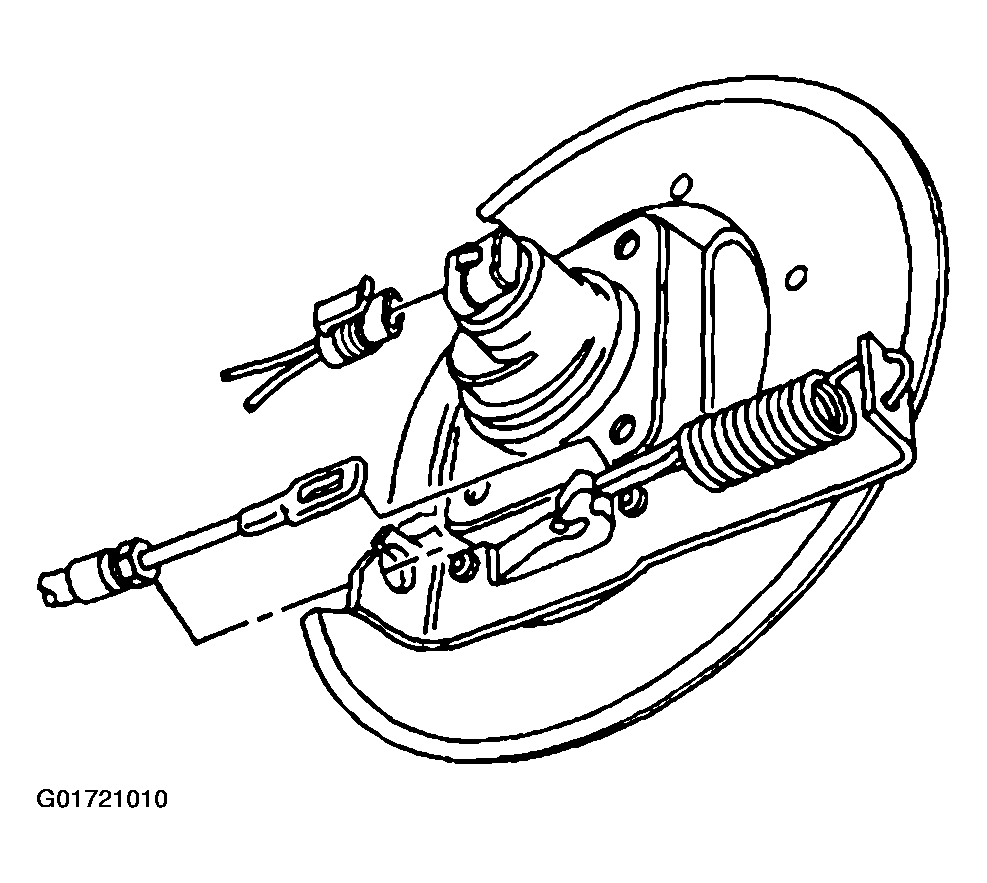

    Fig 2: Rear Wheel Speed Electrical Connector
    G01721010Courtesy of GENERAL MOTORS CORP.
  3. Install the wheel and tire assembly.
  4. Lower the vehicle.
  5. Turn the ignition switch to the ON position, with the engine off.
  6. Perform the Diagnostic System Check - ABS
