Installation Procedure

  1. Install the BPMV and EBCM assembly (2) to the BPMV mounting bracket (4).
  2. Install the BPMV bracket (4) to the strut tower.
  3. Install the one bolt and three nuts that attach the BPMV mounting bracket (4) to the strut tower.

    Tighten:

    • Tighten the lower two BPMV mounting bracket nuts (3) and bolt to 10 N.m (89 in lbs).
    • Tighten the top nut (1) for BPMV mounting bracket (4) to strut tower to 3 N.m (27 in lbs).

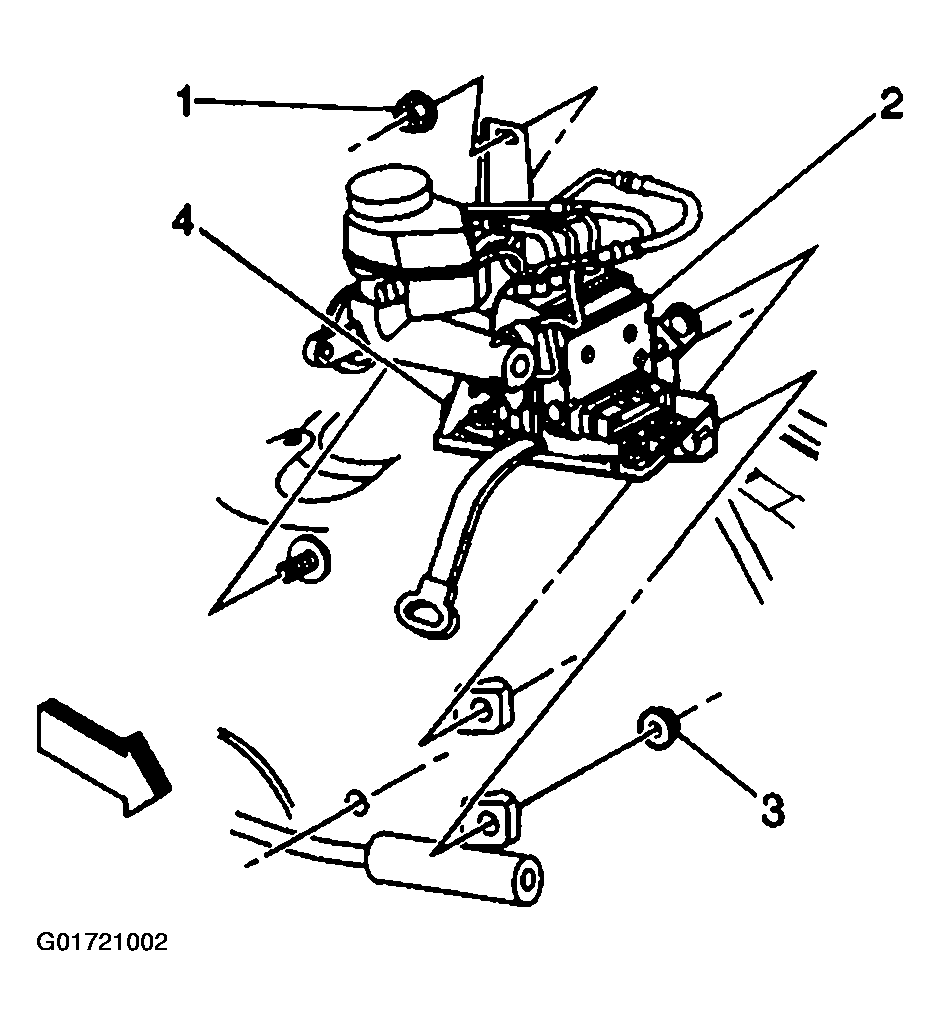

      • Fig 1: BPMV Mounting Bracket Nuts And Ground Strap
      G01721002Courtesy of GENERAL MOTORS CORP.

  4. Reconnect the ground strap between the EBCM assembly and the chassis.
  5. Turn the ignition switch to the RUN position, engine off.
  6. Perform the Diagnostic System Check - ABS .
