Scan Tool Data List
Fig 1: Body Control Module (BCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

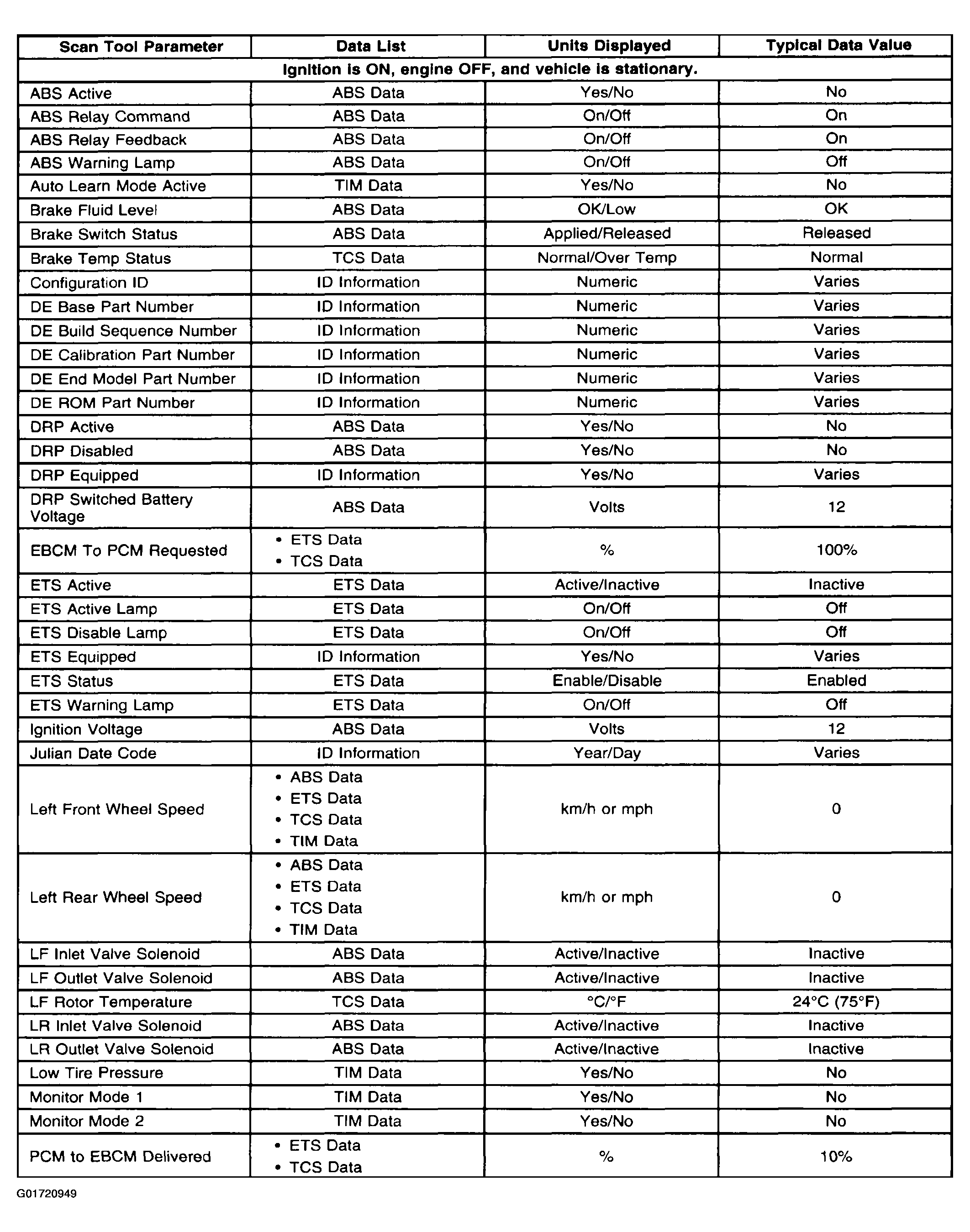

Fig 2: Electronic Brake Control Module (EBCM) Scan Tool Data List (1 of 2)
Courtesy of GENERAL MOTORS CORP.

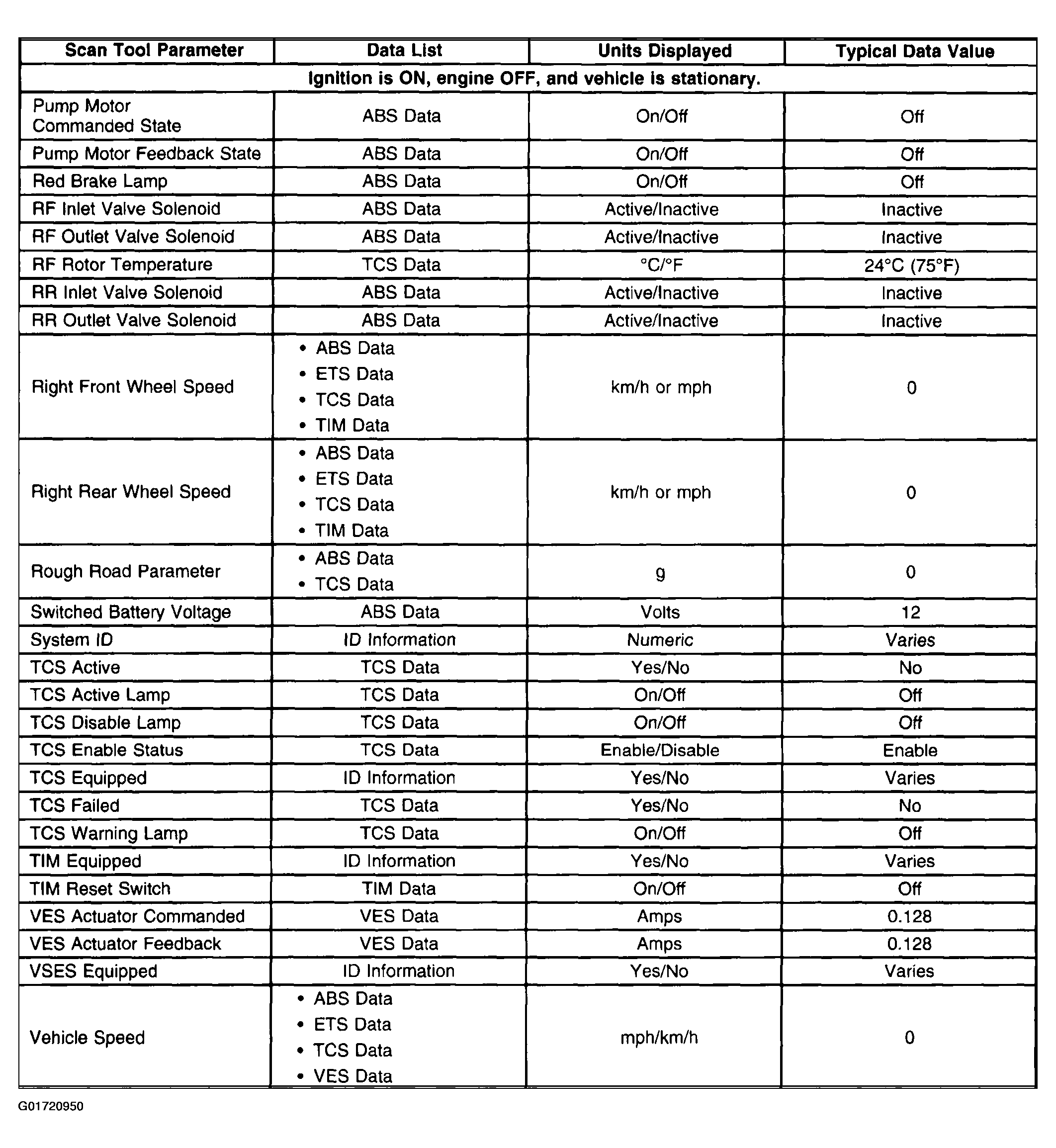

Fig 3: Electronic Brake Control Module (EBCM) Scan Tool Data List (2 of 2)
Courtesy of GENERAL MOTORS CORP.

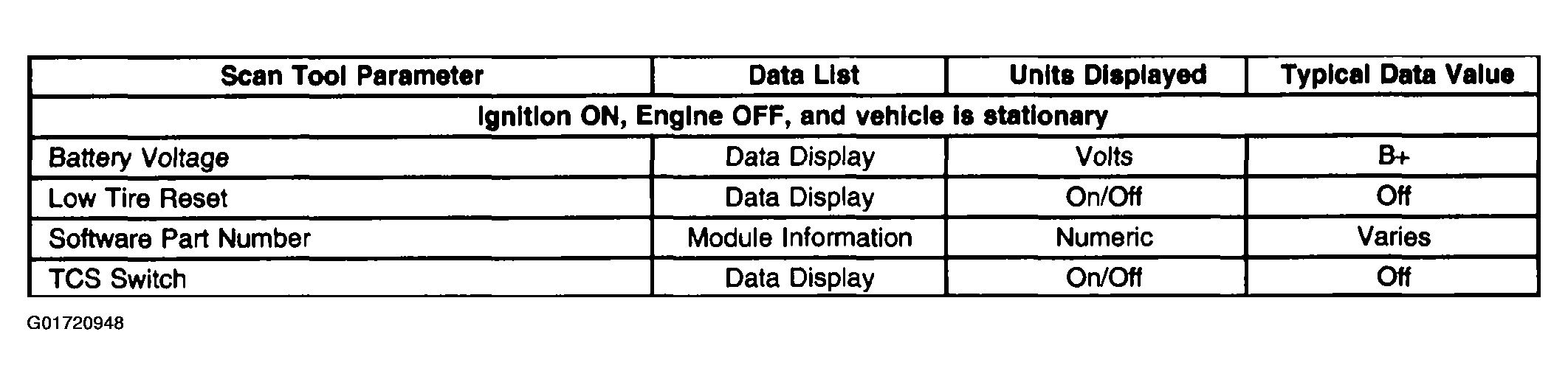

Fig 4: Instrument Panel Cluster (IPC) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.

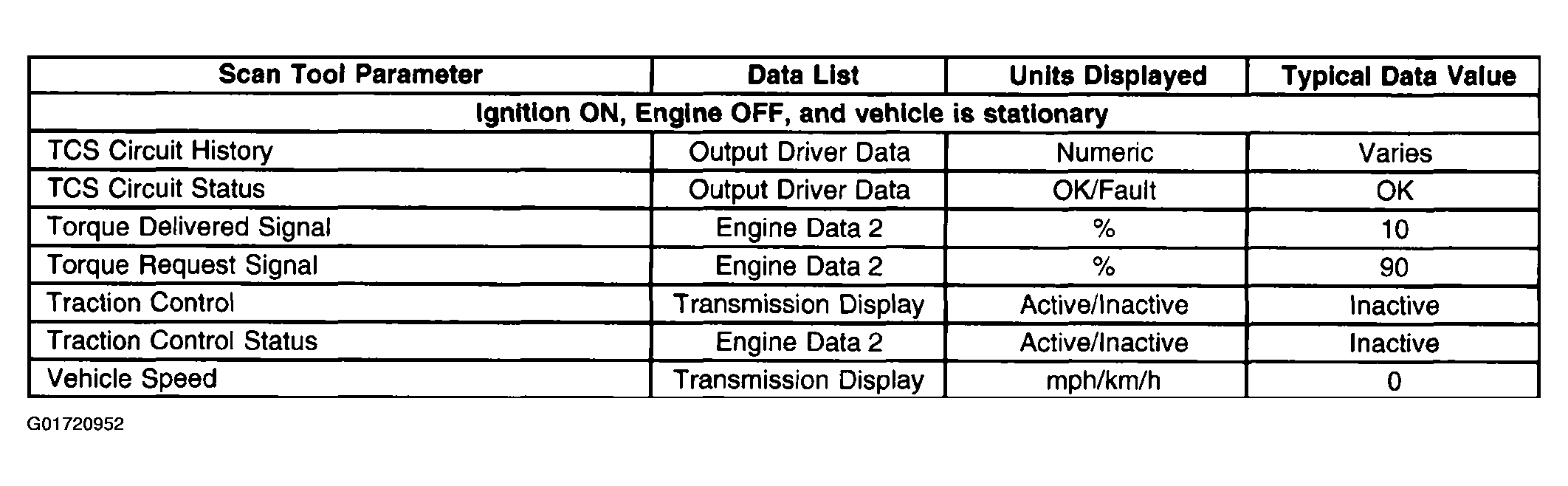

Fig 5: Powertrain Control Module (PCM) Scan Tool Data List
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
