Removal Procedure

  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Remove the window to regulator bolts (2).

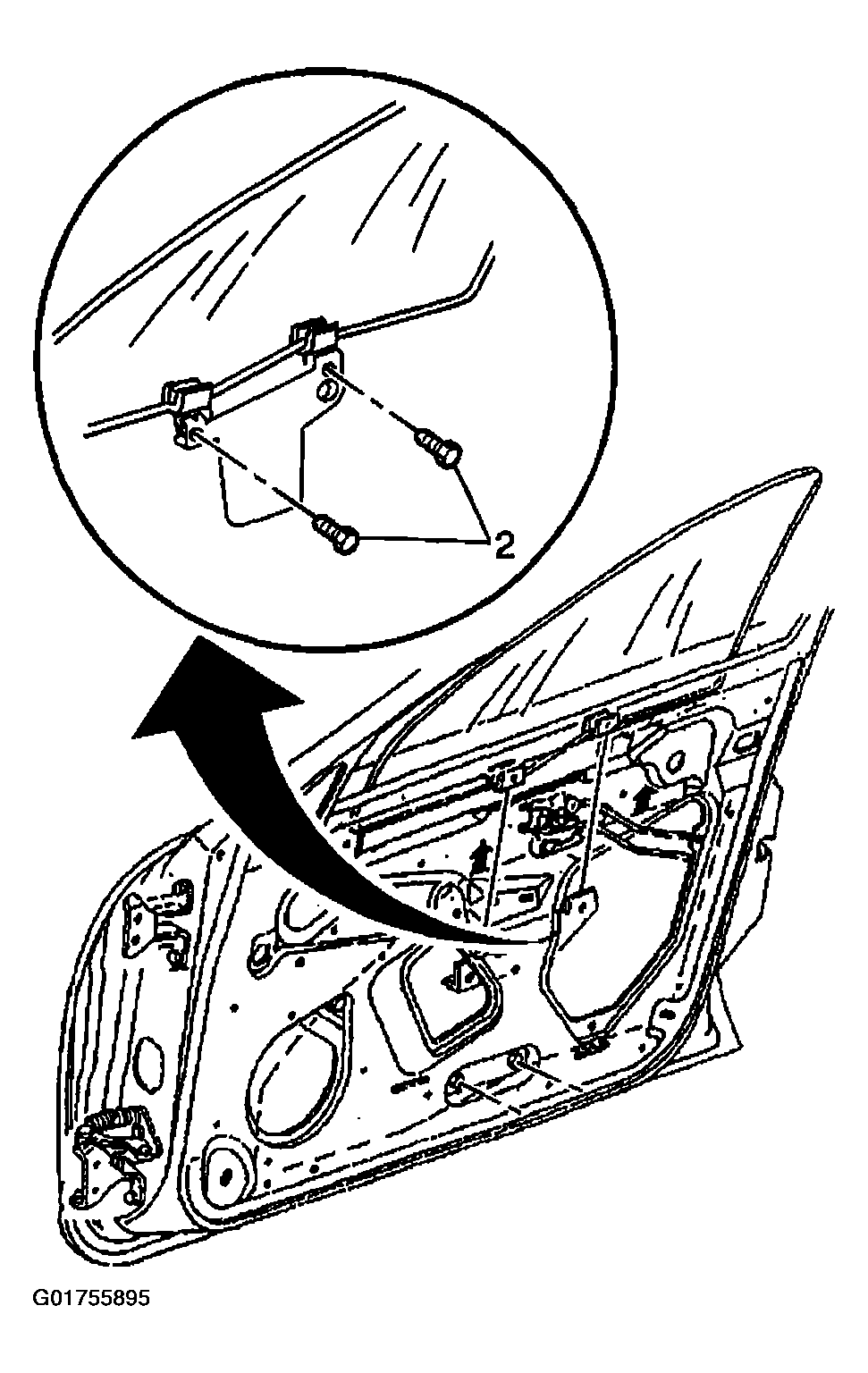

    Fig 1: Identifying Window-To-Regulator Bolts
    G01755895Courtesy of GENERAL MOTORS CORP.
  5. Remove the window from the door.

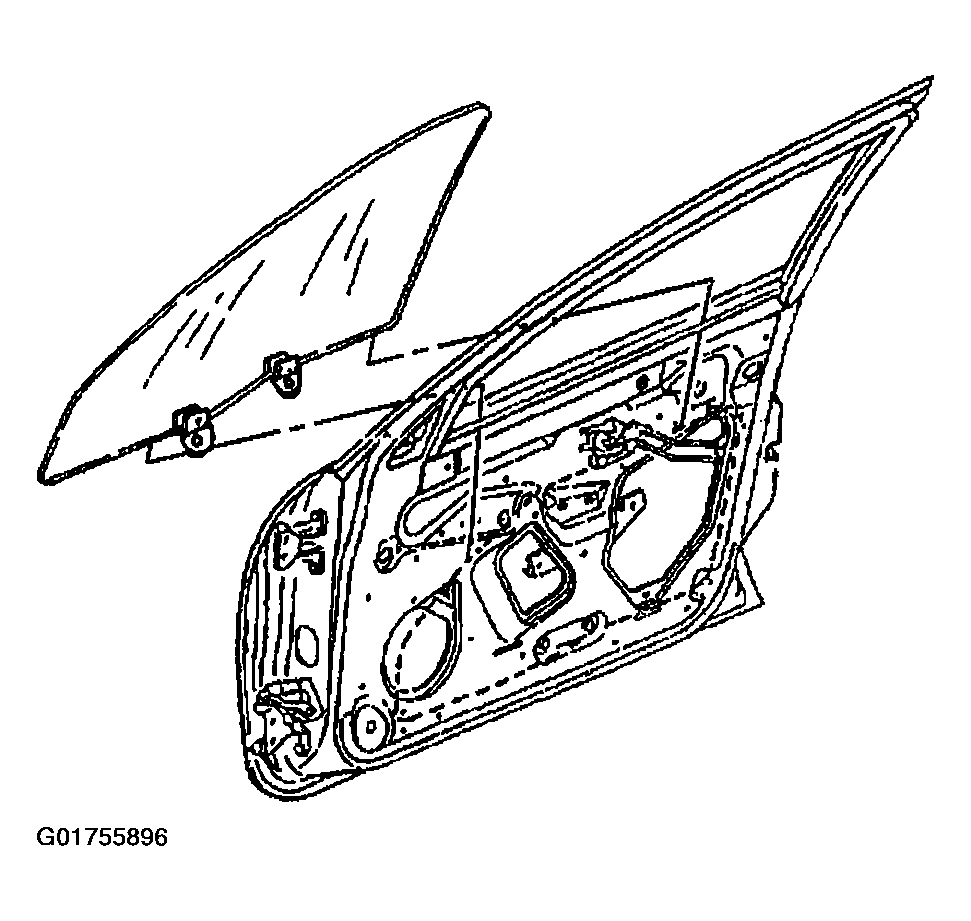

    Fig 2: Identifying Door Window
    G01755896Courtesy of GENERAL MOTORS CORP.
