Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connector to the mirror wire harness.
    CAUTION: Refer to EYE PROTECTION CAUTION .
  3. Remove the mirror face. Refer to Mirror Face Replacement .
  4. Remove the screws from the mirror motor.

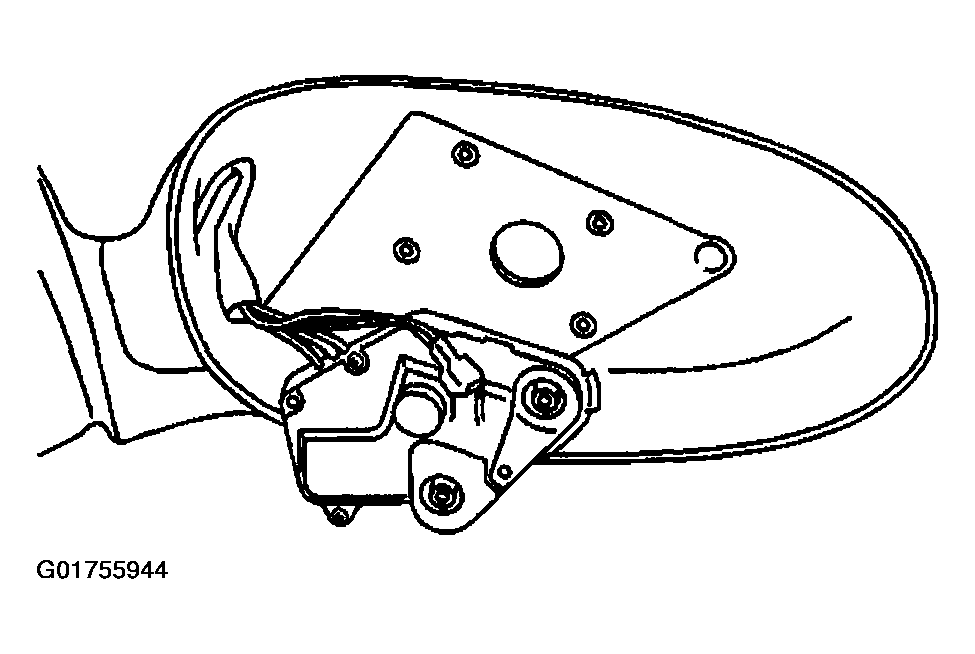

    5. Fig 1: Identifying Power Mirror Motor
    G01755944Courtesy of GENERAL MOTORS CORP.
  5. Pull the motor electrical harness through the mirror housing.
  6. Remove the motor from the mirror housing.
