Heated Seat Control Module Connector End View - Front Passenger

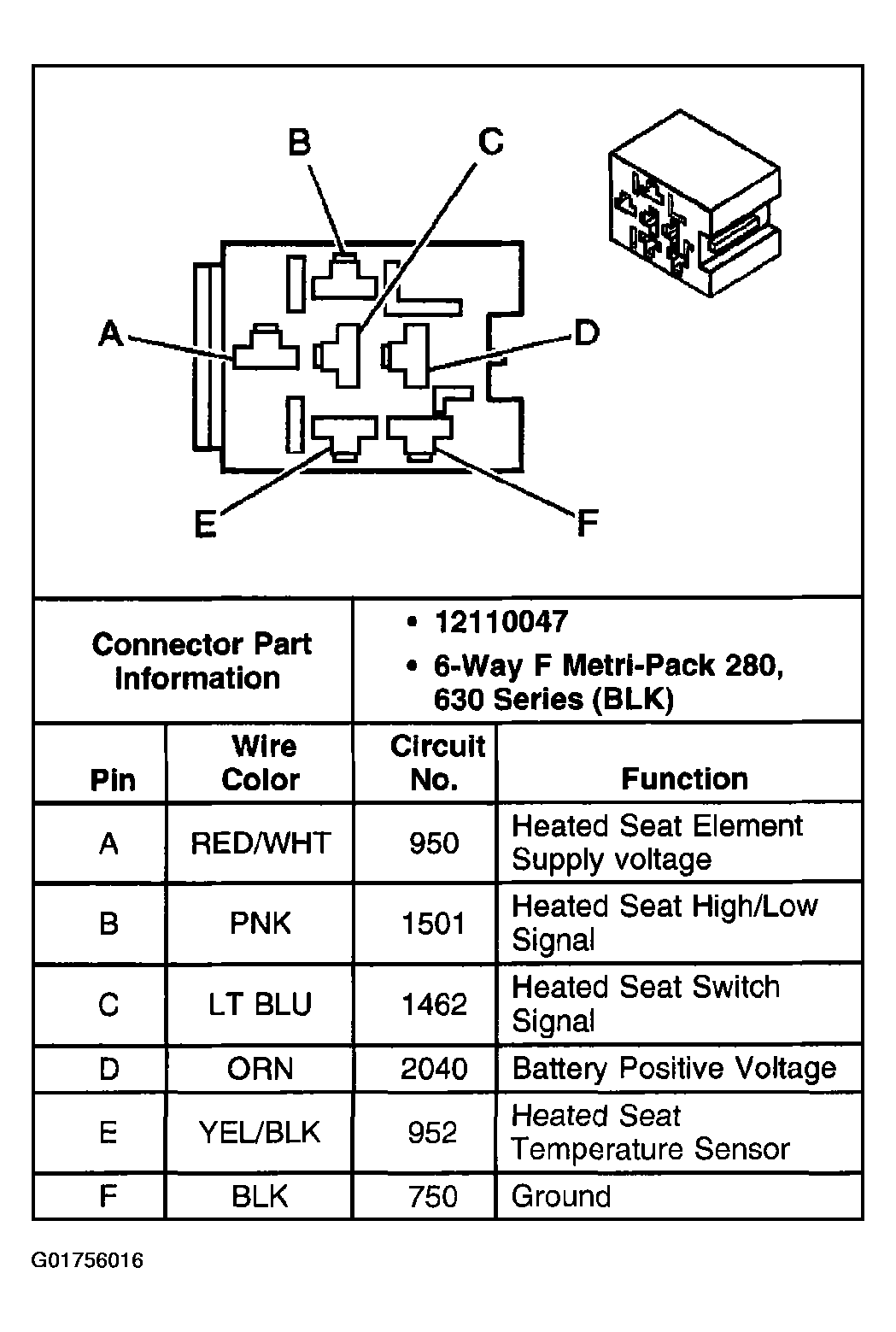

Fig 1: Heated Seat Control Module - Front Passenger

G01756016

Courtesy of GENERAL MOTORS CORP.
