Buick
>>
2002
>>
Century Custom
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Lighting Systems Connector End Views
>>
Turn Signal/Hazard Flasher Module Connector End View
Turn Signal/Hazard Flasher Module Connector End View

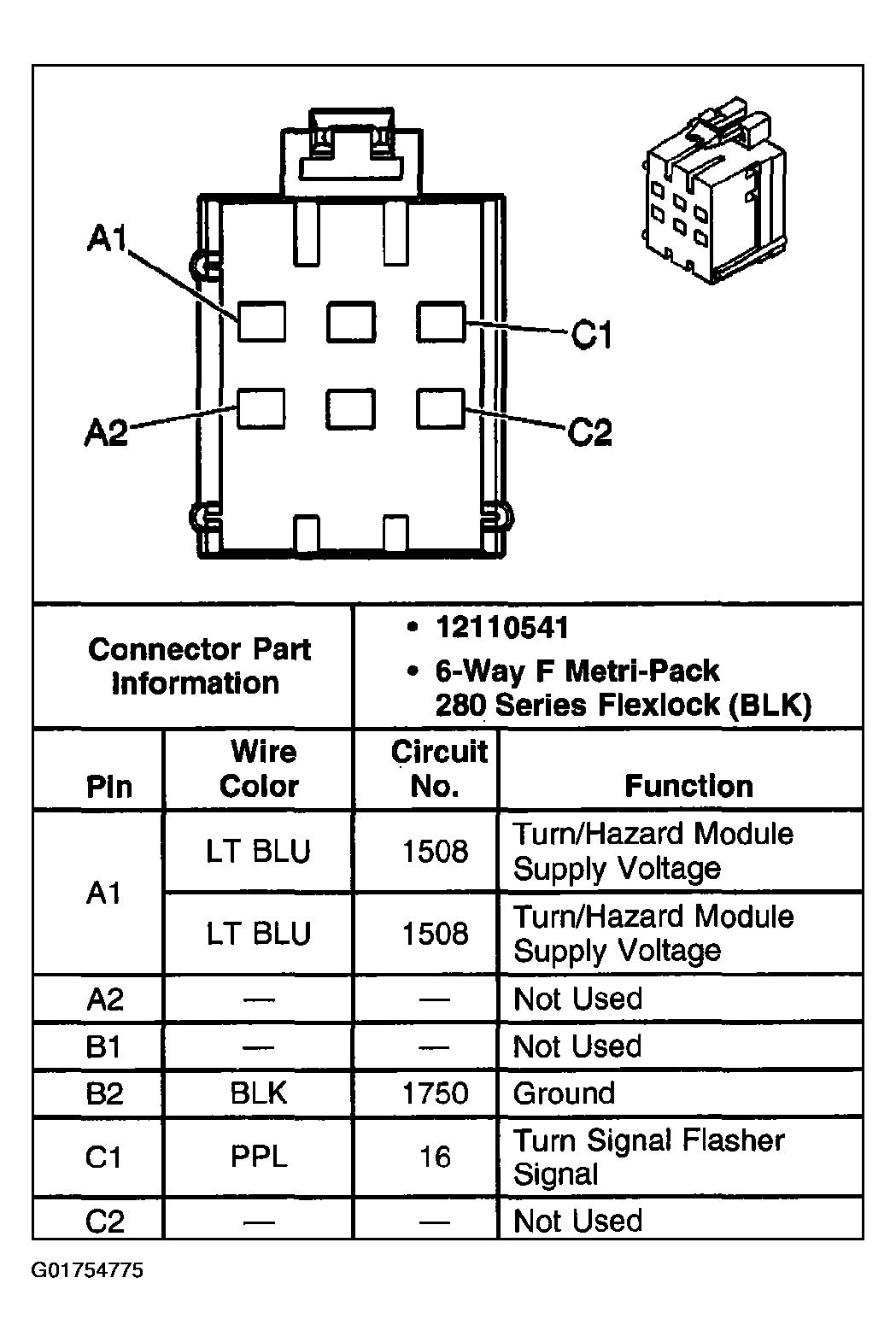

Fig 1: Turn Signal/Hazard Flasher Module
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
