I/P Compartment Lamp/Switch Connector End View

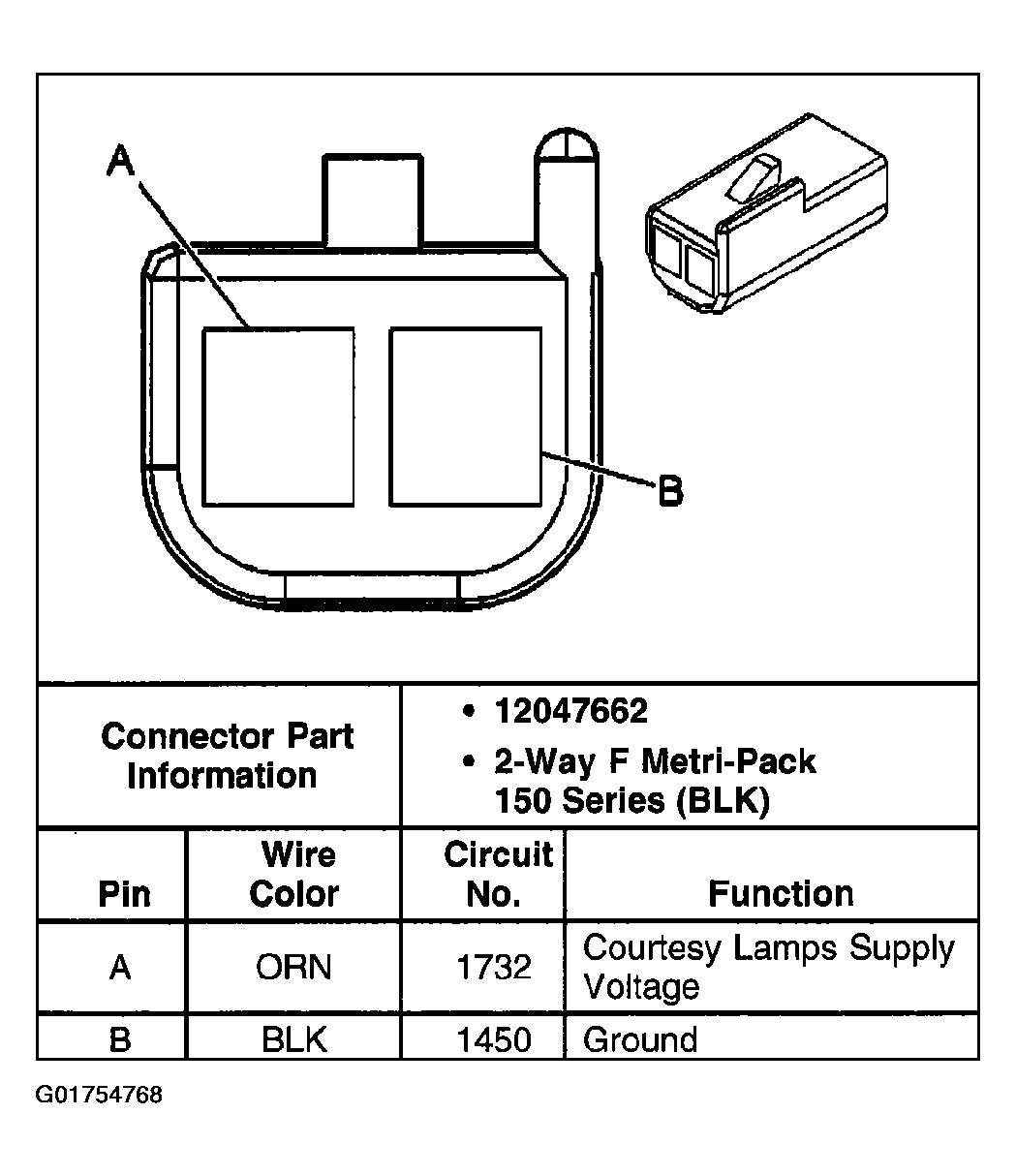

Fig 1: I/P Compartment Lamp/Switch

G01754768

Courtesy of GENERAL MOTORS CORP.
