Ambient Light Sensor Connector End View

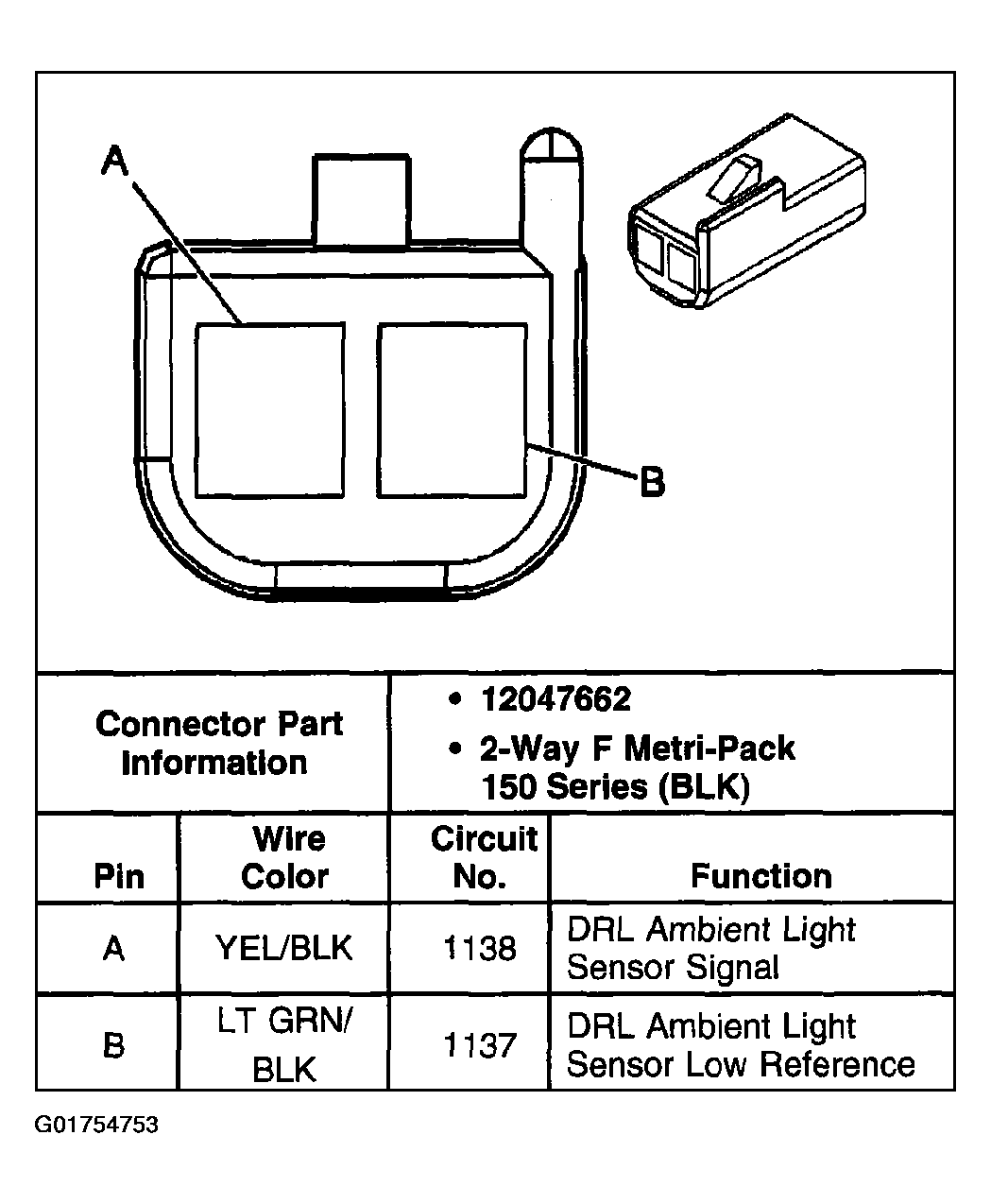

Fig 1: Ambient Light Sensor

G01754753

Courtesy of GENERAL MOTORS CORP.
