Coolant Level Switch Connector End View

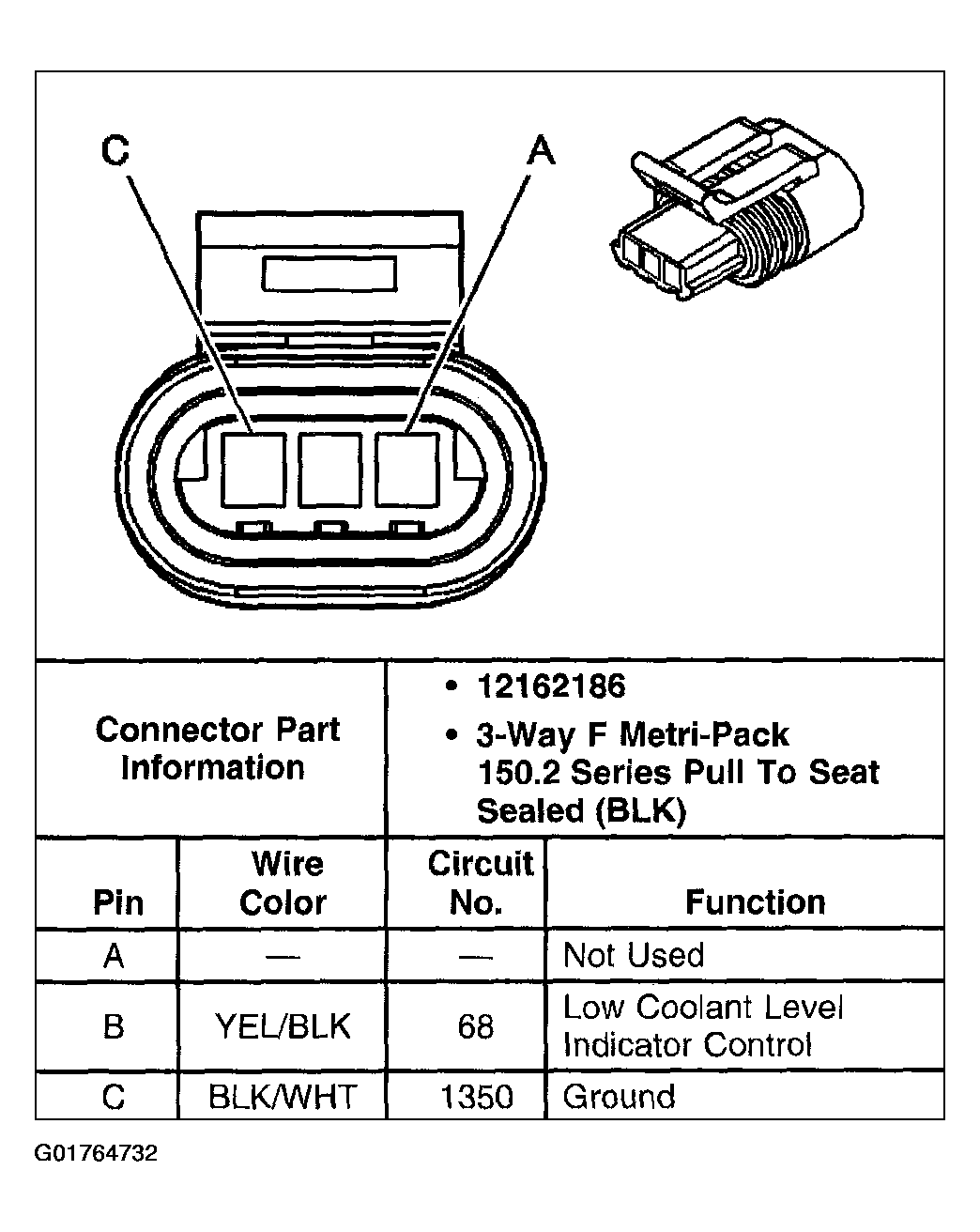

Fig 1: Coolant Level Switch

G01764732

Courtesy of GENERAL MOTORS CORP.
