Home >> Buick >> 2002 >> Century Custom >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> ABS Connector End Views >> Electronic Brake Control Module (EBCM) Connector End View (2 of 2)

Electronic Brake Control Module (EBCM) Connector End View (2 of 2)

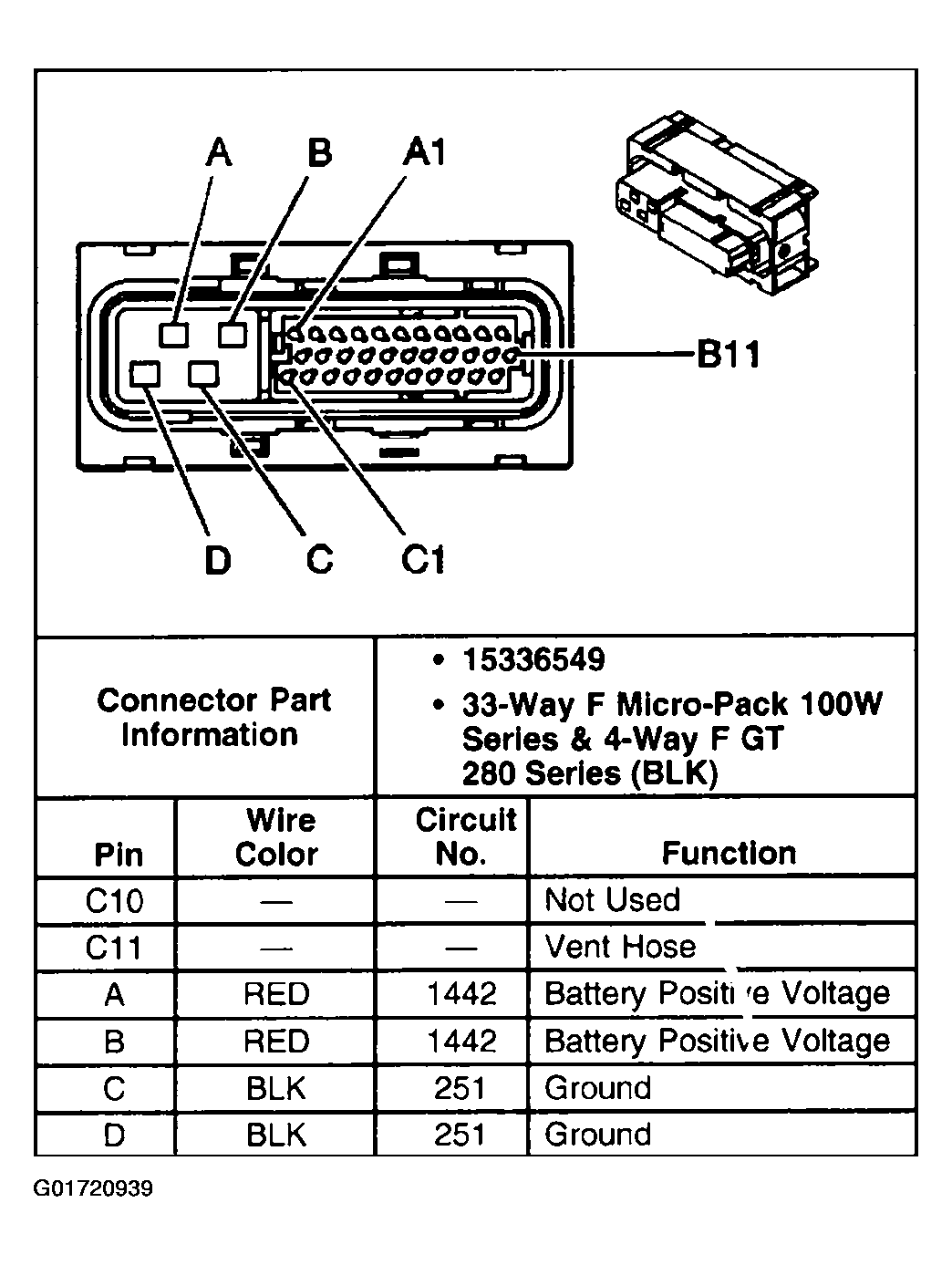

Fig 1: Electronic Brake Control Module (EBCM) (2 of 2)

G01720939

Courtesy of GENERAL MOTORS CORP.
