Power Door Systems Component Views
Power Door Systems Component Views

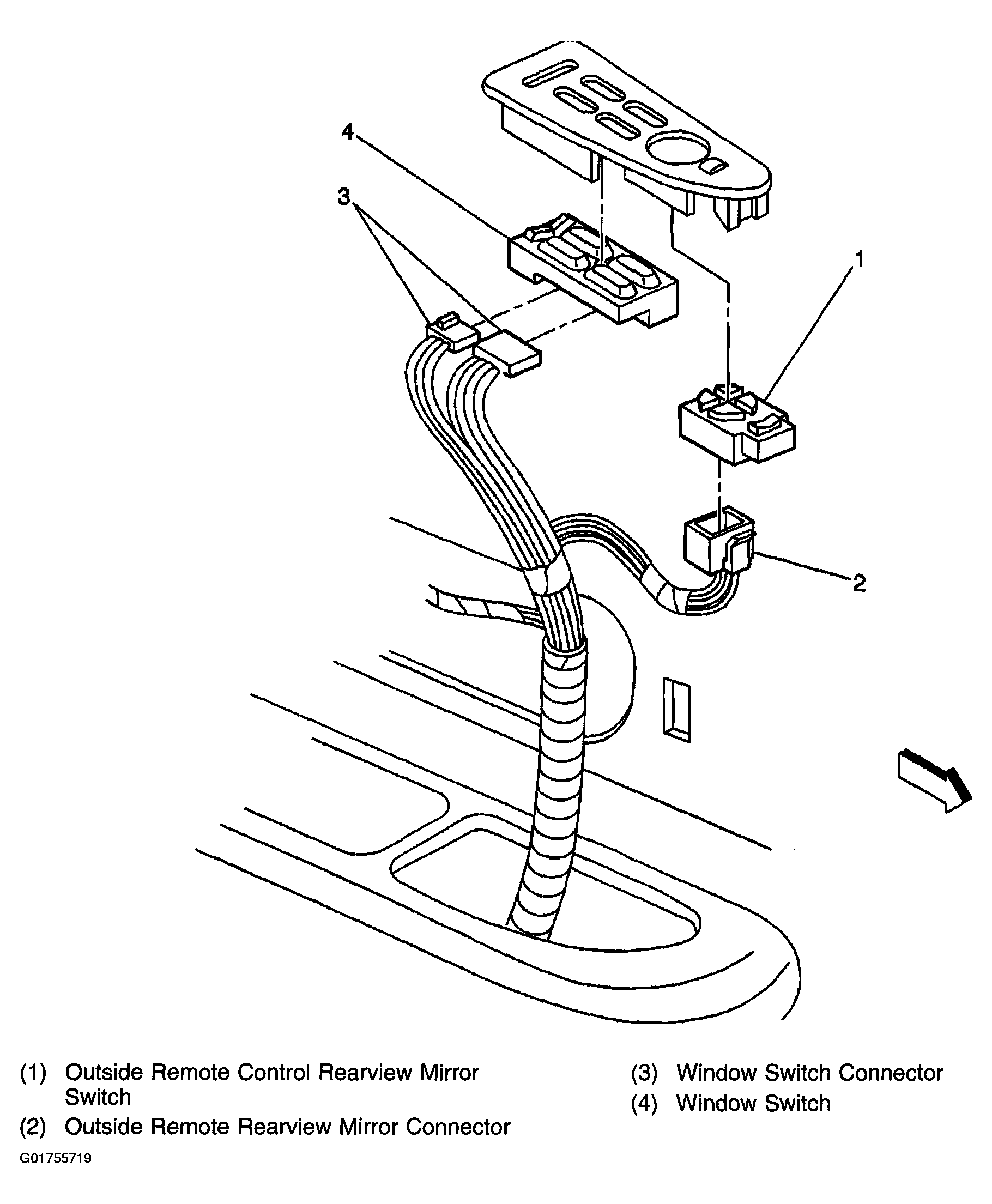

Fig 1: Identifying Center of Left Front Door Trim Panel Component View
Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Inside Left Door Component View (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

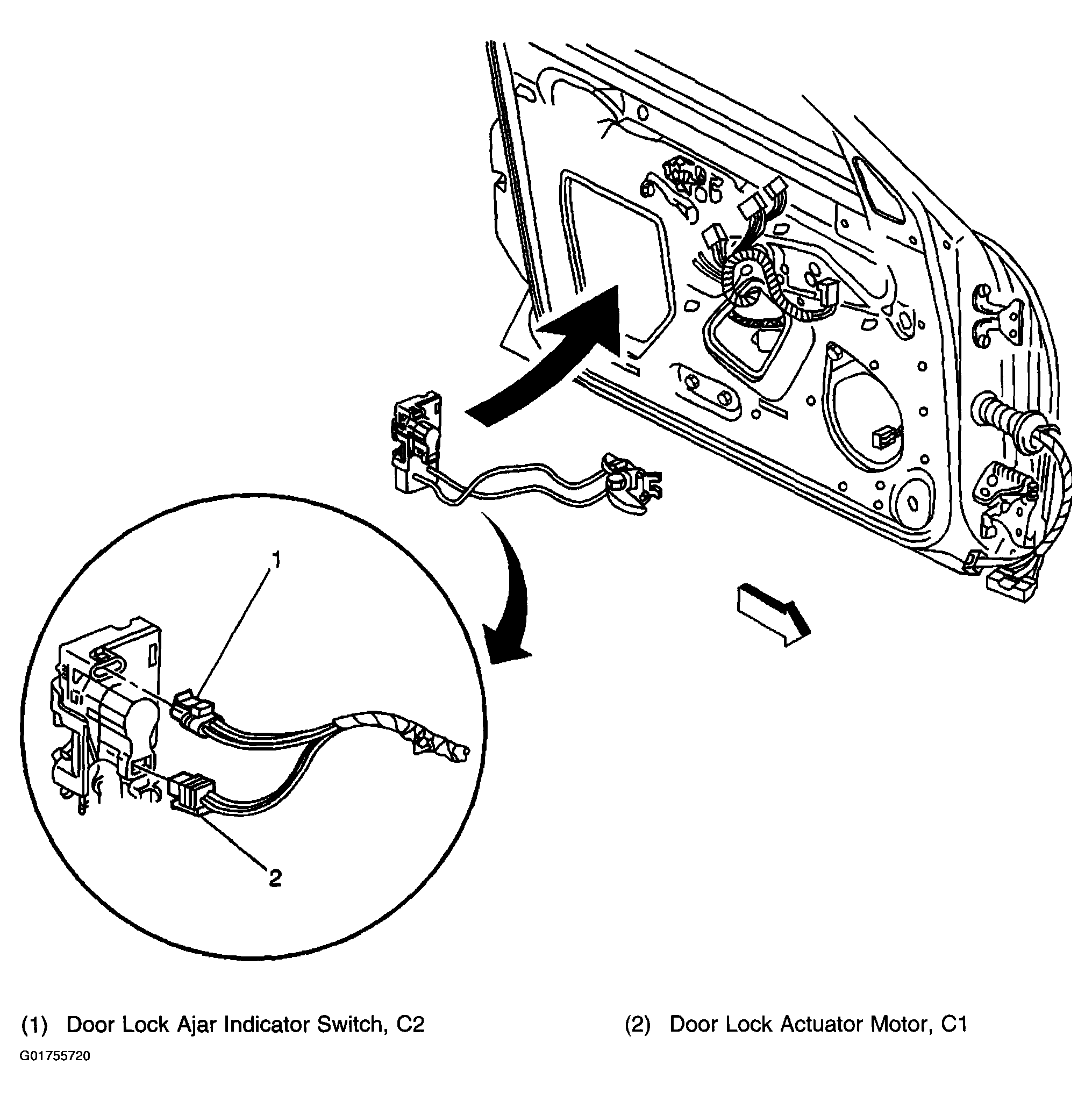

Fig 3: Identifying Inside Left Door Component View (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 4: Identifying Front of Drivers Door Component View
Courtesy of GENERAL MOTORS CORP.
Fig 5: Identifying Right Rear Door Component View
Courtesy of GENERAL MOTORS CORP.

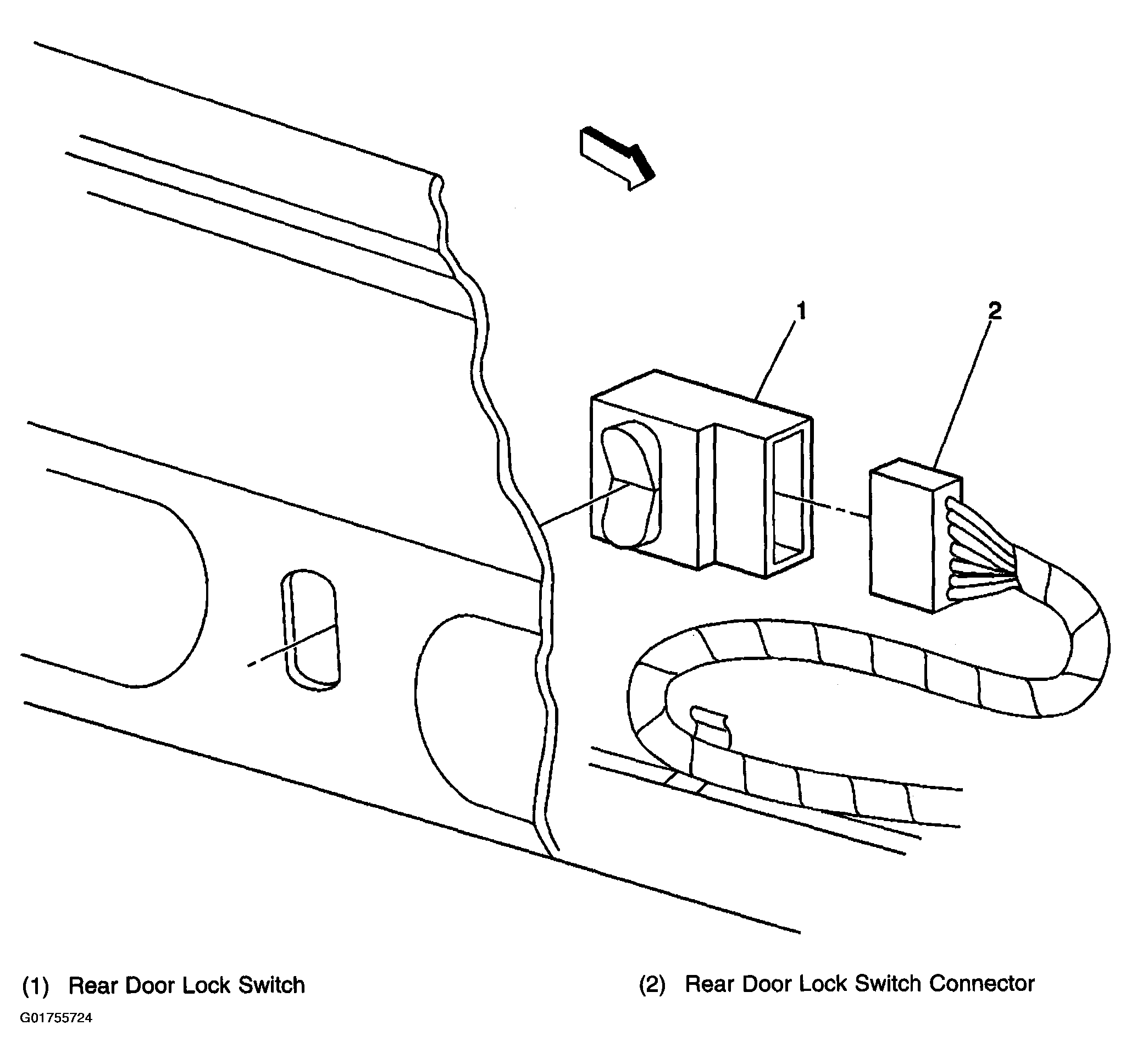

Fig 6: Identifying Rear Door Panel Component View
Courtesy of GENERAL MOTORS CORP.
