Steering Column Disassembled View (Column Shift)

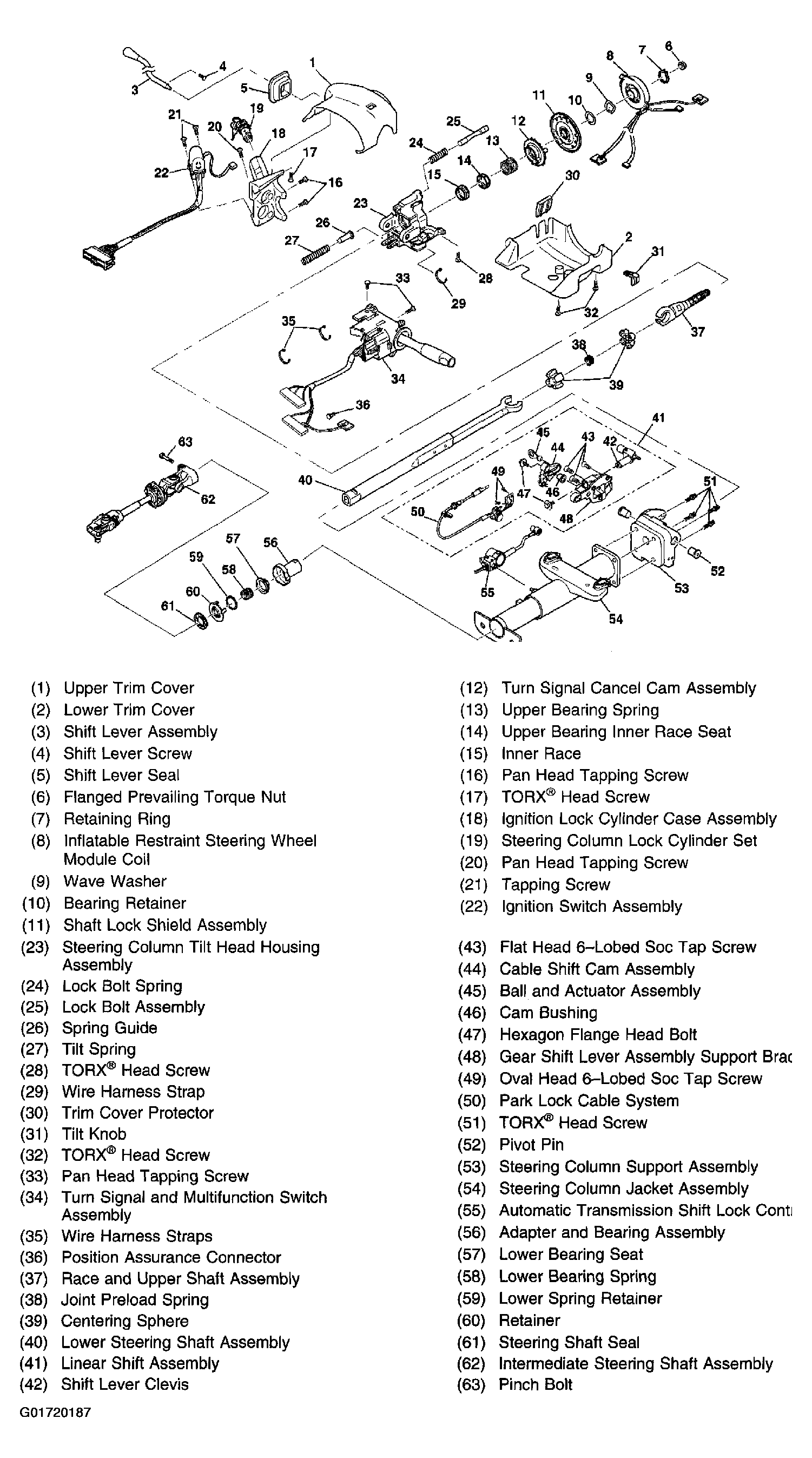

Fig 1: Tilt Steering Column, Column Shift

G01720187

Courtesy of GENERAL MOTORS CORP.
