Component Locations
NOTE:

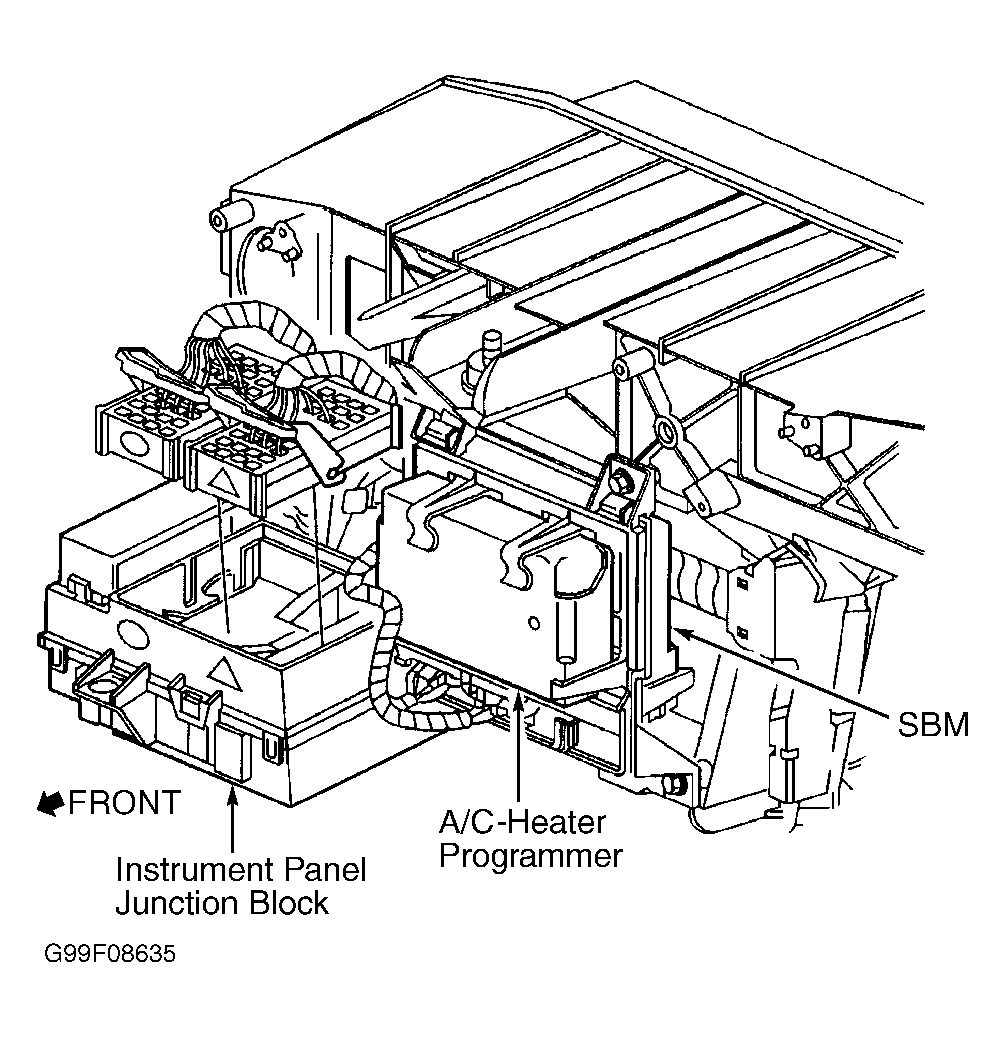

For Body Control Module (BCM) location, refer to illustration. See Fig 1
. For data link connector location, refer to illustration. See Fig 2
.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Back-Up Light Relay | Left Side Of Instrument Panel, Mounted On Multi-Purpose Bracket, Near Body Control Module |
| Body Control Module | Behind Left Side Of Instrument Panel, To Left Of Steering Column |
| Brake Fluid Level Switch | On Right Side Of Brake Fluid Reservoir |
| Cruise Control Module | Left Side Of Engine Compartment, On Shock Tower |
| Deck Lid Release Relay | Behind Glove Box, Mounted To Cross-Car Beam |
| Door Ajar Switch | Rear Of Door Panel |
| Door Lock Actuator Motor | Rear Of Door Panel |
| Door Lock Relay | Behind Glove Box, Mounted To Cross-Car Beam |
| Door Lock Switch | Center Of Door Panel |
| Electronic Brake Control Module | Left Rear Of Engine Compartment, Near Left Strut Tower |
| Electronic Traction Control Switch | Part Of Seat Heater Switch, Located On Center Console, Behind Transmission Control Lever Handle |
| Foglight & Driver Information Display Switch | On Left Side Of Instrument Panel, To Left Of Steering Column |
| Headlight Switch | Upper Left Side Of Instrument Panel |
| Heater-A/C Control Module | Center Of Instrument Panel |
| Ignition Key Alarm Switch | Inside Steering Column, Part Of Ignition Key Cylinder |
| Instrument Panel Cluster | Top Of Instrument Panel, Above Steering Column |
| Instrument Panel Fuse Block | Behind Right Side Instrument Panel Endcap |
| Powertrain Control Module | Front Left Corner Of Engine Compartment, Inside Air Cleaner |
| Remote Control Door Lock Receiver | Behind Instrument Panel, Above Right Side Of Instrument Cluster |
| Retained Accessory Power Relay | In Rear Fuse Block |
| Supplemental Inflatable Restraint System Sensing & Diagnostic Module | Under Right Front Seat, Under Carpet |
| Underhood Fuse Block | Mounted To Right Front Strut Tower |
| Vehicle Interface Unit | In Trunk, Mounted To Rear Of Left Rear Wheelwell |
