Component Locations

COMPONENT LOCATIONS

Component Location
Dash Integration Module Right Side Of Instrument Panel, Near Blower Motor
Horn Assembly Behind Left Front Bumper Fascia
Horn Relay In Underhood Fuse Block
Underhood Fuse Block Right Side Of Engine Compartment, Front Of Coolant Reservoir

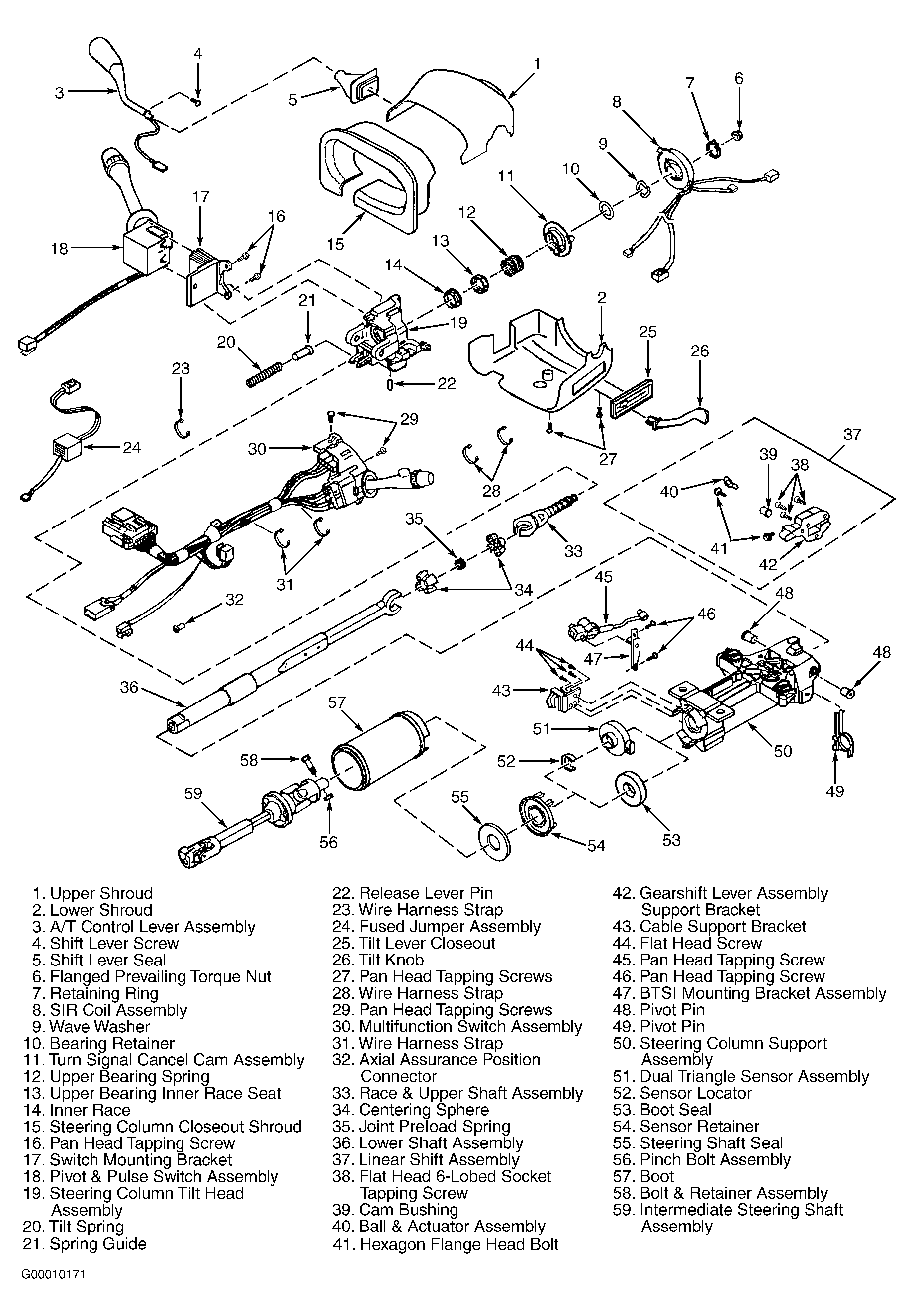

Fig 1: Exploded View Of Column Shift Steering Column Components (Bonneville)
G00010171Courtesy of GENERAL MOTORS CORP.

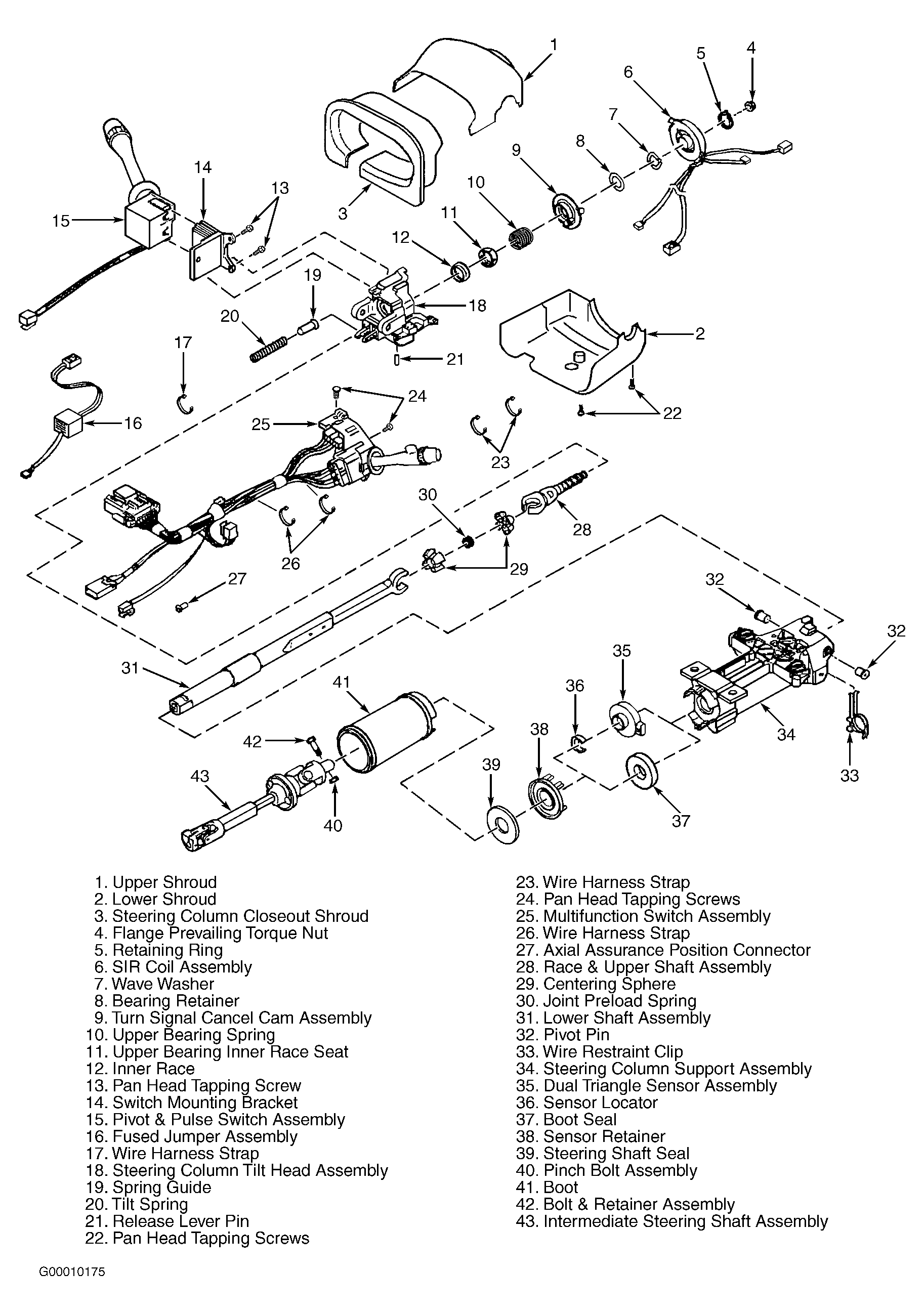

Fig 2: Exploded View Of Floor Shift Steering Column Components (Bonneville)
G00010175Courtesy of GENERAL MOTORS CORP.

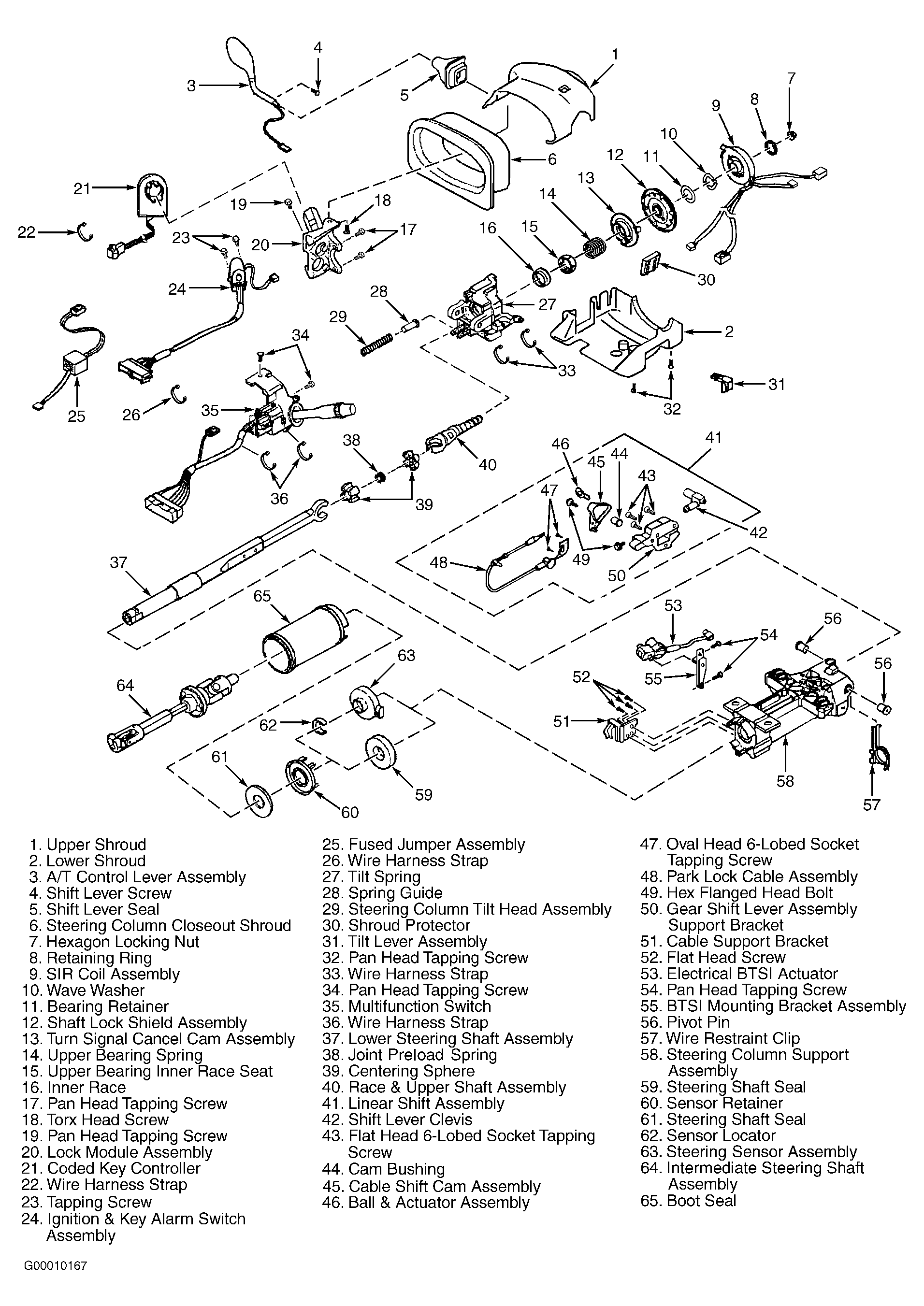

Fig 3: Exploded View Of Steering Column Components (LeSabre)
G00010167Courtesy of GENERAL MOTORS CORP.
