Console Tray Insert: Installation

  1. Connect the electrical connector. See Fig 1 .
  2. Install the front console storage compartment into the IP and console.
  3. Install the IP cluster trim plate bezel. See CLUSTER TRIM PLATE BEZEL  .

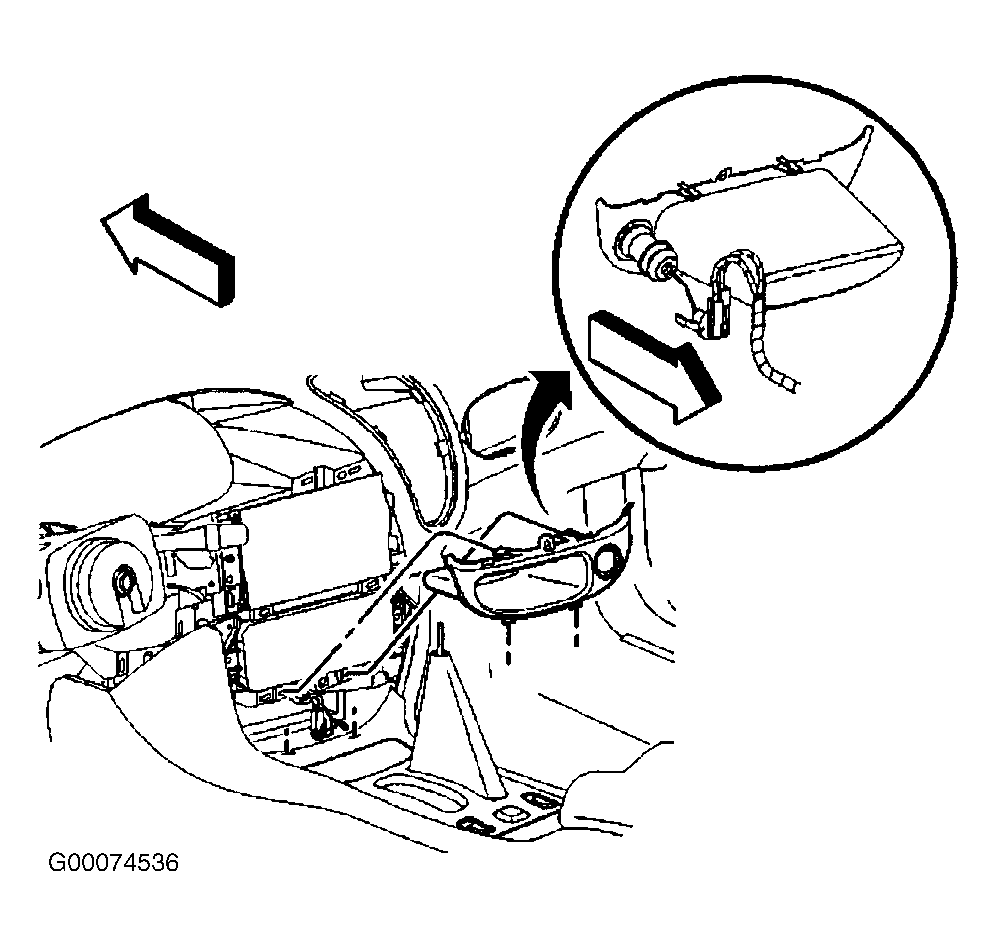

Fig 1: Removing & Installing Console Tray Insert
G00074536Courtesy of GENERAL MOTORS CORP.
