Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the water shield and shaft seal onto the wiper motor.
  2. Position the wiper motor to the wiper drive system module.
    NOTE: Refer to FASTENER NOTICE
  3. Install the wiper motor screws.

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

  4. Install the wiper drive system module. Refer to Wiper Drive System Module Replacement
  5. Install the wiper motor crank arm. Refer to Wiper Motor Crank Arm Replacement
  6. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT

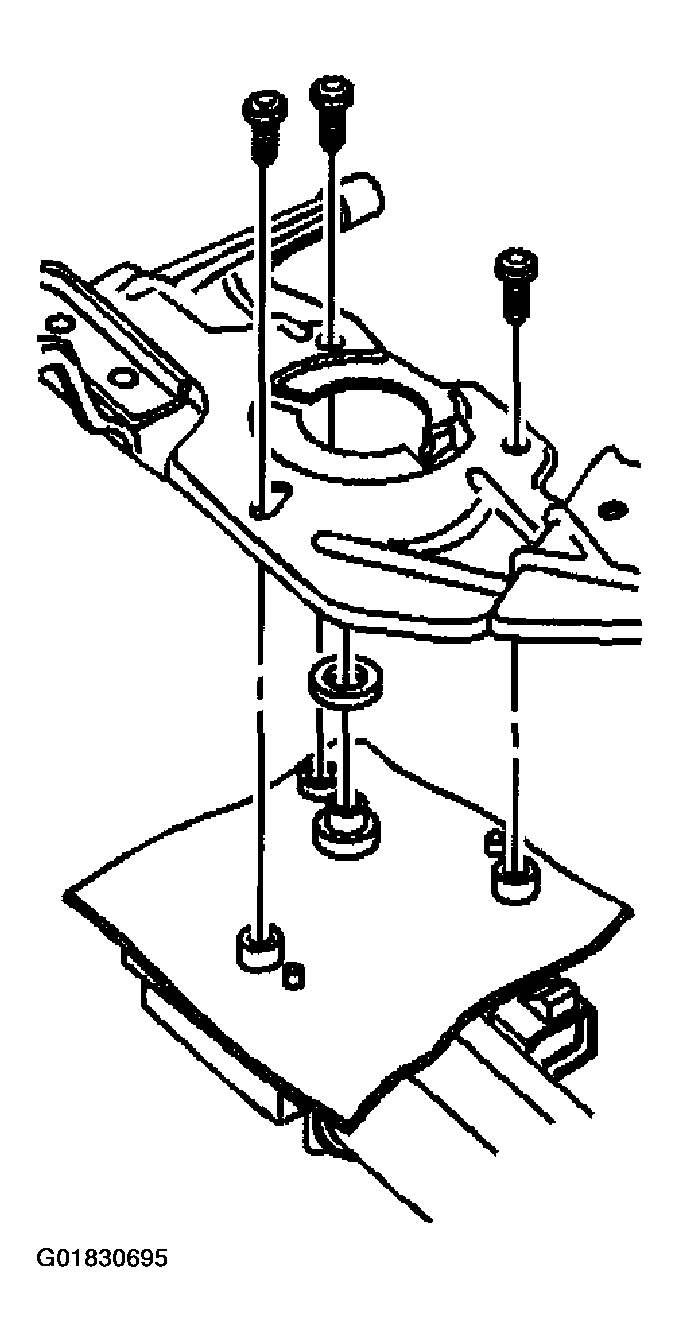

    Fig 1: Installing Wiper Motor, Shaft Seal, Water Shield & Wiper Motor Screws
    G01830695Courtesy of GENERAL MOTORS CORP.
