Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

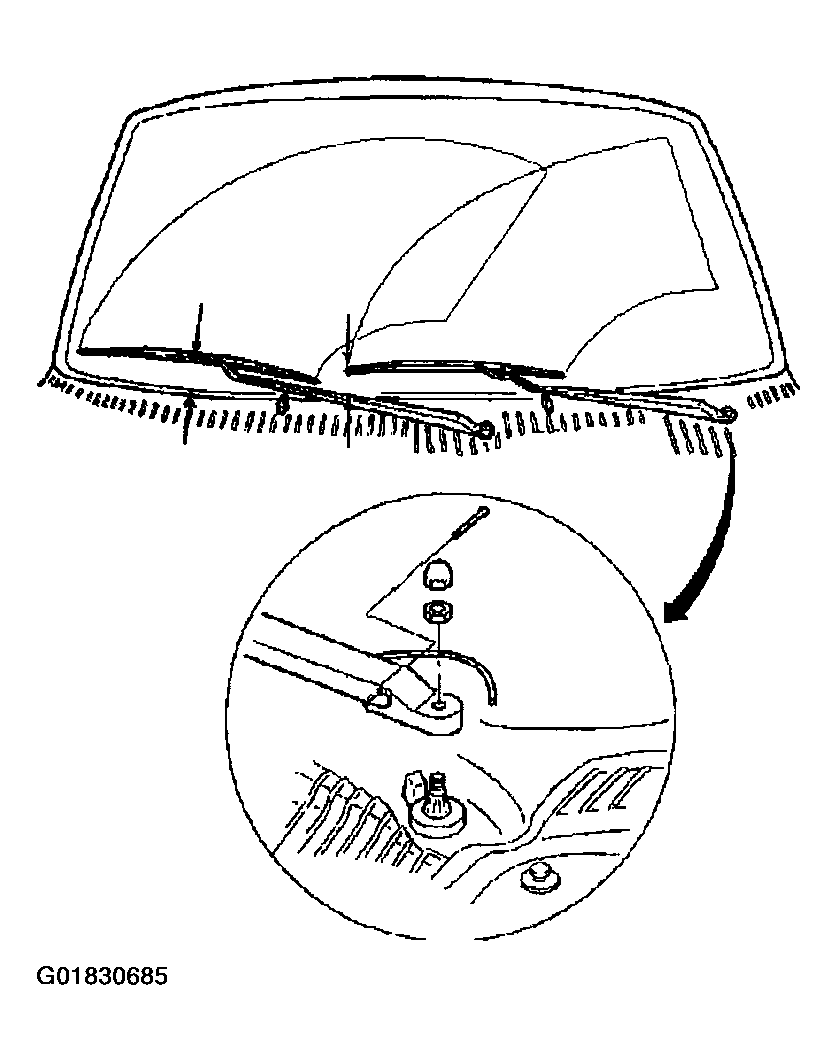

- Install the wiper arms onto the wiper transmission.
- Hold the measuring device at a 90 degree angle to the wiper blade while maintaining the following distances:
- Right arm: 97-107 mm (3.82-4.21 in) from the end of the wiper arm to the air inlet screen.
- Left arm: 125-147 mm (4.92-5.78 in) from the wiper blade tip to the air inlet screen.
NOTE: Refer to FASTENER NOTICE - Install the wiper arm nut.
Tighten
Tighten the nut to 30 N.m (22 lb ft).
- Install the wiper arm nut cover.
- Connect the washer hose to the wiper arm.
- Operate the windshield wipers and inspect for proper operation.
