Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer solvent container to the right frame rail.
    NOTE: Refer to FASTENER NOTICE
  2. Install the washer solvent container bracket screw.

    Tighten

    Tighten the screw to 10 N.m (89 lb in).

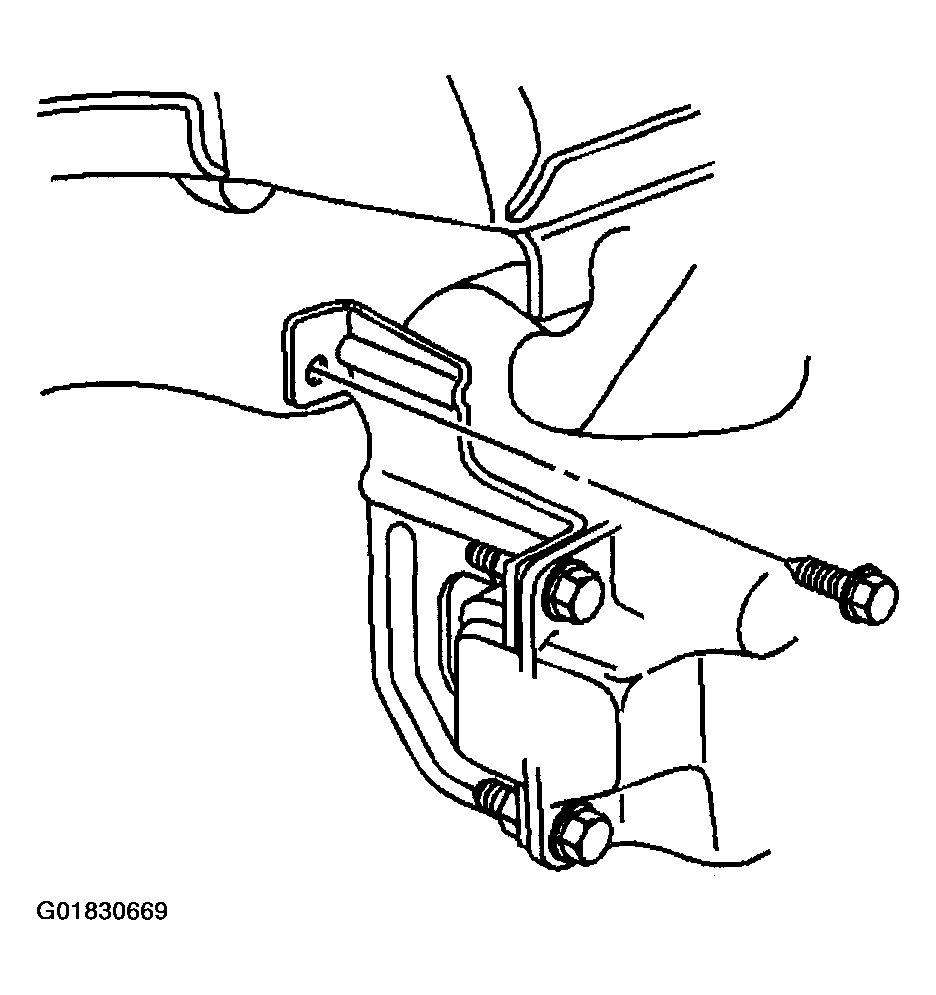

    Fig 1: Installing Washer Solvent Container & Bracket Screw
    G01830669Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer solvent level sensor electrical connector.
  4. Connect the washer pump electrical connector.
  5. Connect the washer pump hose.
  6. Install the front fender liner. Refer to FRONT FENDER LINER REPLACEMENT
    Fig 2: Washer Pump Hose & Washer Pump Electrical Connector
    G01830670Courtesy of GENERAL MOTORS CORP.
  7. Install the washer solvent container screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  8. Install the right headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB AND/OR CORNERING, SIDEMARKER, PARK, TURN SIGNAL BULB REPLACEMENT
  9. Install the washer solvent container filler neck. Refer to Washer Solvent Container Filler Neck Replacement
  10. Fill the washer solvent container with washer solvent.

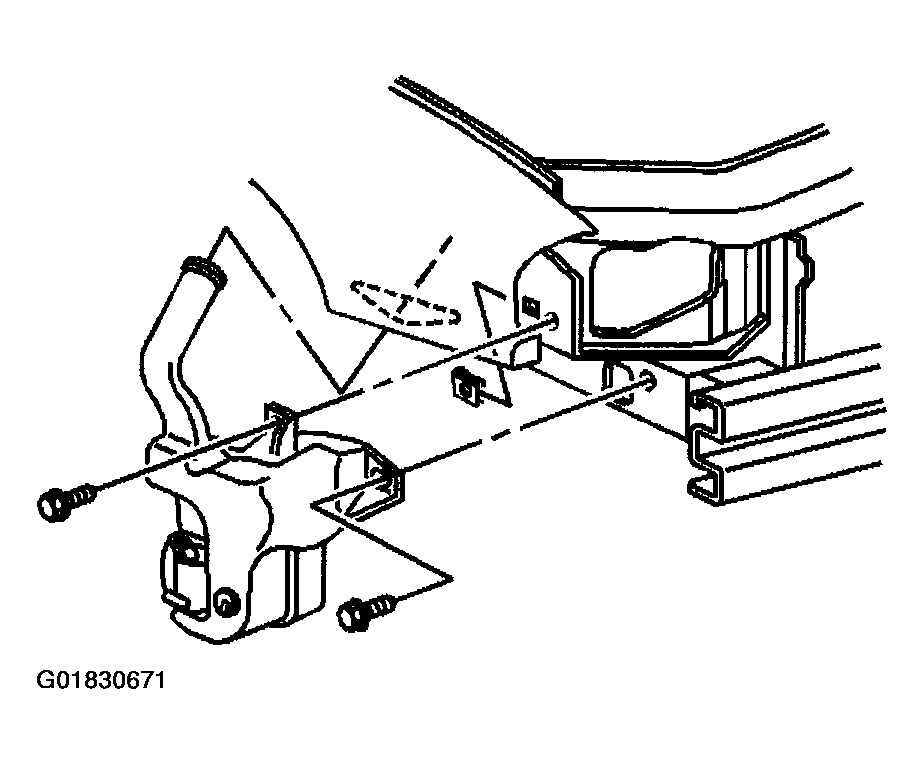

    Fig 3: Removing Washer Solvent Container Neck, Right Headlight Assembly & Screws
    G01830671Courtesy of GENERAL MOTORS CORP.
