Lighting Systems Component Views

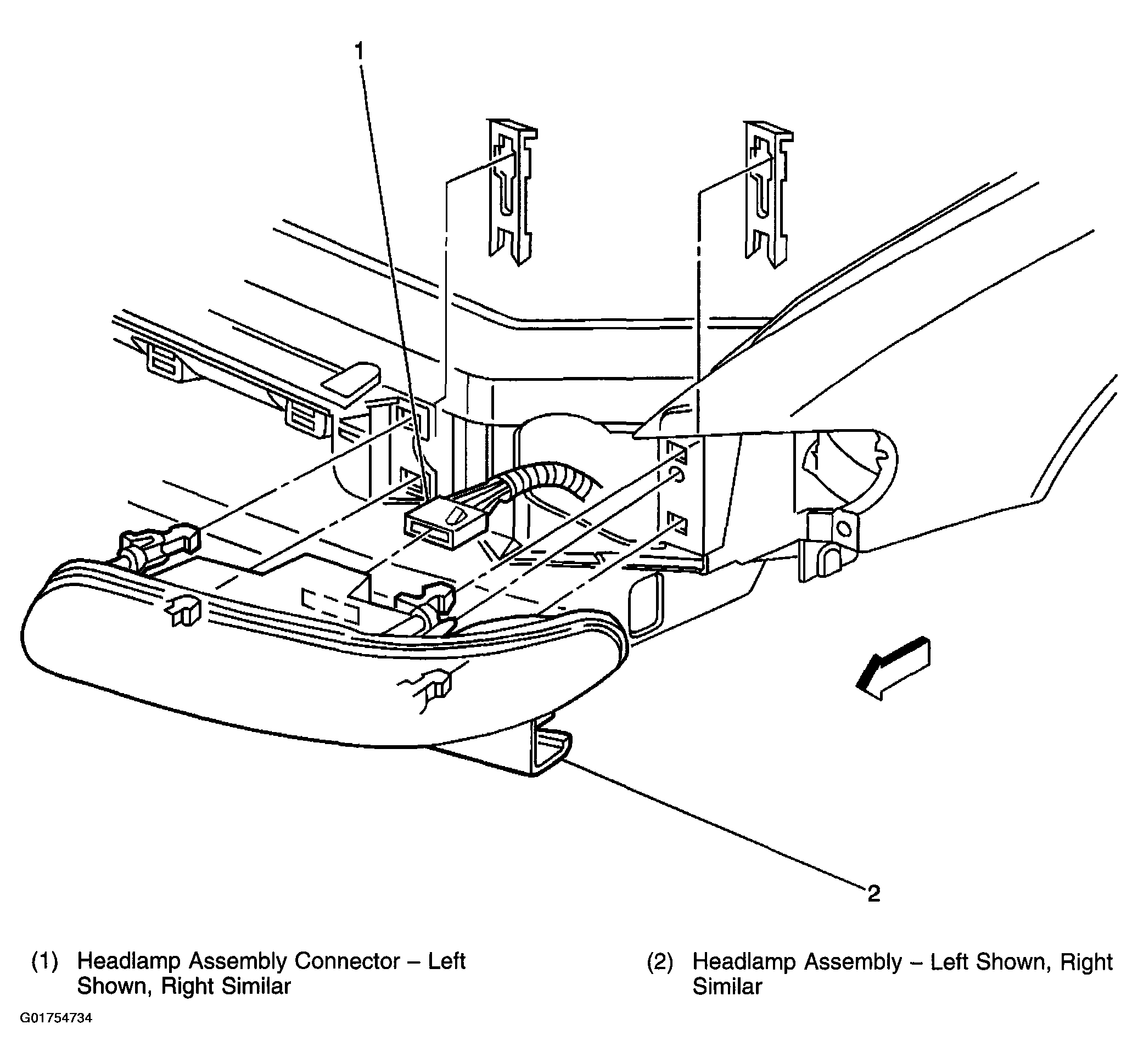

Fig 1: LF of Vehicle Forward Lamp to Headlamp

Courtesy of GENERAL MOTORS CORP.

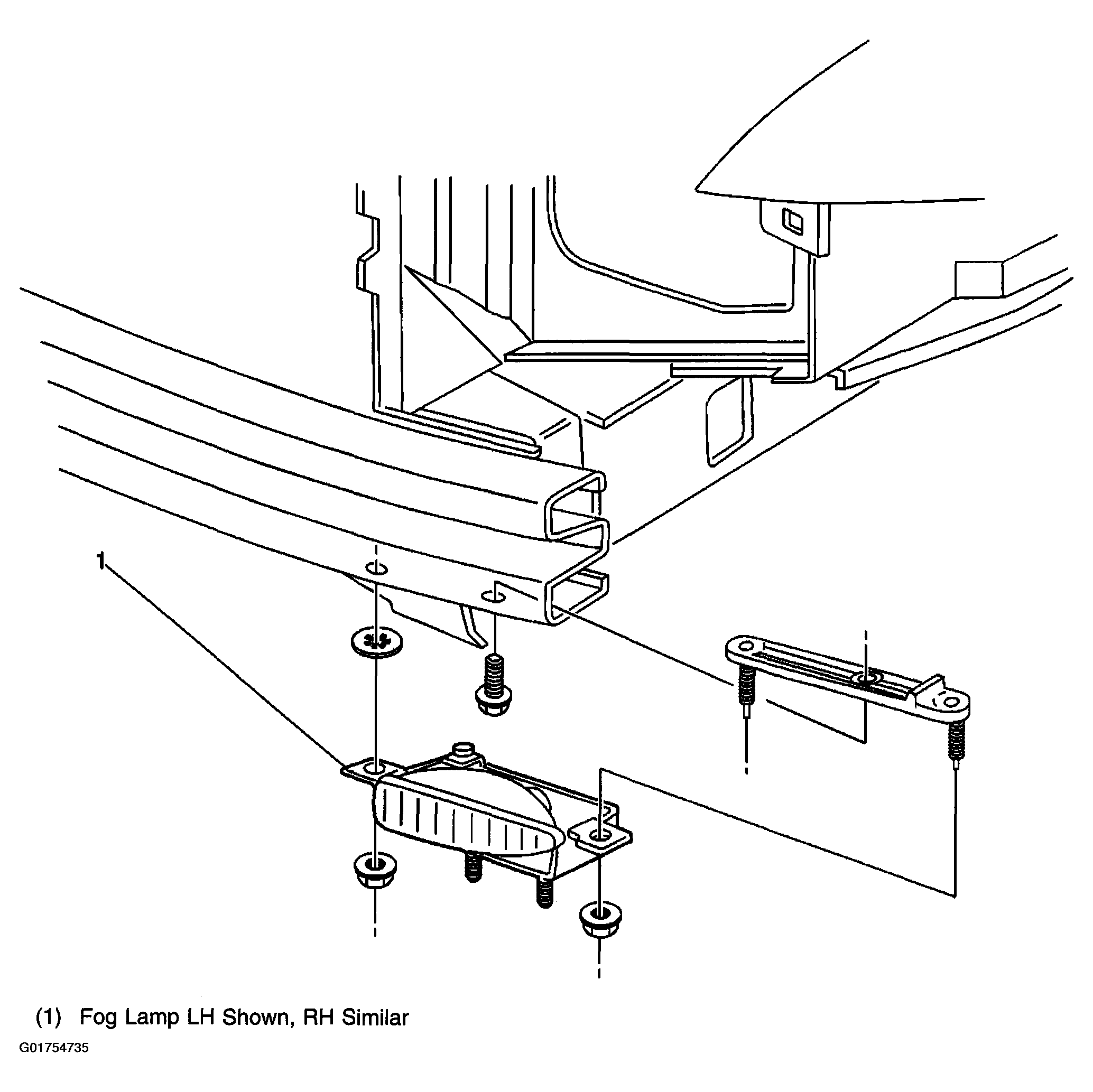

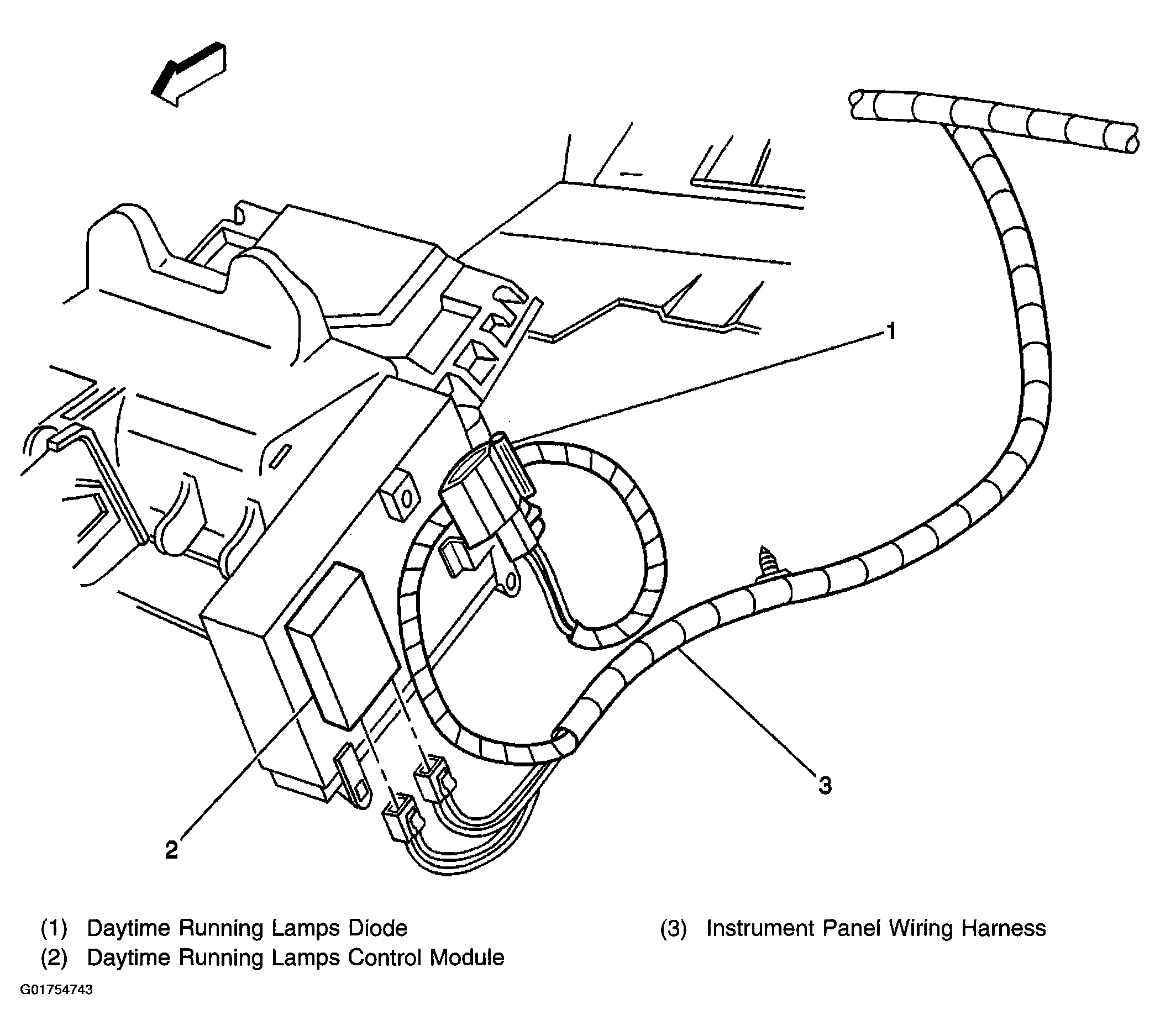

Fig 2: Lower Left Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

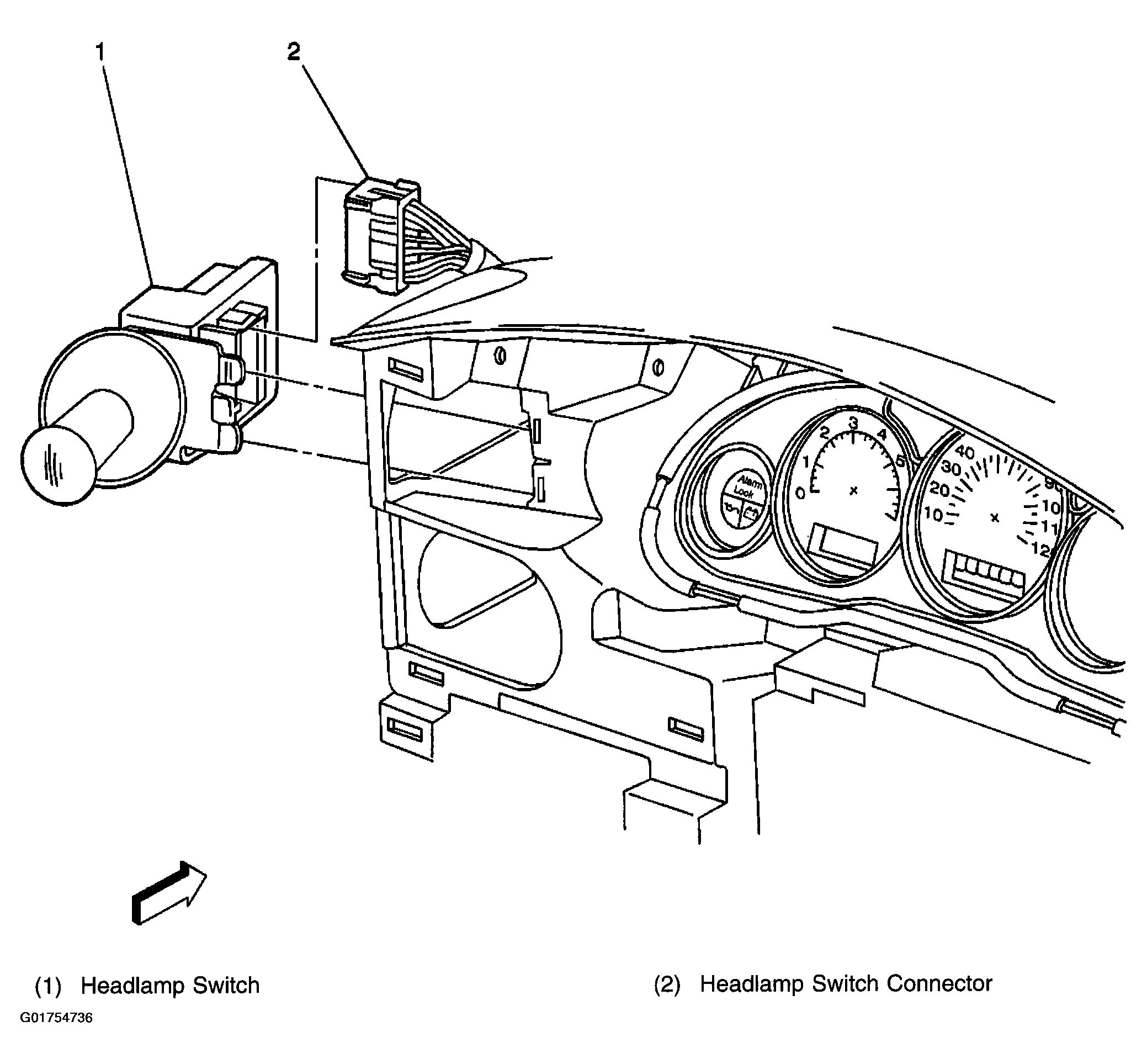

Fig 3: Upper Left Side of Instrument Cluster

Courtesy of GENERAL MOTORS CORP.

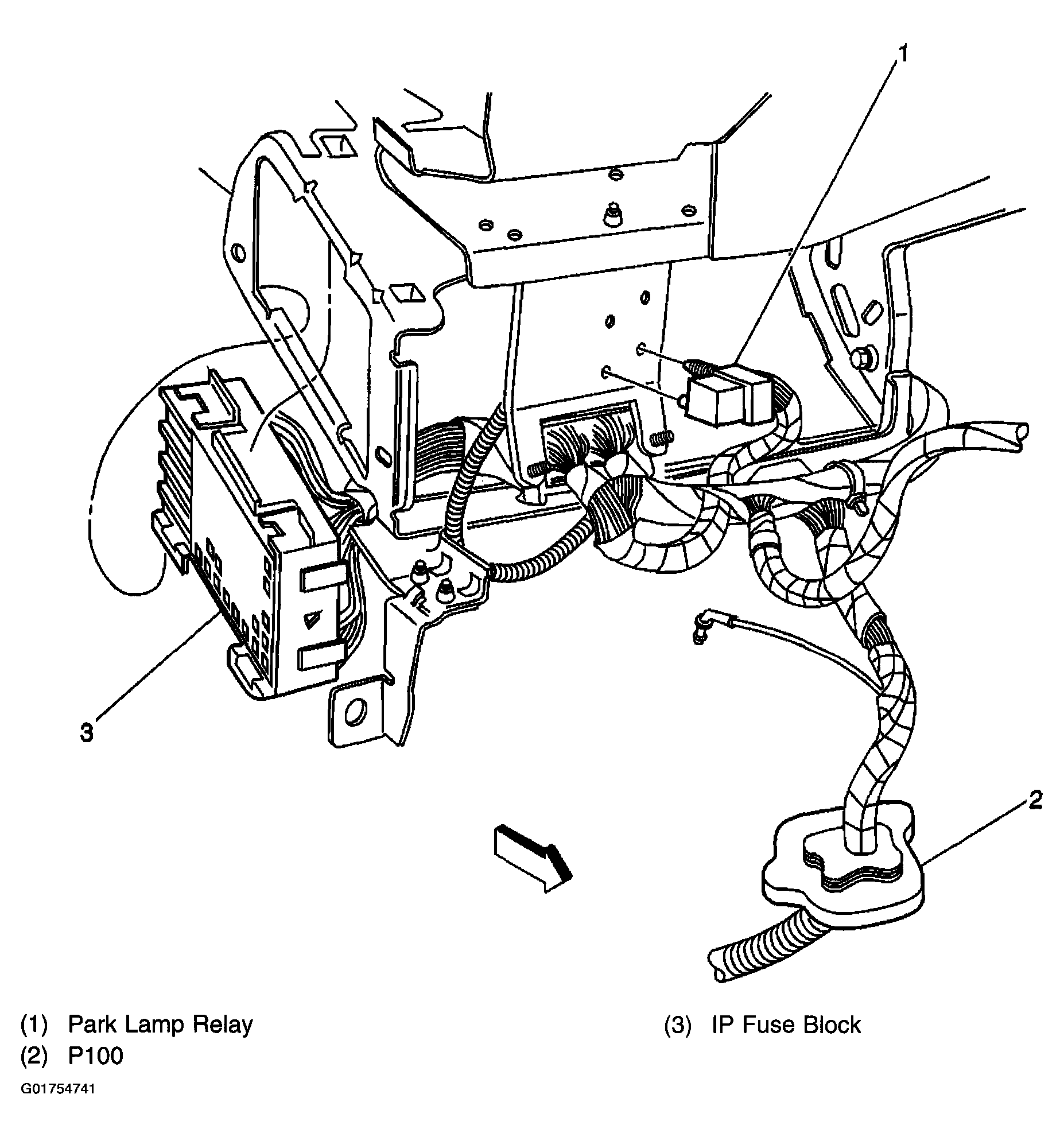

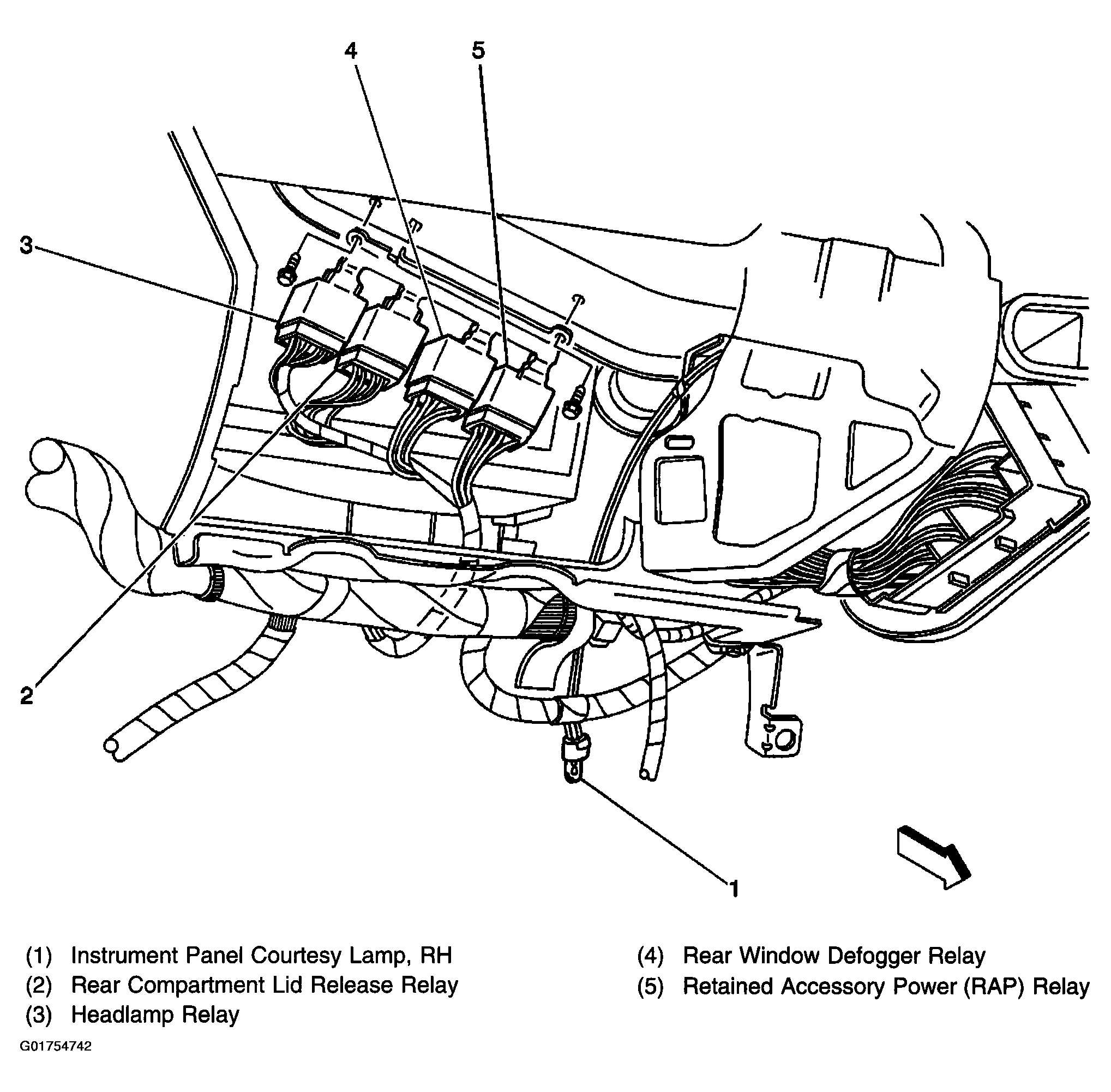

Fig 4: Lower Left of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

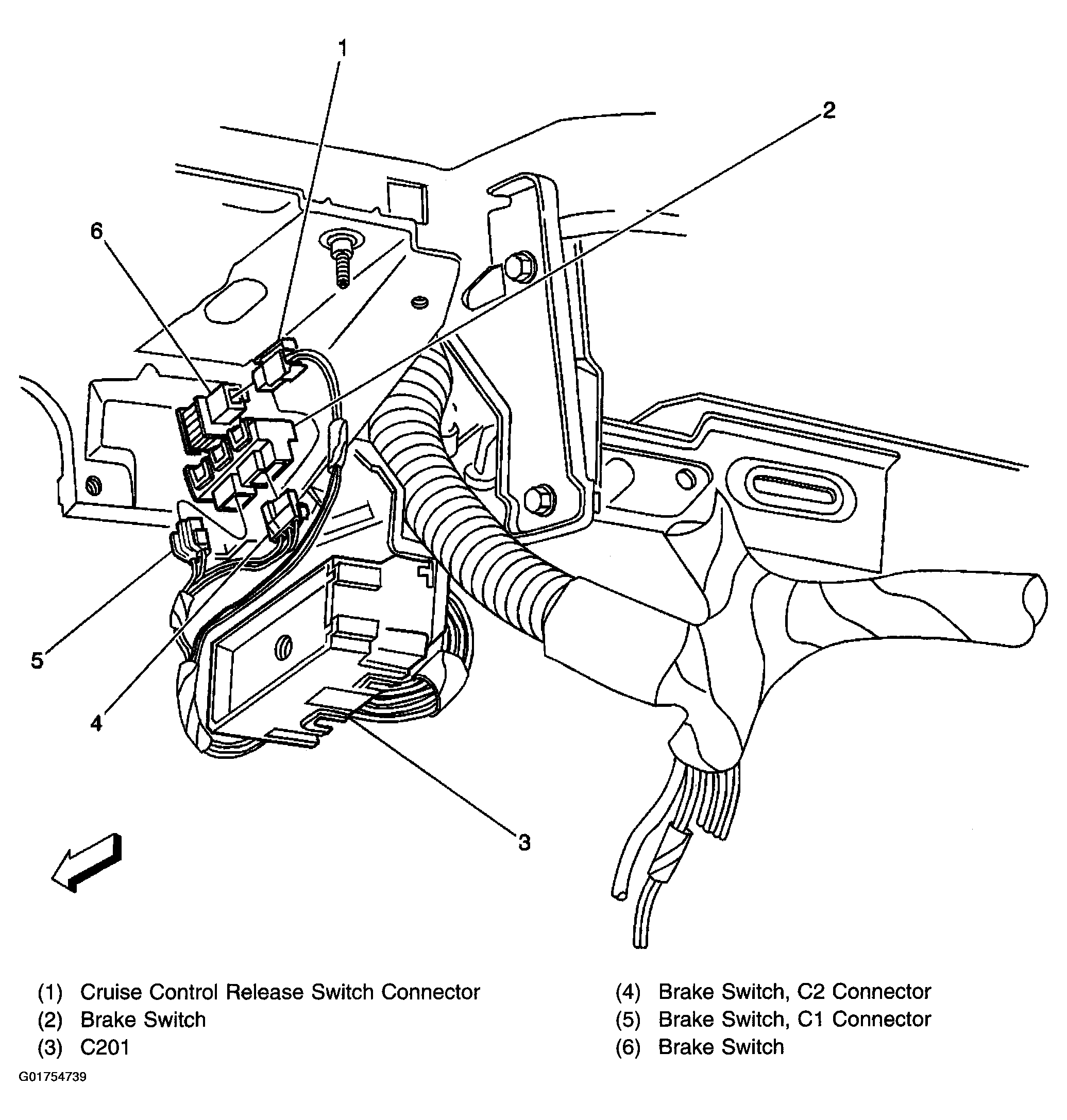

Fig 5: Behind Brake Pedal Bracket

Courtesy of GENERAL MOTORS CORP.

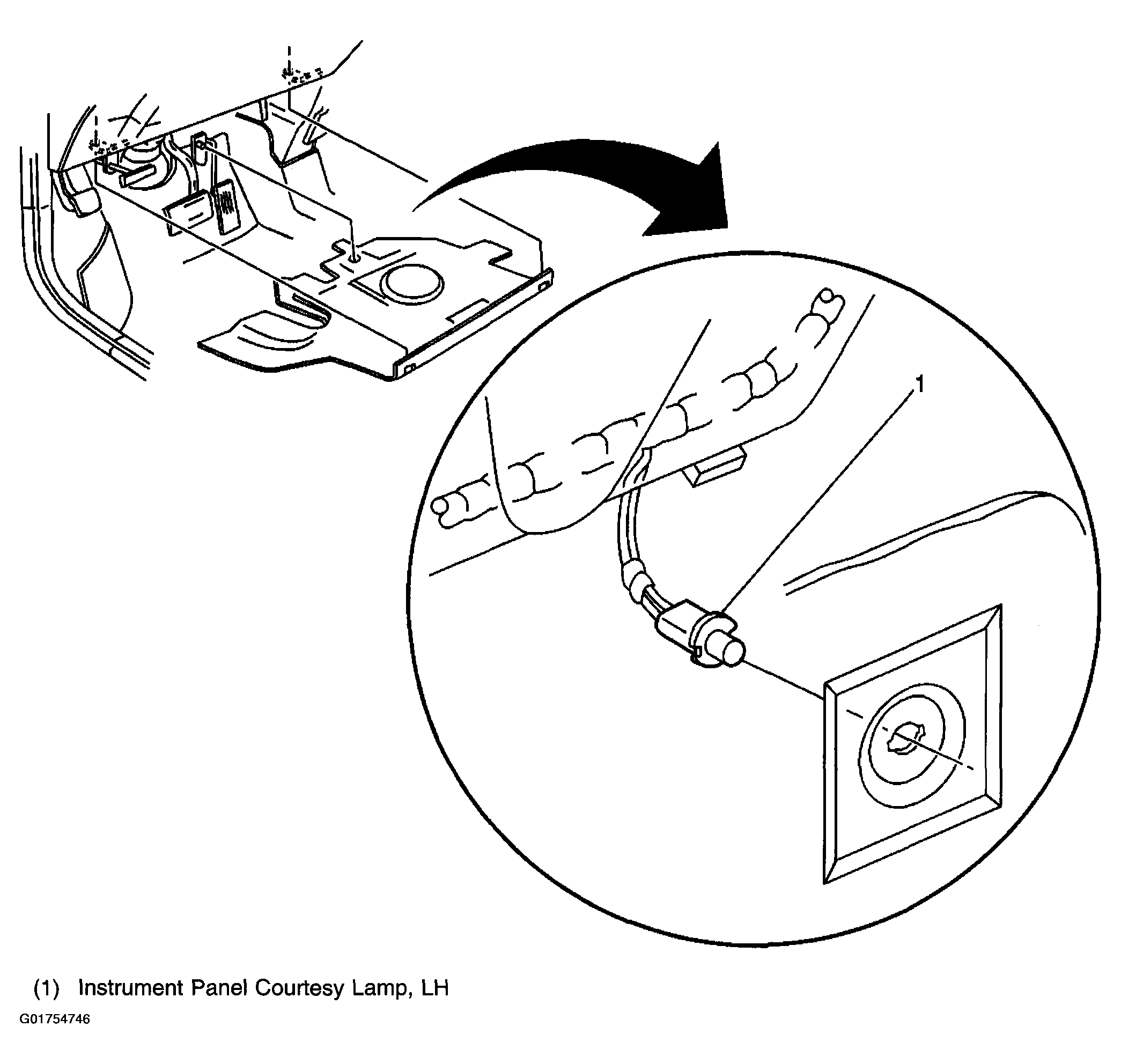

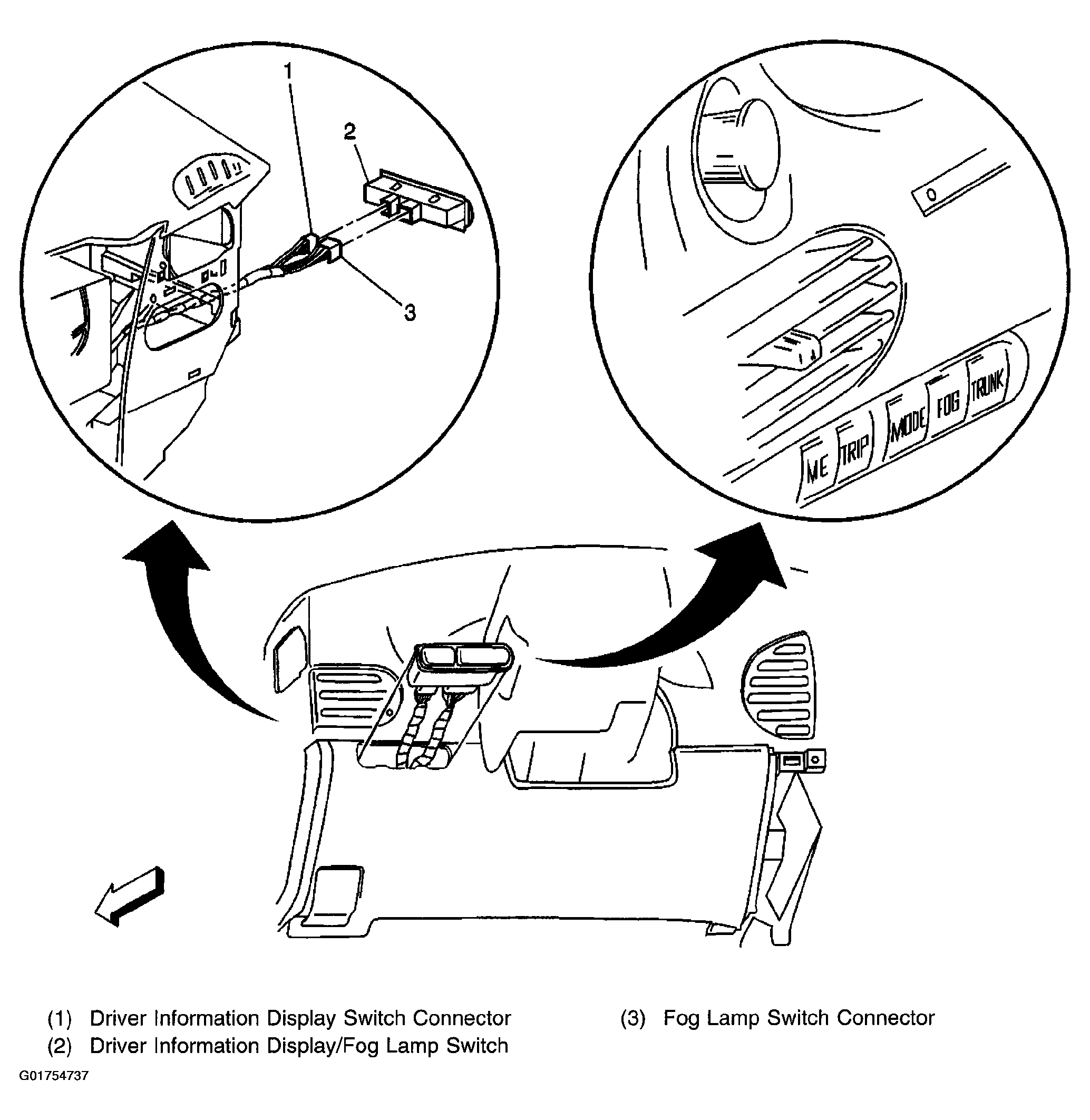

Fig 6: Behind Left Side of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Fig 7: Right Side of IP Pass-Through to Engine Compartment

Courtesy of GENERAL MOTORS CORP.

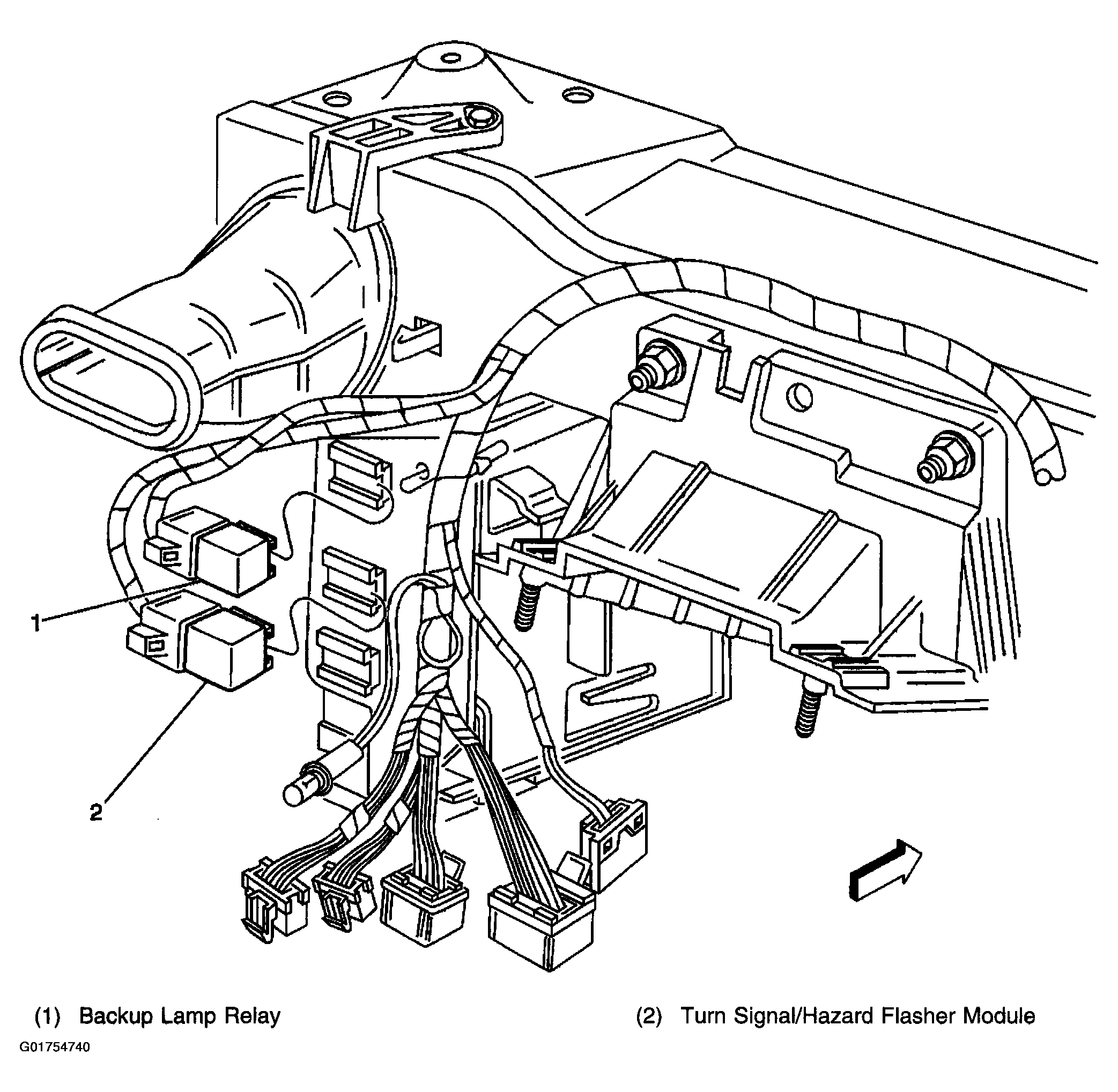

Fig 8: Behind Right Side of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Fig 9: Right Side of IP

Courtesy of GENERAL MOTORS CORP.

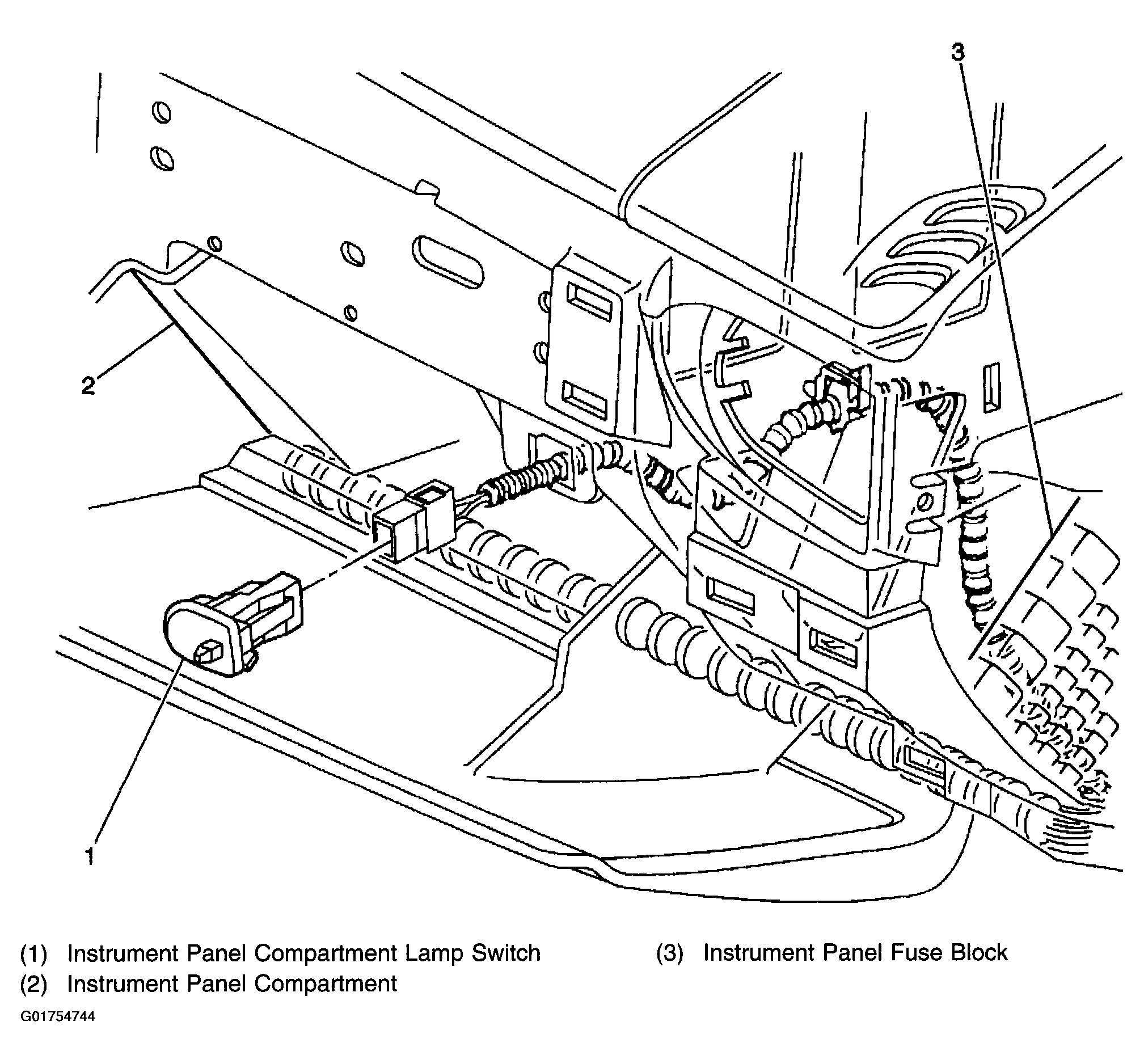

Fig 10: RH Side of Instrument Panel Compartment

Courtesy of GENERAL MOTORS CORP.

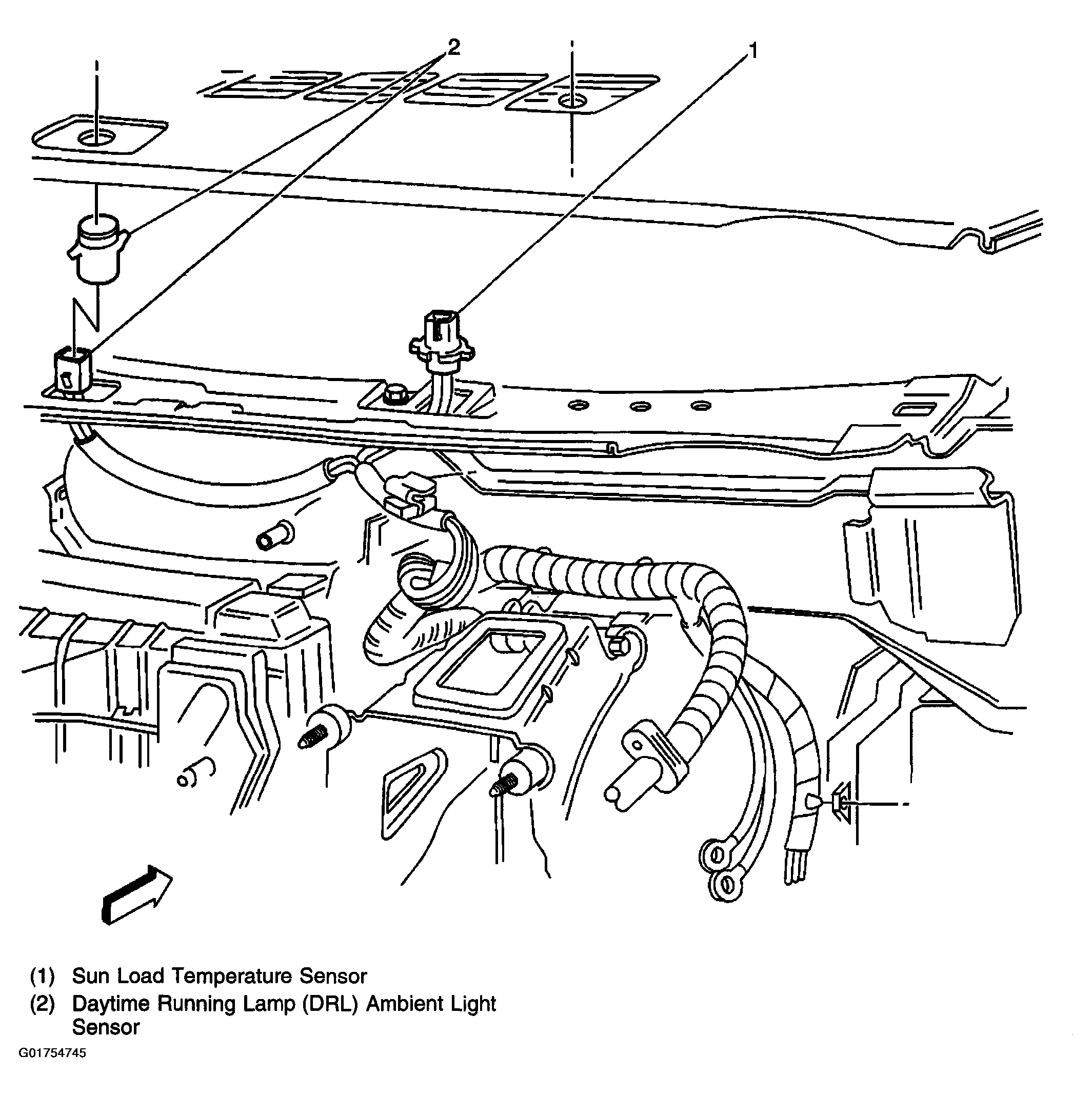

Fig 11: Top of Instrument Panel, Base of Windshield

Courtesy of GENERAL MOTORS CORP.

Fig 12: Bottom Left Side of Instrument Panel

Courtesy of GENERAL MOTORS CORP.

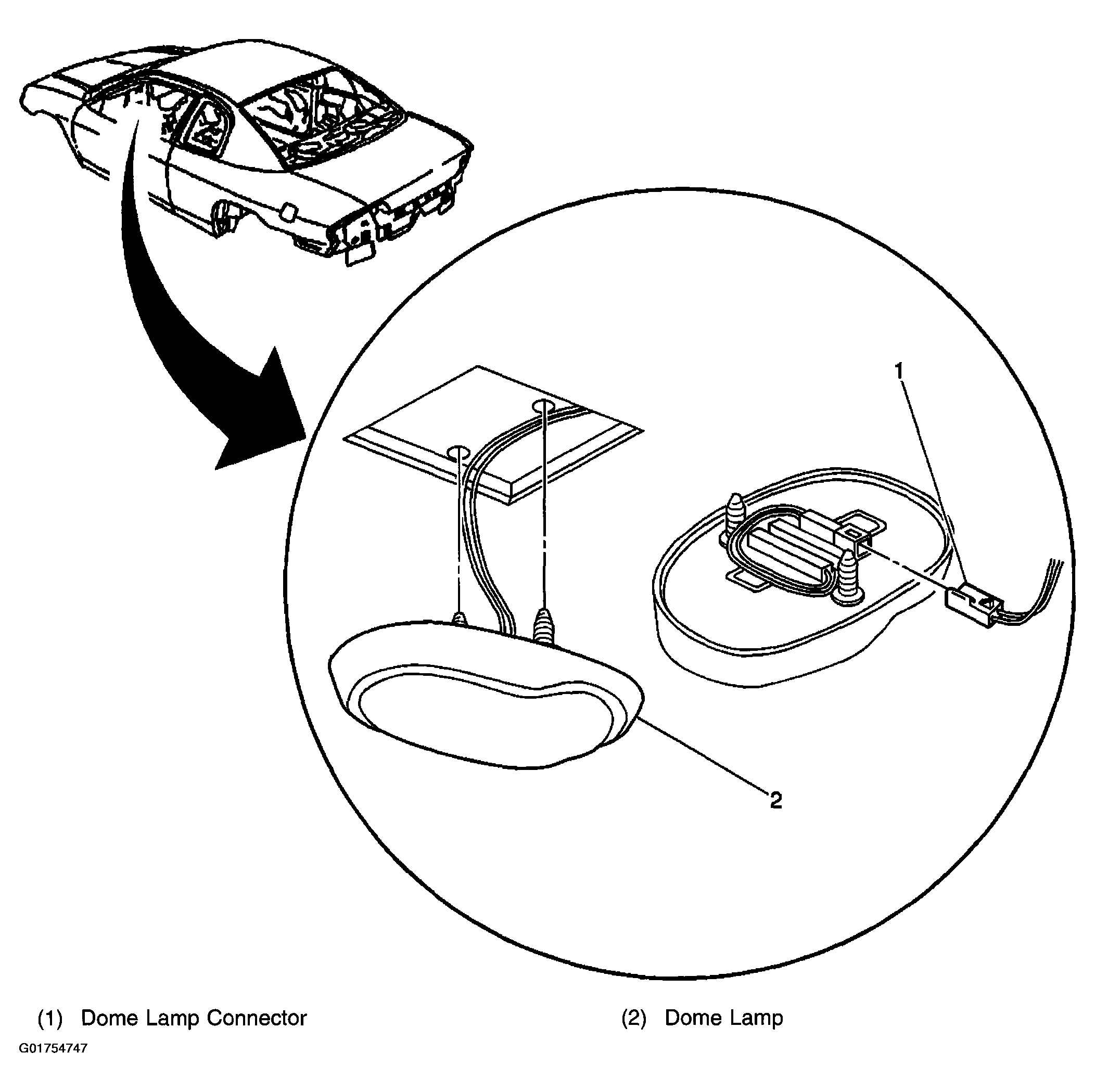

Fig 13: Dome Lamp Component View

Courtesy of GENERAL MOTORS CORP.

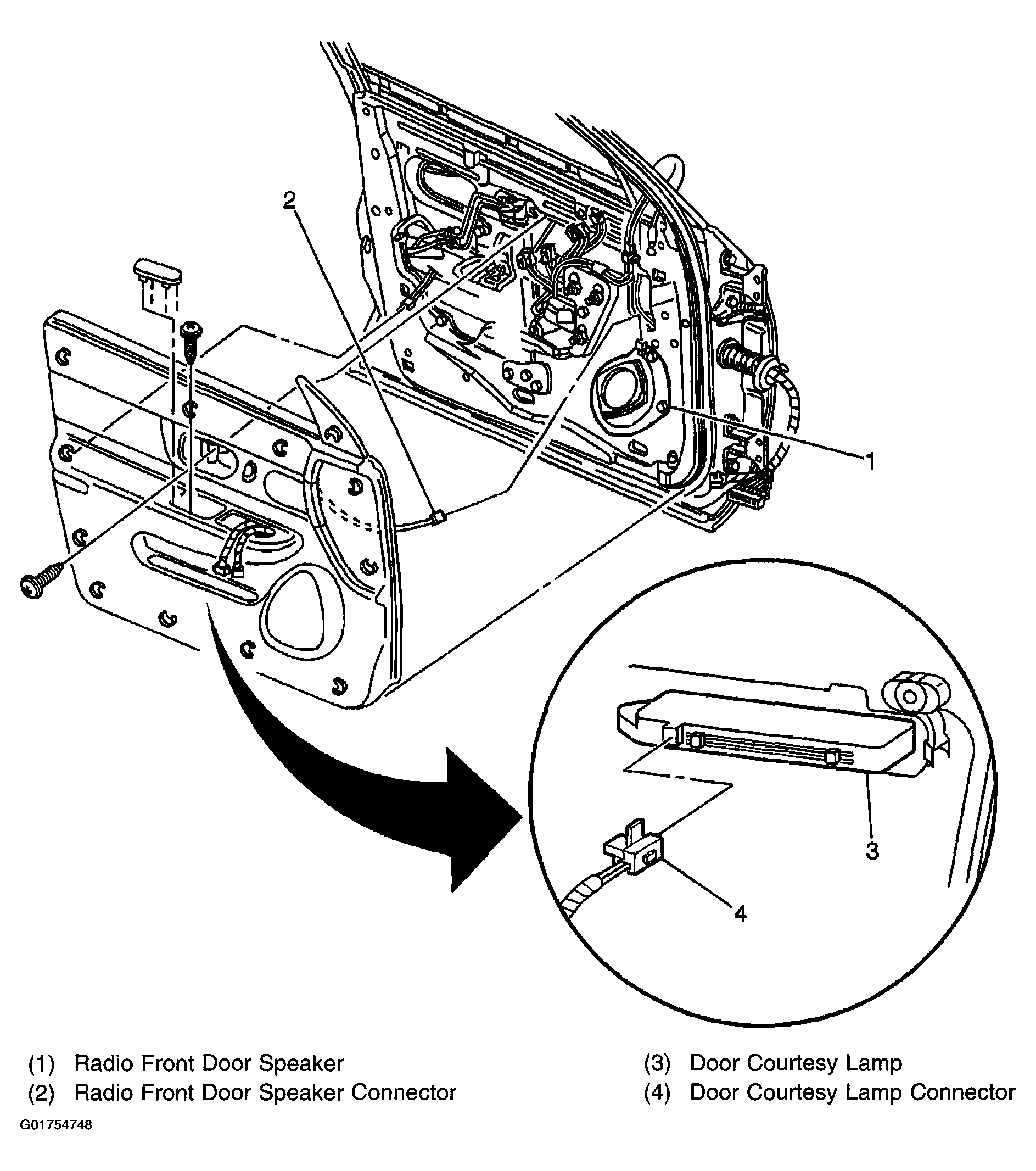

Fig 14: Left Front Door

Courtesy of GENERAL MOTORS CORP.

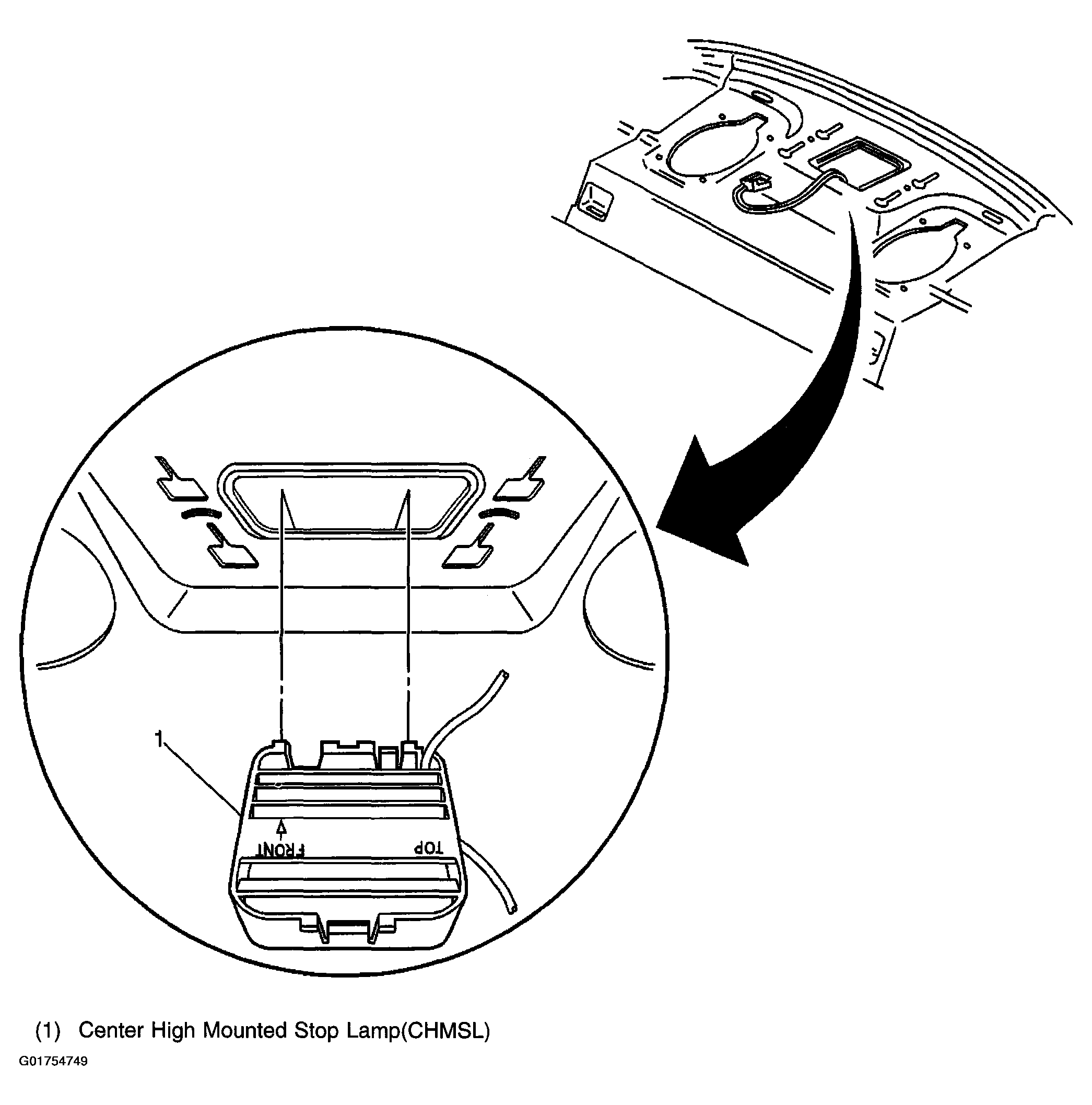

Fig 15: Center of Package Shelf

Courtesy of GENERAL MOTORS CORP.

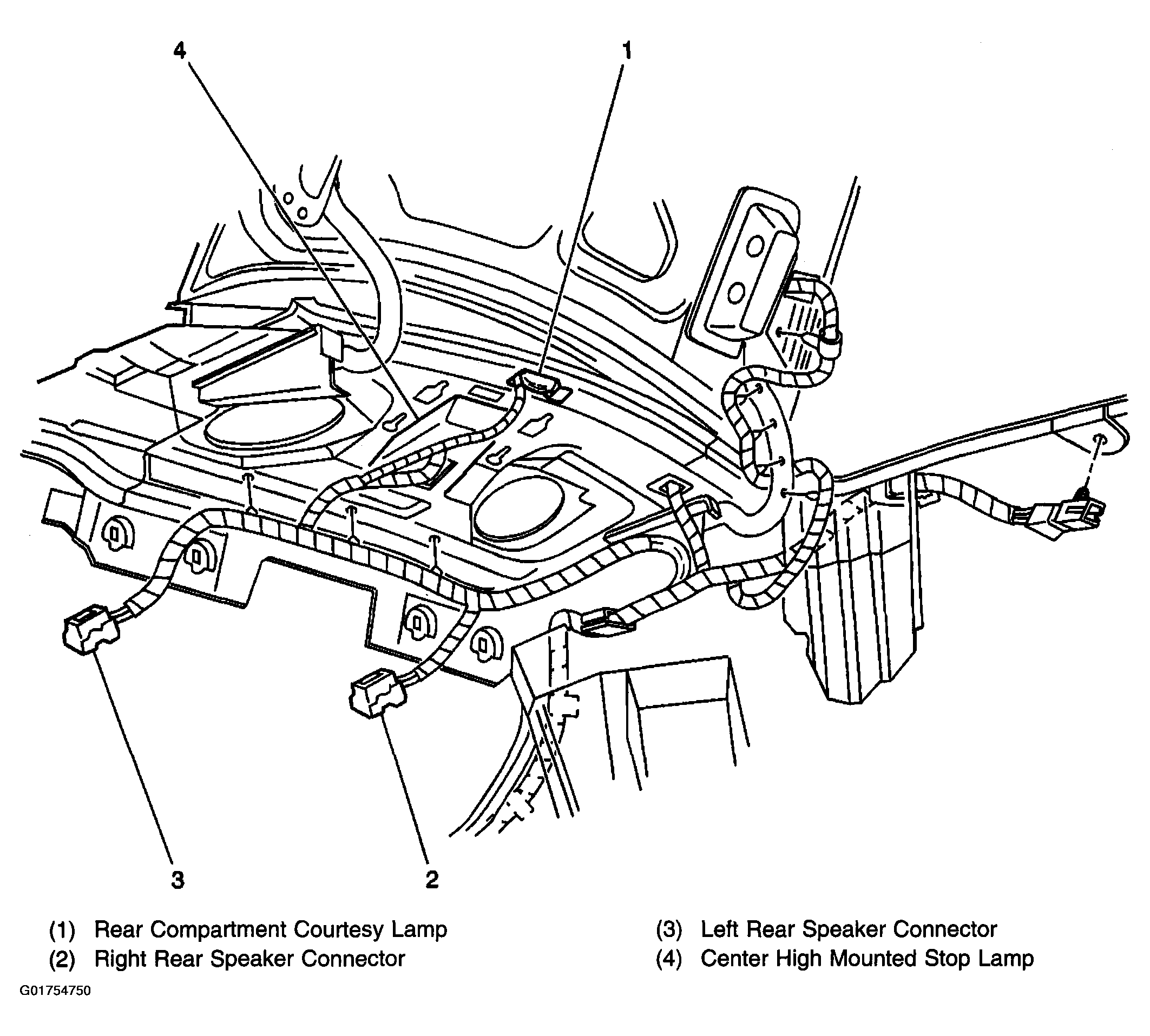

Fig 16: Front of Rear Compartment

Courtesy of GENERAL MOTORS CORP.

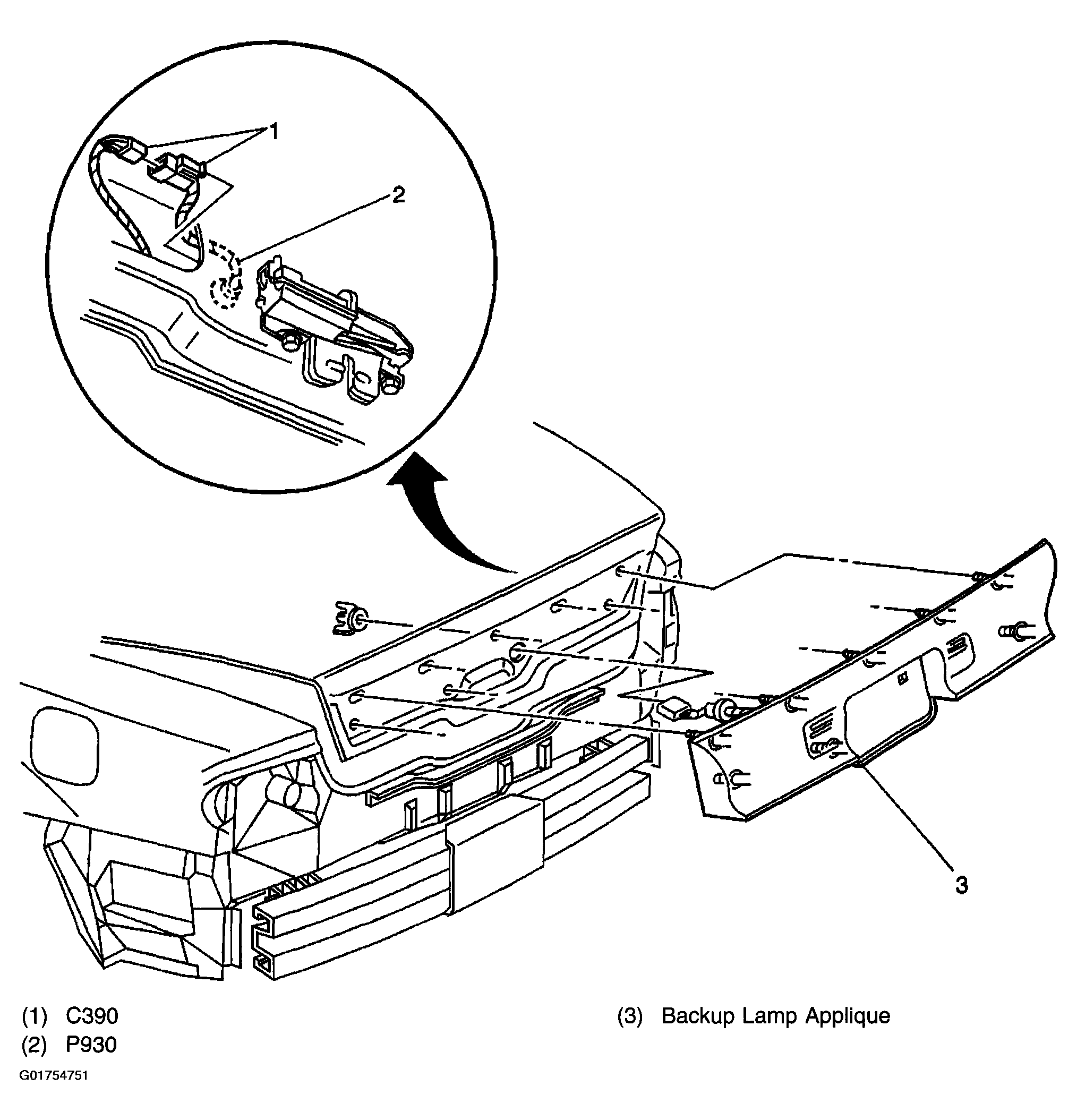

Fig 17: Rear Compartment Lid, Pass-Through to Backup Lamp Applique

Courtesy of GENERAL MOTORS CORP.

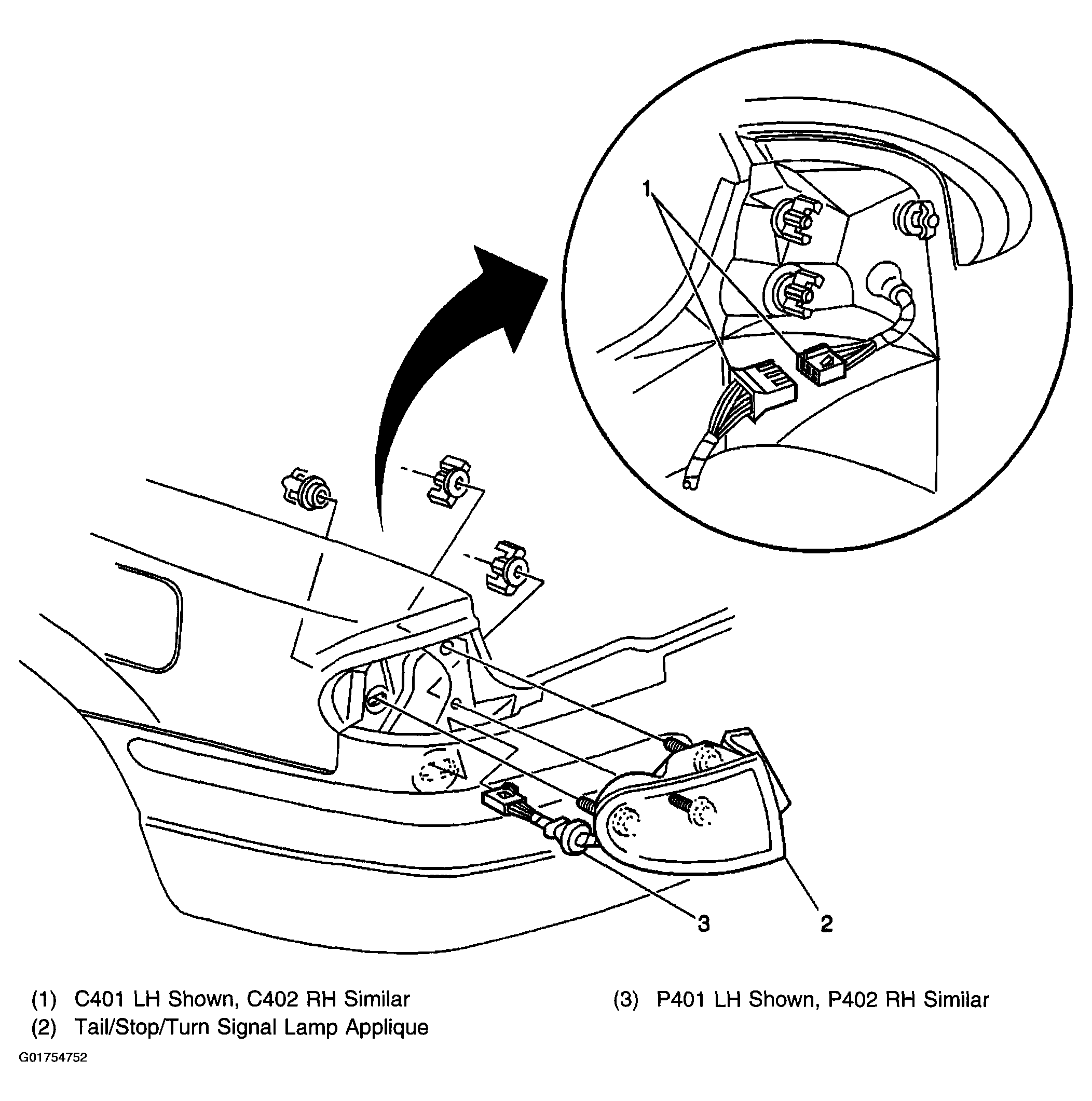

Fig 18: Left Rear of Vehicle

Courtesy of GENERAL MOTORS CORP.
