Interior Backlighting Does Not Dim

WARNING: This page is about a different car, the 2002 Oldsmobile Intrigue. However, it is still accessible from the selected car via links, so may be relevant.

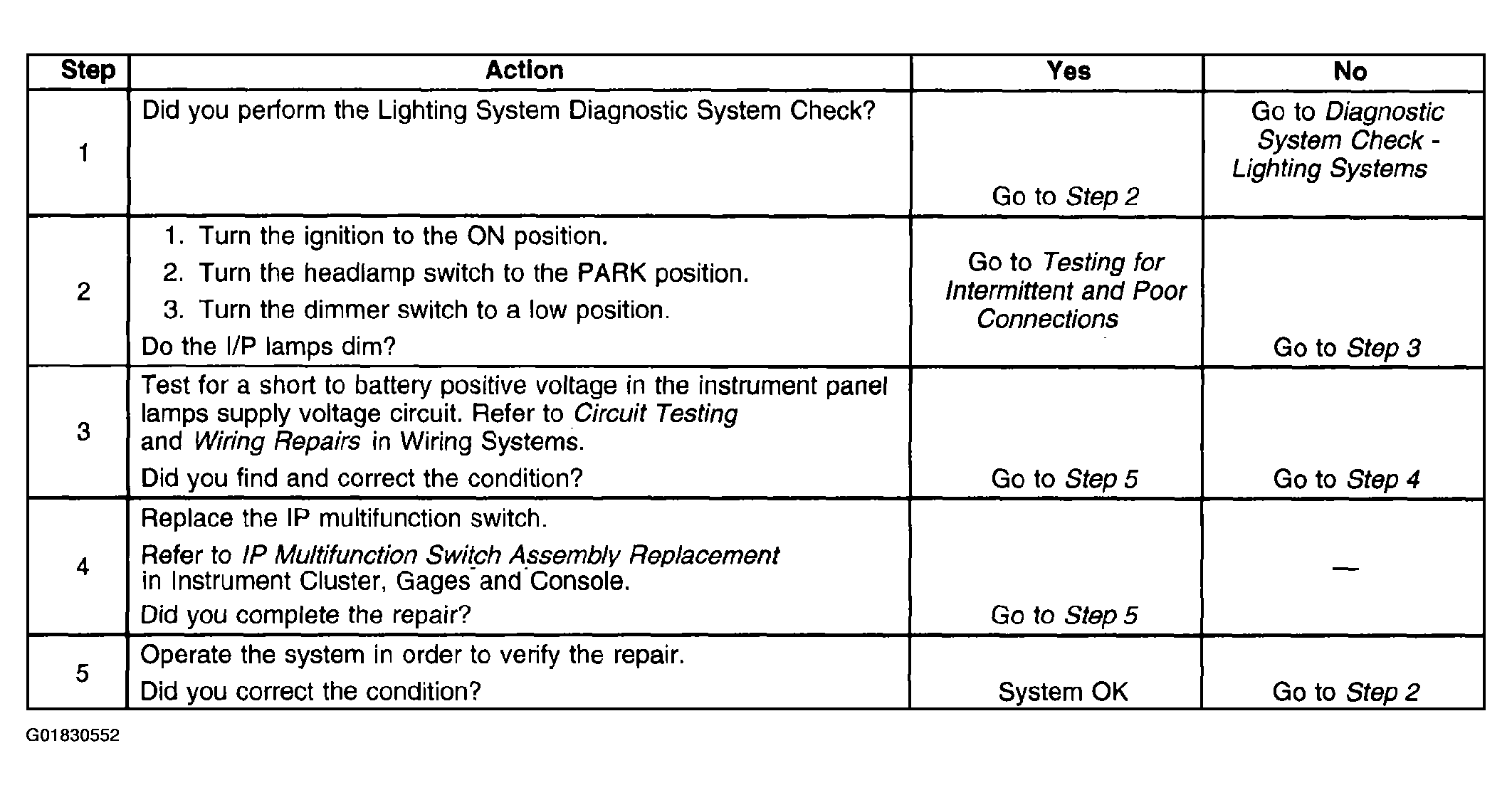

Fig 1: Interior Backlighting Does Not Dim
G01830552Courtesy of GENERAL MOTORS CORP.
