Diagnostic Procedures

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

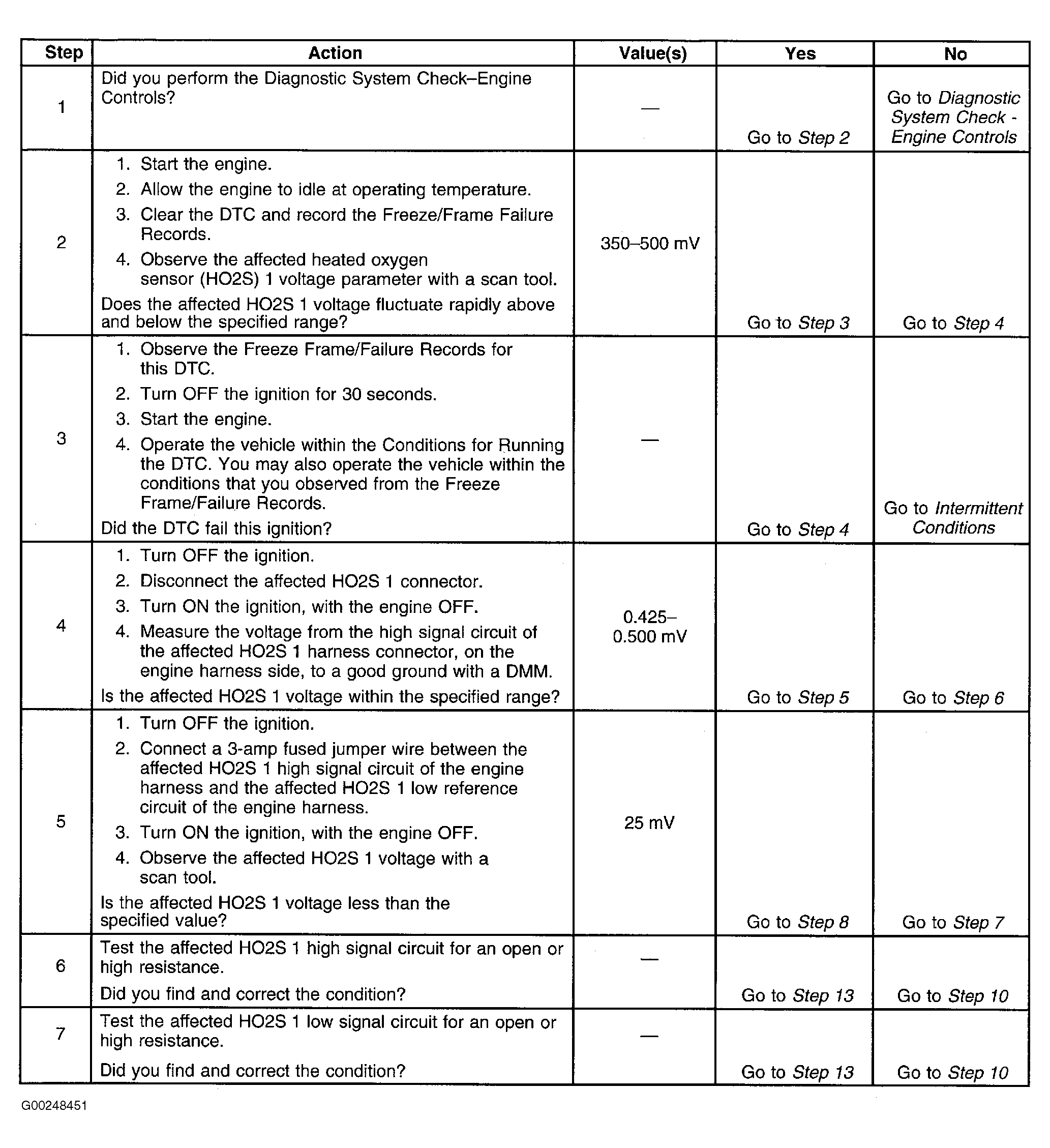

Fig 1: DTC P0130: HO2S Bank 1 Sensor 1 Circuit & DTC P0150: HO2S Bank 2 Sensor 1 Circuit (Steps 1-7)

Courtesy of GENERAL MOTORS CORP.

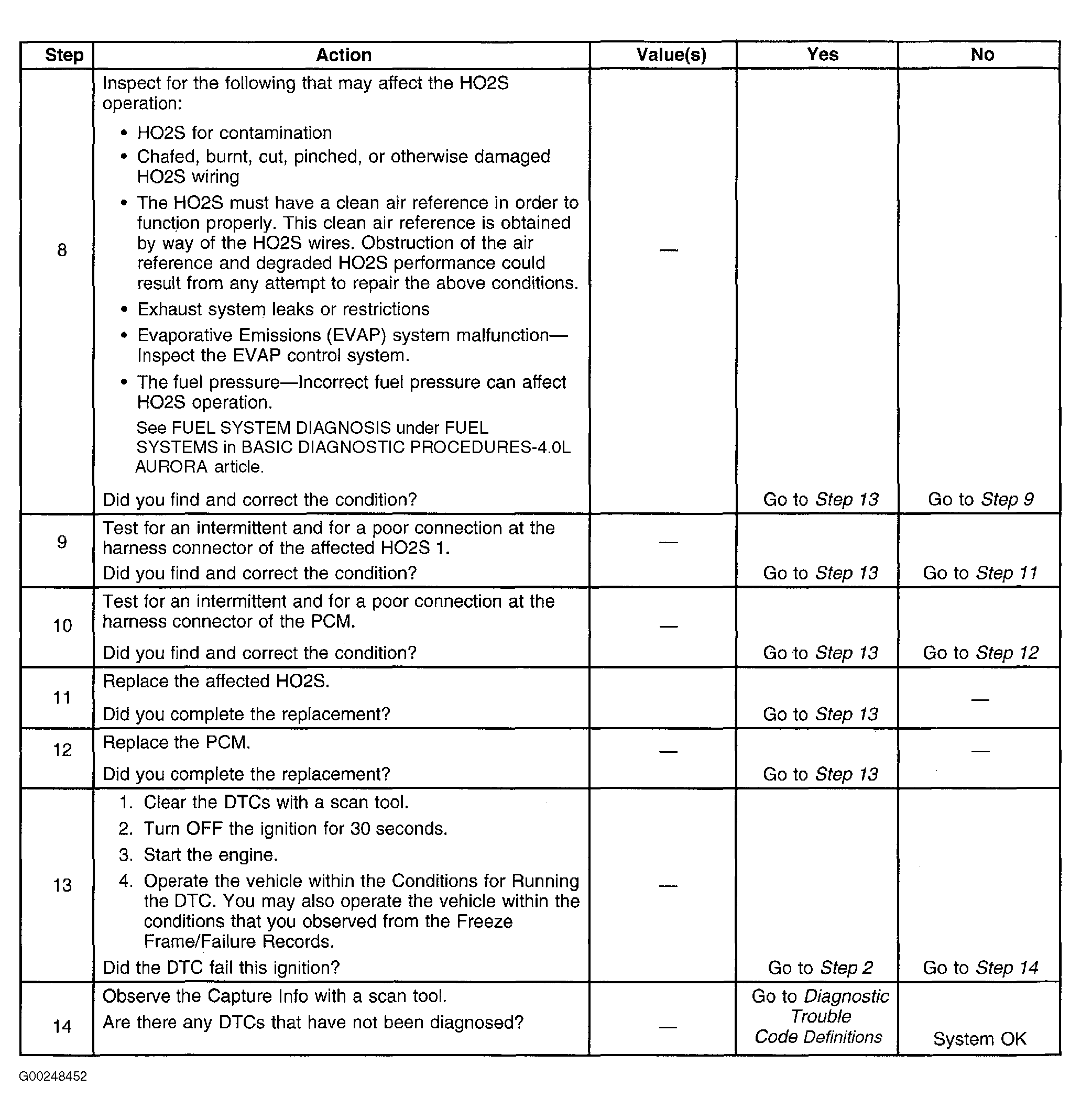

Fig 2: DTC P0130: HO2S Bank 1 Sensor 1 Circuit & DTC P0150: HO2S Bank 2 Sensor 1 Circuit (Steps 8-14)

Courtesy of GENERAL MOTORS CORP.
