Test B: One Door Switch Unlock Function Inoperative

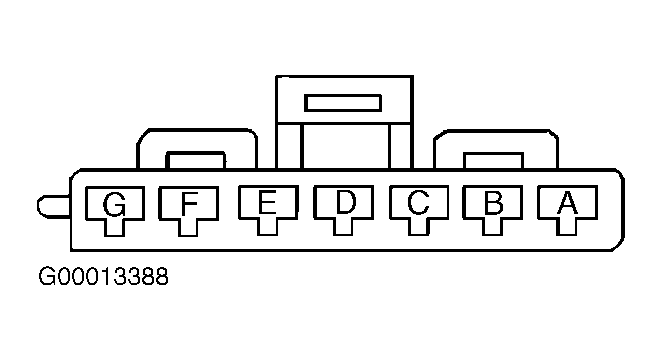

  1. Turn ignition switch to LOCK position. Disconnect inoperative door lock switch harness connector. Connect DVOM between driver-side door lock switch connector terminals "B" (Orange/Black wire) and "F" (Black wire) or passenger-side door lock switch connector terminals "C" (Orange/Black wire) and "F" (Black wire). See Figure . Resistance should be infinite. Press UNLOCK on affected door lock switch. Resistance should be less than 2 ohms. If resistance readings are as specified, go to next step. If resistance readings are not as specified, go to step  3 .
  2. Repair poor connection or open in Orange/Black wire between BCM and affected door lock switch. After repairs, go to step  4 .
  3. Replace affected door lock switch. After replacing switch, go to next step.
  4. Turn ignition switch to LOCK position. Reinstall connectors or components that were disconnected. Recheck system operation.
