Keyless Entry Schematics

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

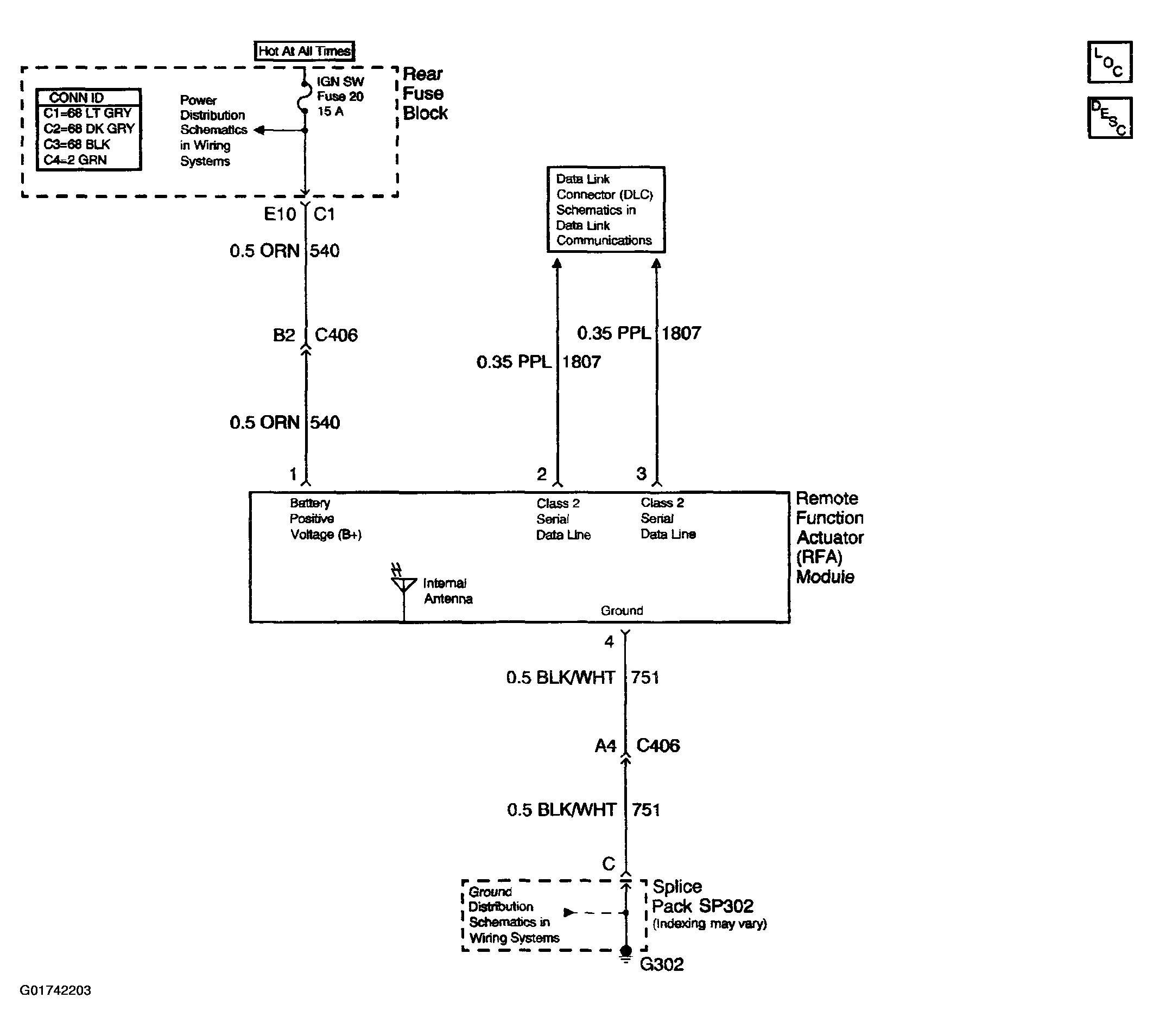

Fig 1: Keyless Entry Schematics
G01742203Courtesy of GENERAL MOTORS CORP.
