Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

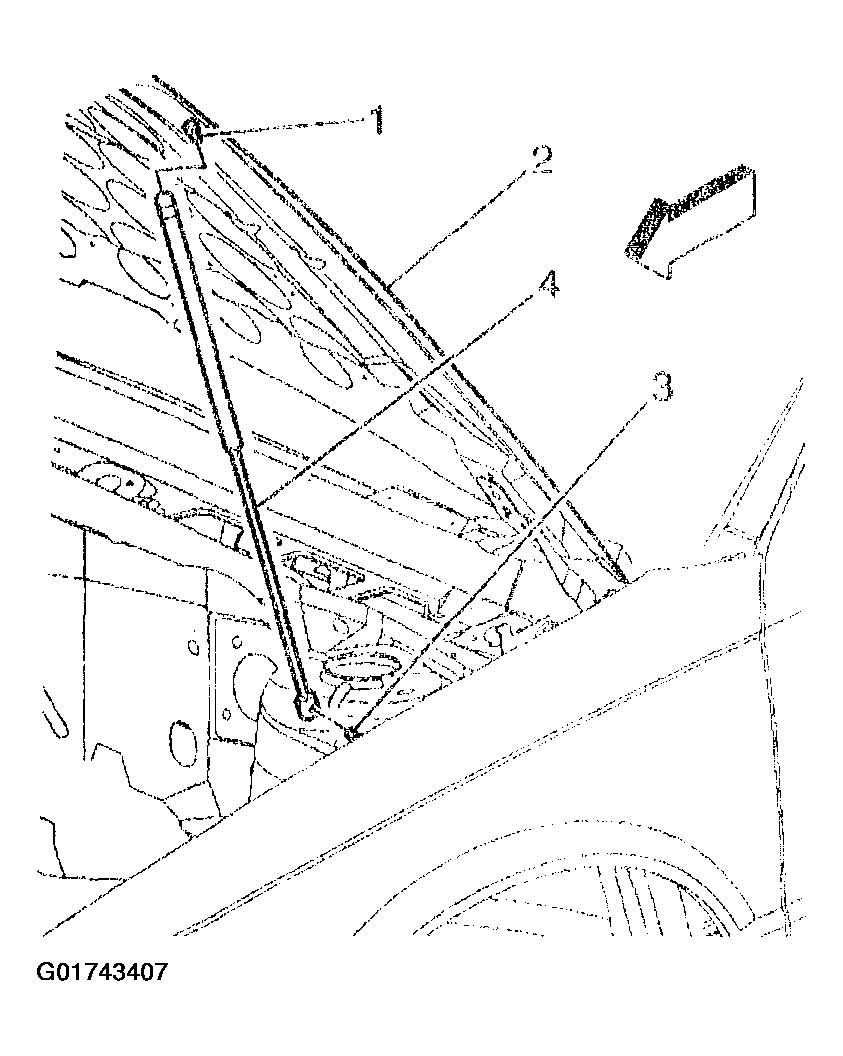

  1. Press the hood assist rod (4) onto the upper hood assist rod ball stud (1). See Figure.
  2. Press the hood assist rod (4) onto the lower hood assist rod ball stud (3).
  3. Ensure that both release clips are fully seated on the hood assist rod (4).
  4. Close the hood.
