Removal Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the retainers from the front air deflector.
  3. Remove the front air deflector.

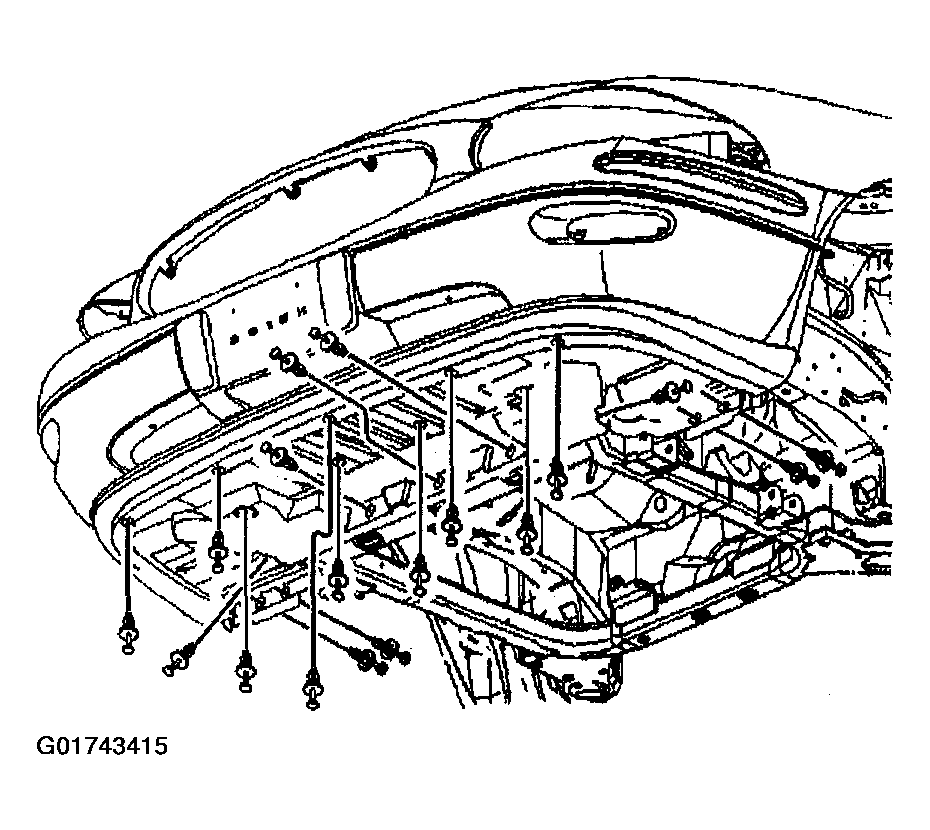

Fig 1: Removing Front Air Deflector
G01743415Courtesy of GENERAL MOTORS CORP.
