Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

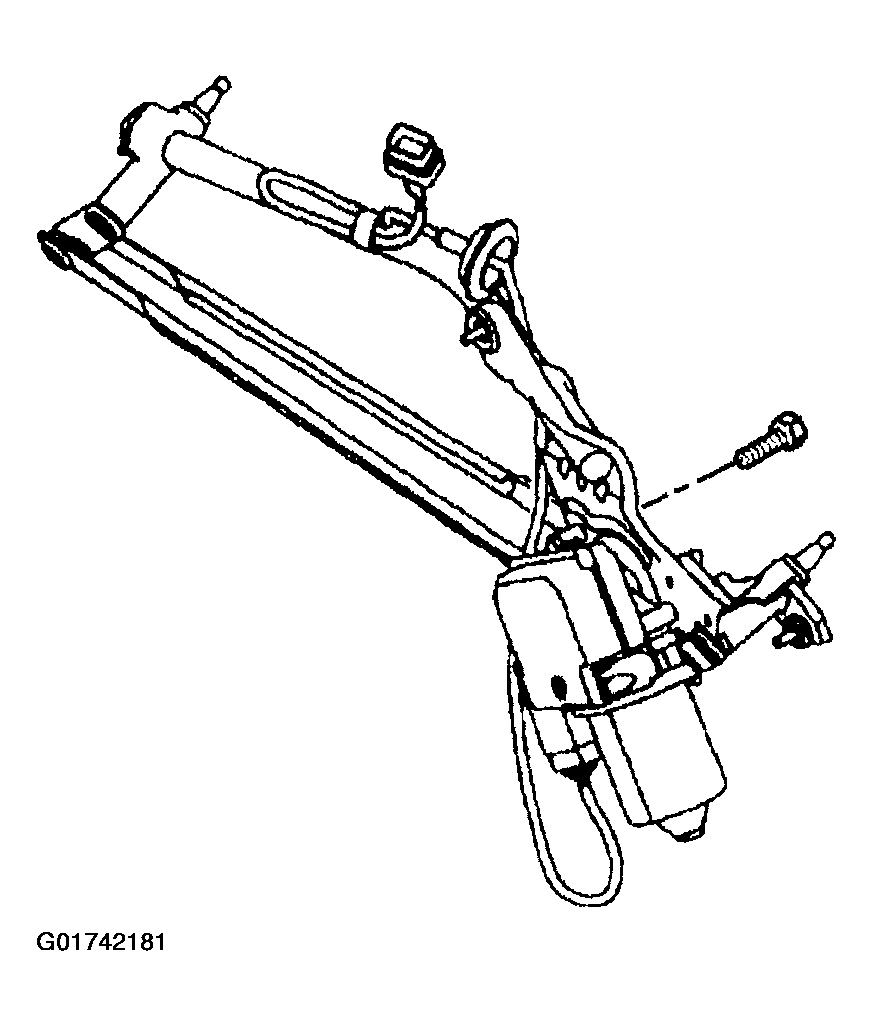

  1. Install the wiper motor onto the wiper drive system module with the screws. Tighten the screws to 8 N.m (71 in lbs). See Figure.

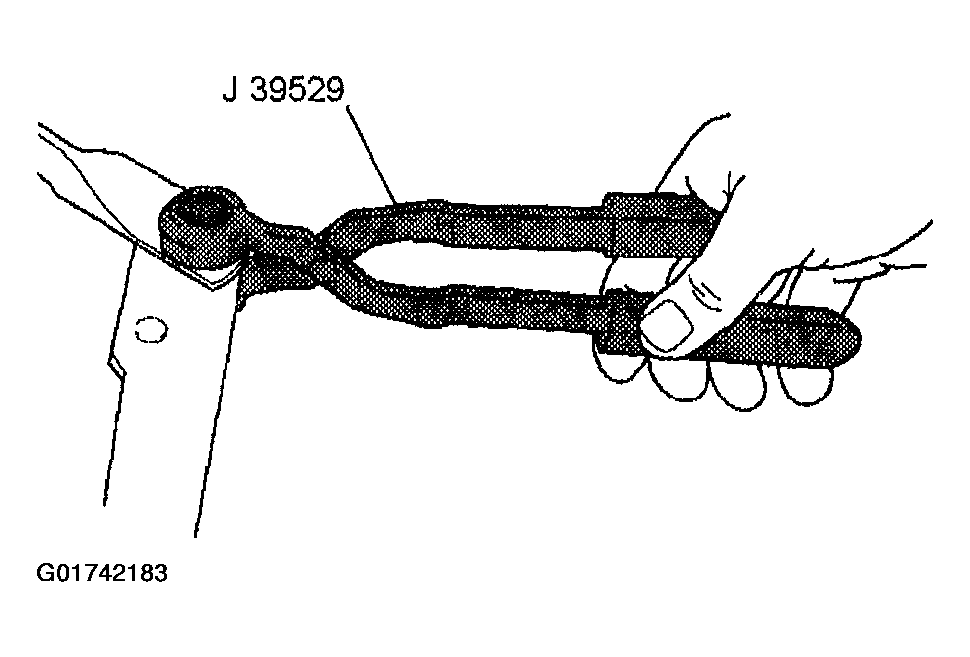

  2. Install the drive link onto the wiper motor crank arm with the J 39529.
    3. Fig 1: Installing Drive Link Onto Wiper Motor Crank Arm
    G01742183Courtesy of GENERAL MOTORS CORP.

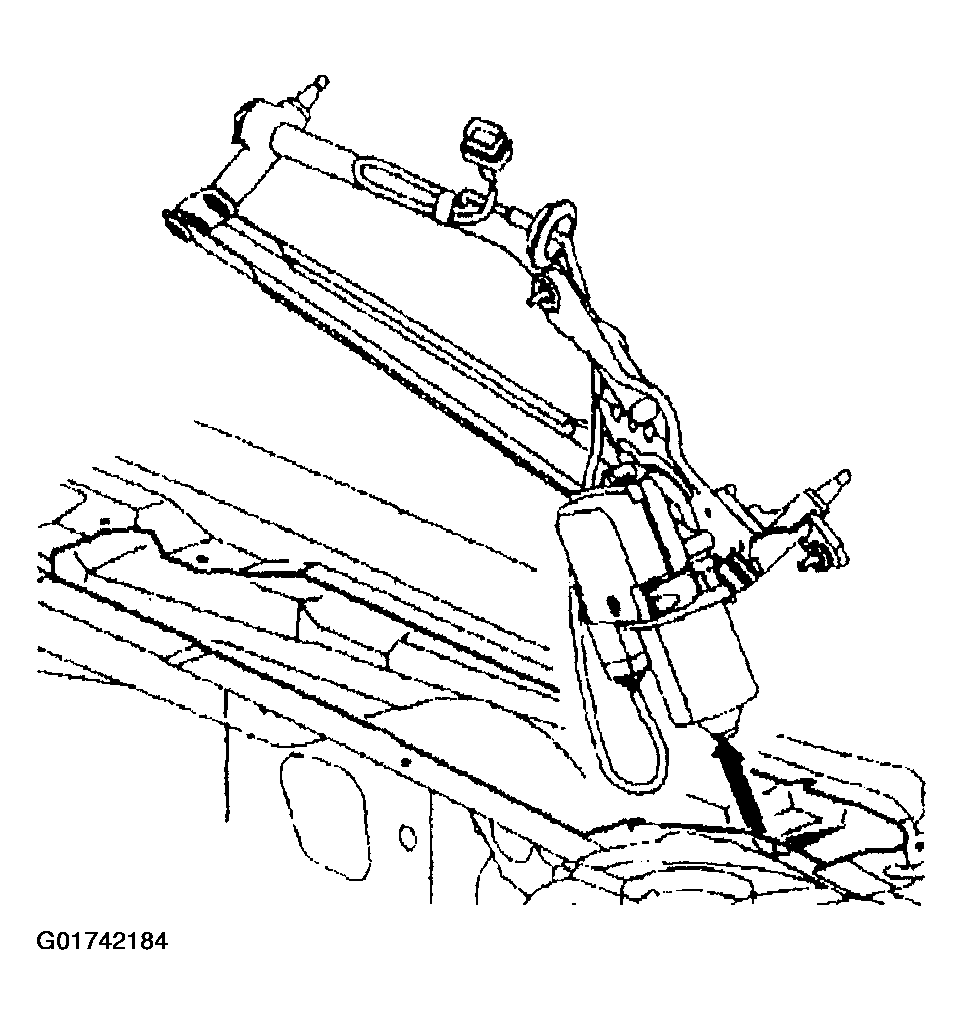

  3. Lower the wiper module into the upper plenum with the nose of the wiper motor pointing downward.
    4. Fig 2: Lowering Wiper Module Into Upper Plenum
    G01742184Courtesy of GENERAL MOTORS CORP.
  4. Rotate the wiper module so that the wiper motor nose points toward the rear of the vehicle.

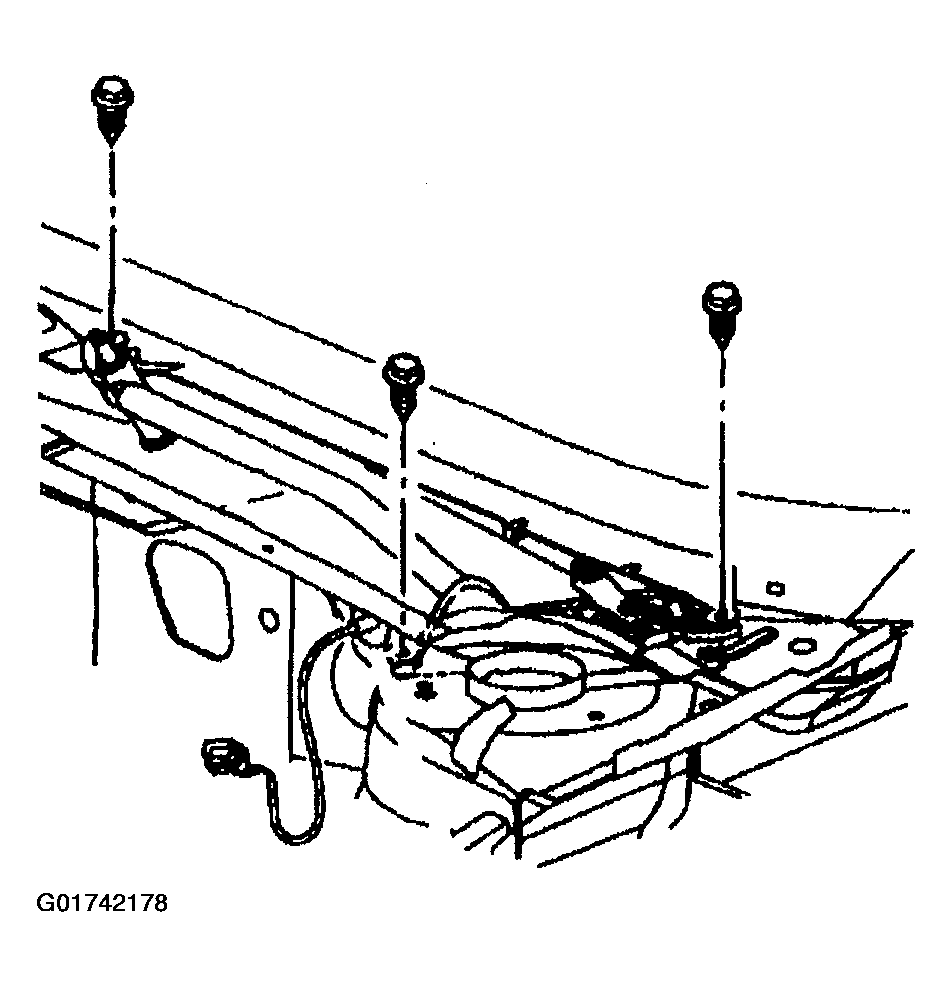

  5. Install the wiper drive system module with the three screws. Tighten the three screws to 8 N.m (71 in lbs). See Figure.
  6. Push the harness and grommet through the hole in the plenum.
  7. Connect the wiper motor harness connector.
  8. Install the harness grommet into the hole in the plenum.

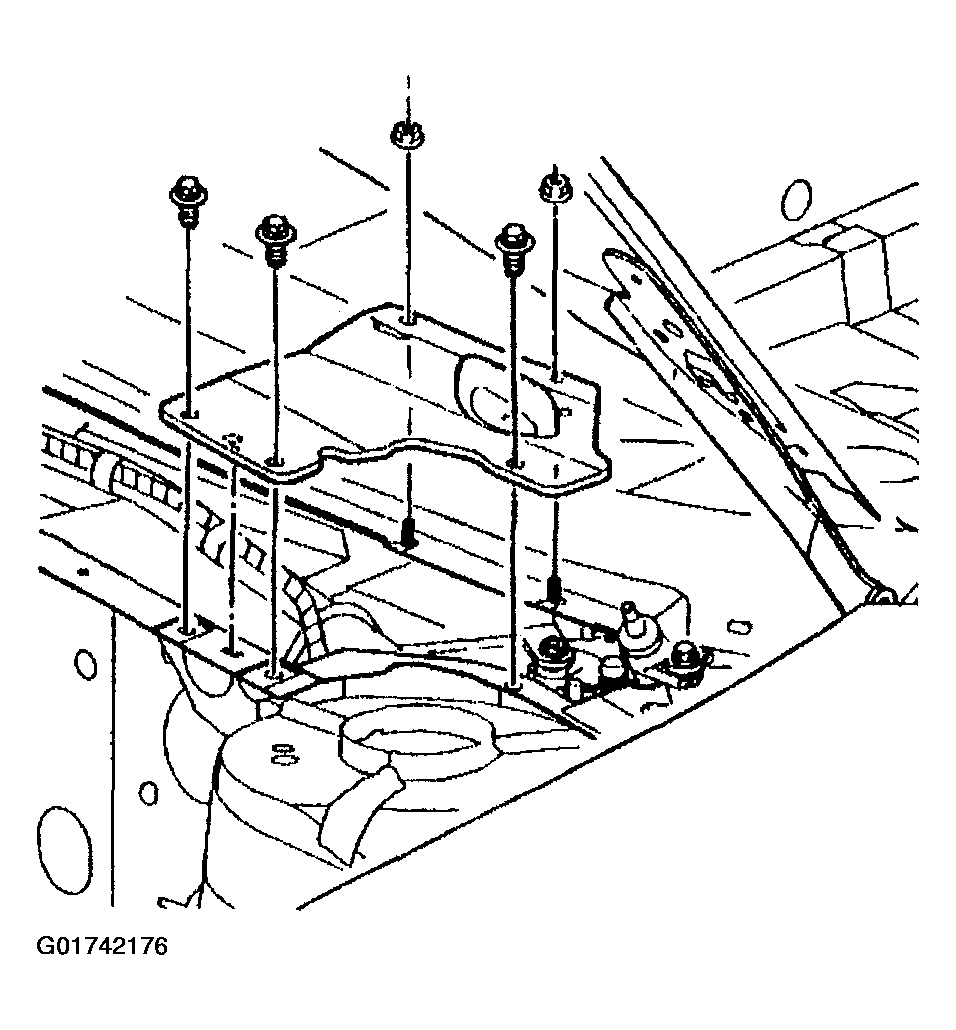

  9. Install the windshield frame reinforcement with the three bolts and two nuts. Tighten the three bolts and two screws to 9 N.m (80 in lbs). See Figure.
  10. Install the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT in Body Front End.
  11. Install the wiper arms. Refer to WIPER ARM REPLACEMENT .
  12. Operate the wipers and check for proper operation.
