Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

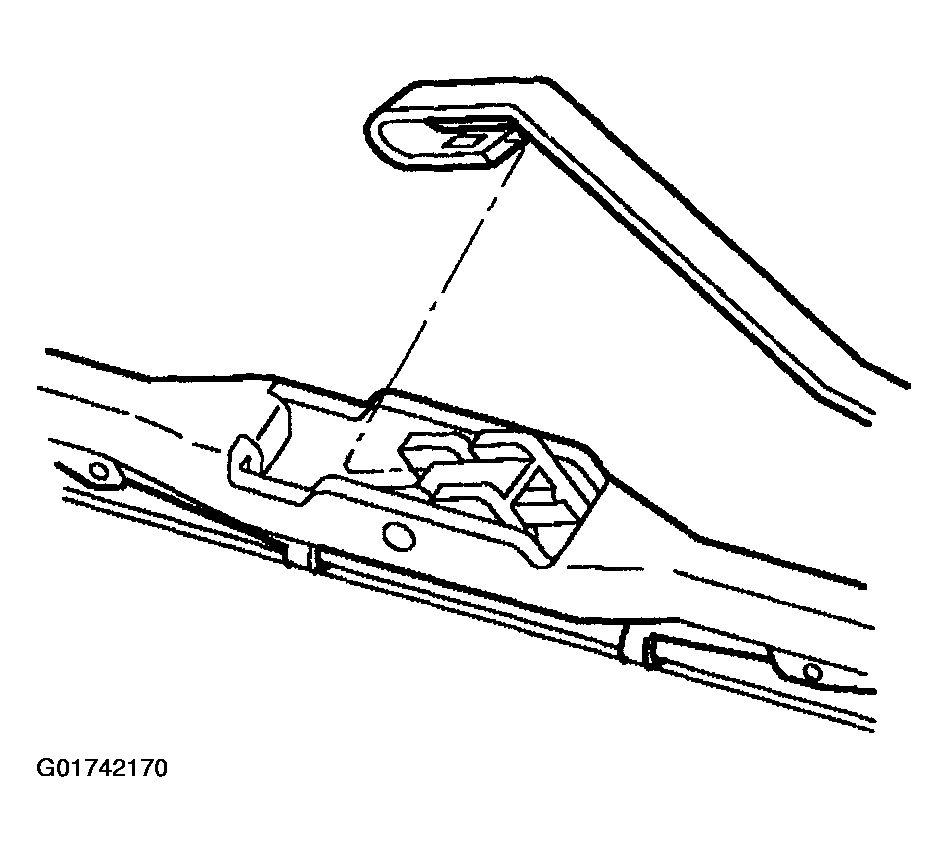

Insert the hook of the wiper arm through the opening in the wiper blade. See Figure.
Position the wiper blade pivot in the inside radius of the wiper arm hook.

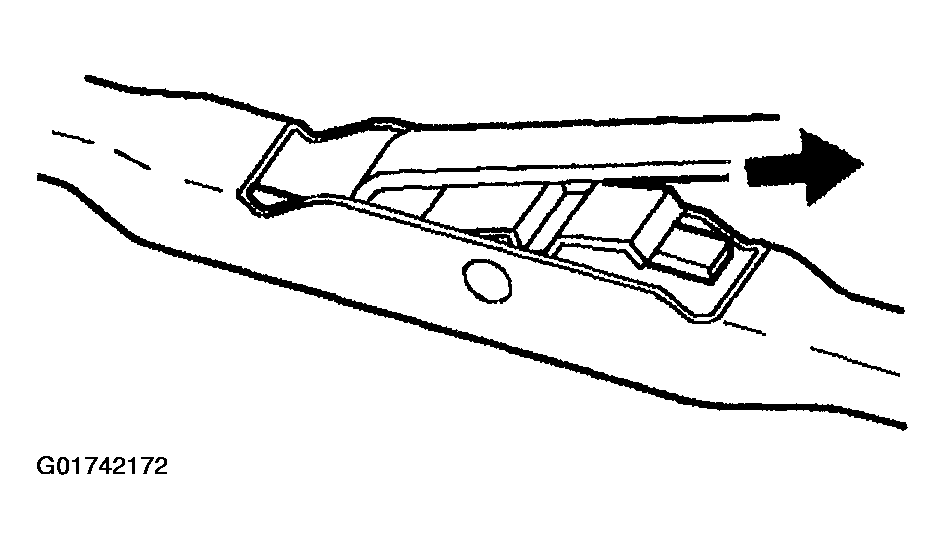

Pull the wiper blade pivot into the wiper arm hook until the pivot locks into the hook.

Fig 1: Locking In Wiper Blade

Courtesy of GENERAL MOTORS CORP.

Operate the wipers and check for proper operation.
