Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container. See Figure.
  2. Install the washer solvent container on the vehicle.
    CAUTION: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

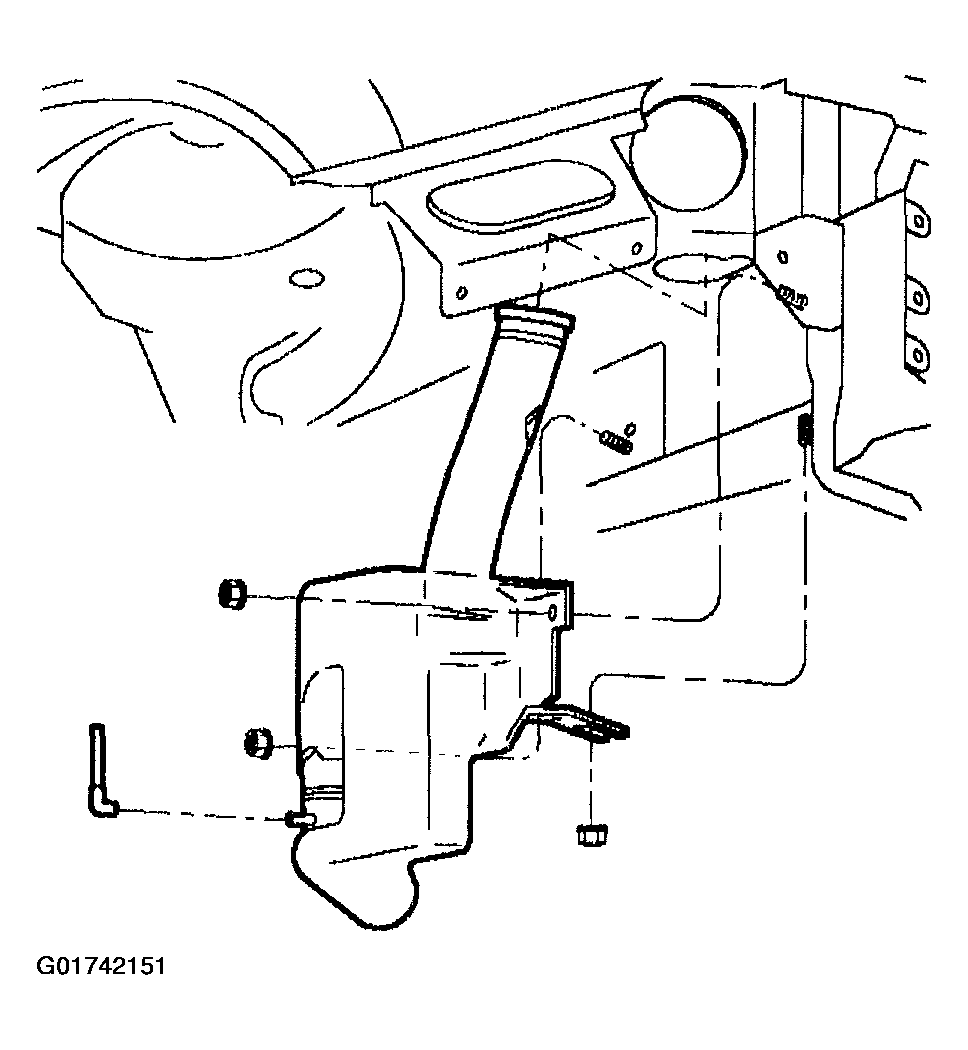

  3. Install the 3 nuts. Tighten the 3 nuts to 6 N.m (53 in lbs). See Figure.

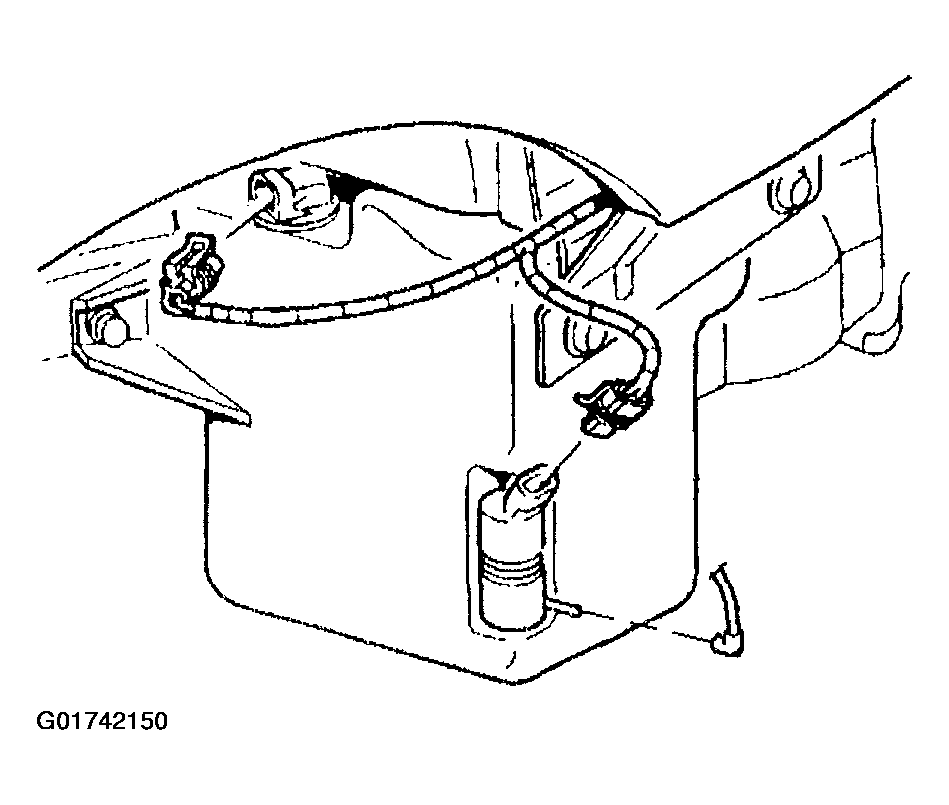

  4. Connect the electrical connector to the washer solvent level sensor. See Figure.
  5. Connect the electrical connector to the washer pump.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
