Installation Procedure

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

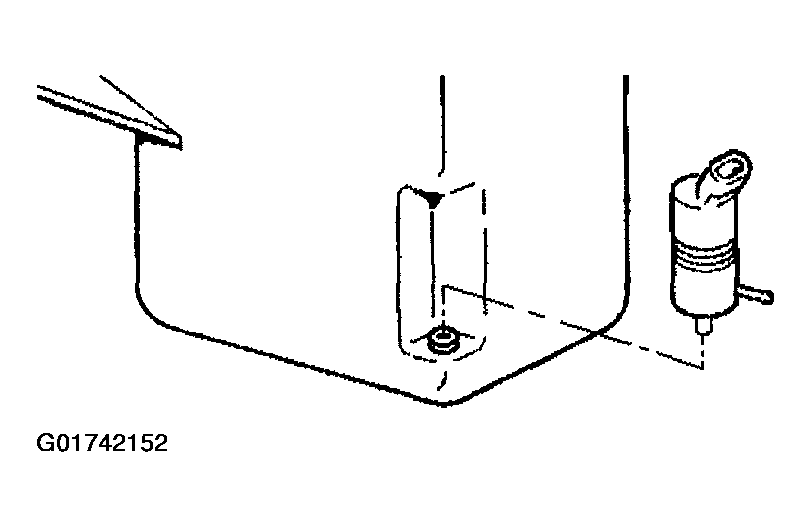

  1. Install the washer pump in the washer solvent container. See Figure.

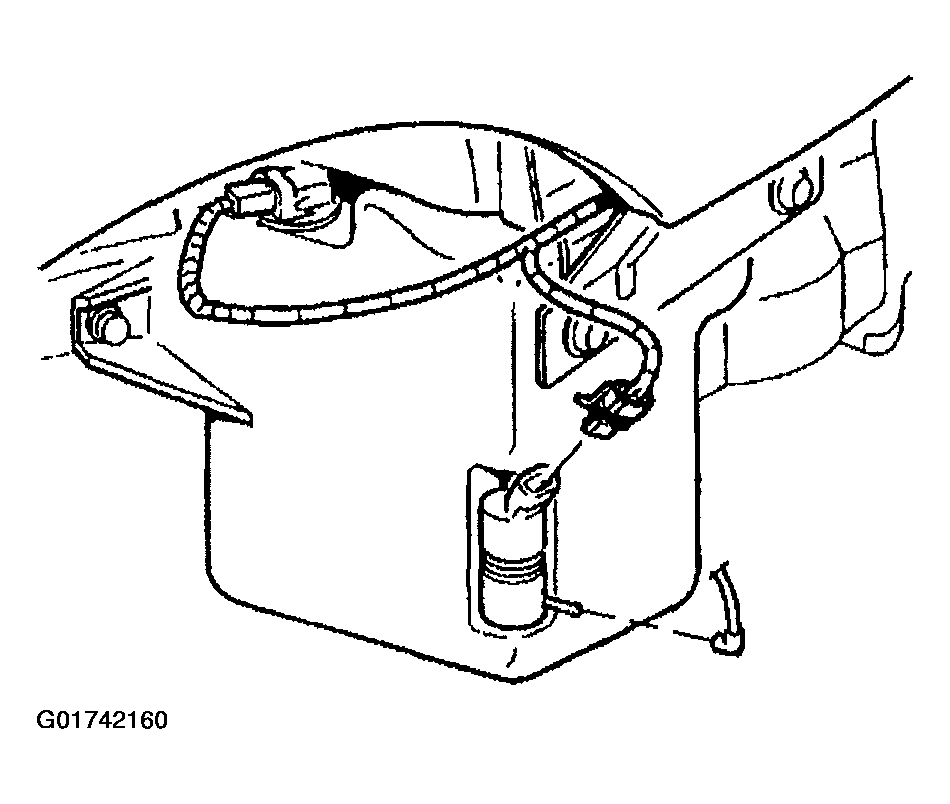

  2. Connect the electrical connector to the washer pump. See Figure.
  3. Connect the washer hose to the washer pump.
  4. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT - FRONT in Bumpers.
  5. Fill the washer solvent container.
