Removal Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

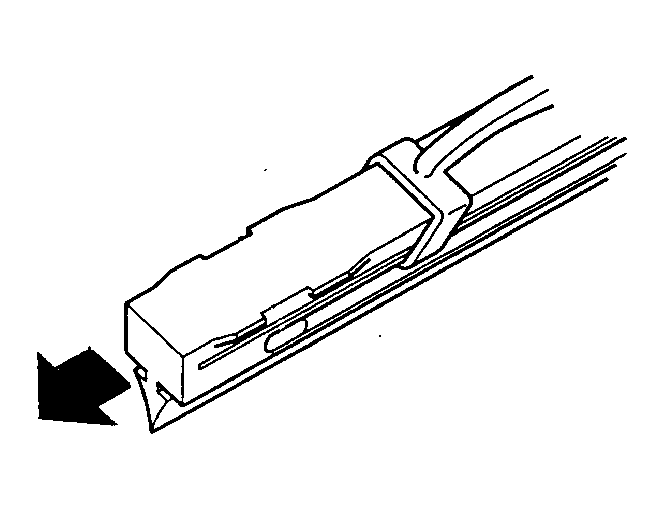

    Fig 1: Removal of Wiper Blade
    GM429896Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Replace the wiper blade element if it is removed from the wiper blade.
  1. Remove the wiper blade from the wiper arm. Refer to Wiper Arm Blade Replacement .
  2. Remove the bottom claws of the wiper blade from the notches in the wiper blade element.
  3. Pull the wiper blade element out through the wiper blade claws.
