Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

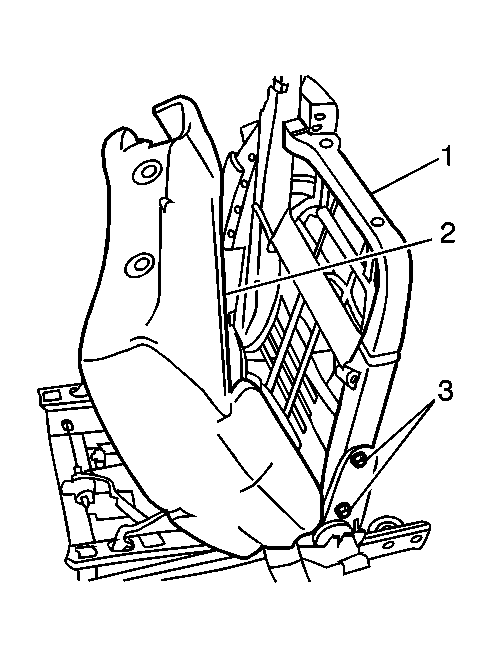

    Fig 1: View of Fasteners & Seat Back Frame
    GM671466Courtesy of GENERAL MOTORS CORP.
  1. Slide the seat back frame (1) straight down into recliner.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the seat back frame fasteners (3).

    Tighten:  Tighten the seat back frame fasteners (3) to 28 N.m (21 lb ft).

  3. Install the lumbar. Refer to Lumbar Replacement - Front Seat (Power)  or Lumbar Replacement - Front Seat (Manual) .
  4. Install the seat back cover and pad. Refer to Seat Back Cover and Pad Replacement - Front .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 7 orSIR Disabling and Enabling Zone 9 in SIR.
