Installation Procedure

WARNING: This page is about a different car, the 2005 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connectors.

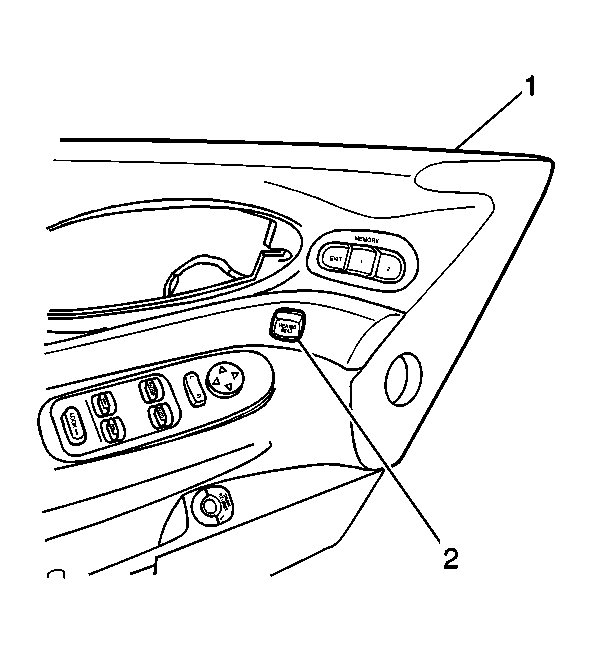

    2. Fig 1: View of Heated Seat Switch & Door Trim Panel
    GM710438Courtesy of GENERAL MOTORS CORP.
  2. Install the heated seat switch (2) into the door trim panel (1).
  3. Press down on the heated seat switch to engage the retainer clip.
  4. Install the door trim panel. Refer to Trim Panel Replacement - Side Front Door in Doors.
