UNDERHOOD Fuse Block

NOTE: Underhood fuse block is located on passenger's side of engine compartment. See Fig 1 .

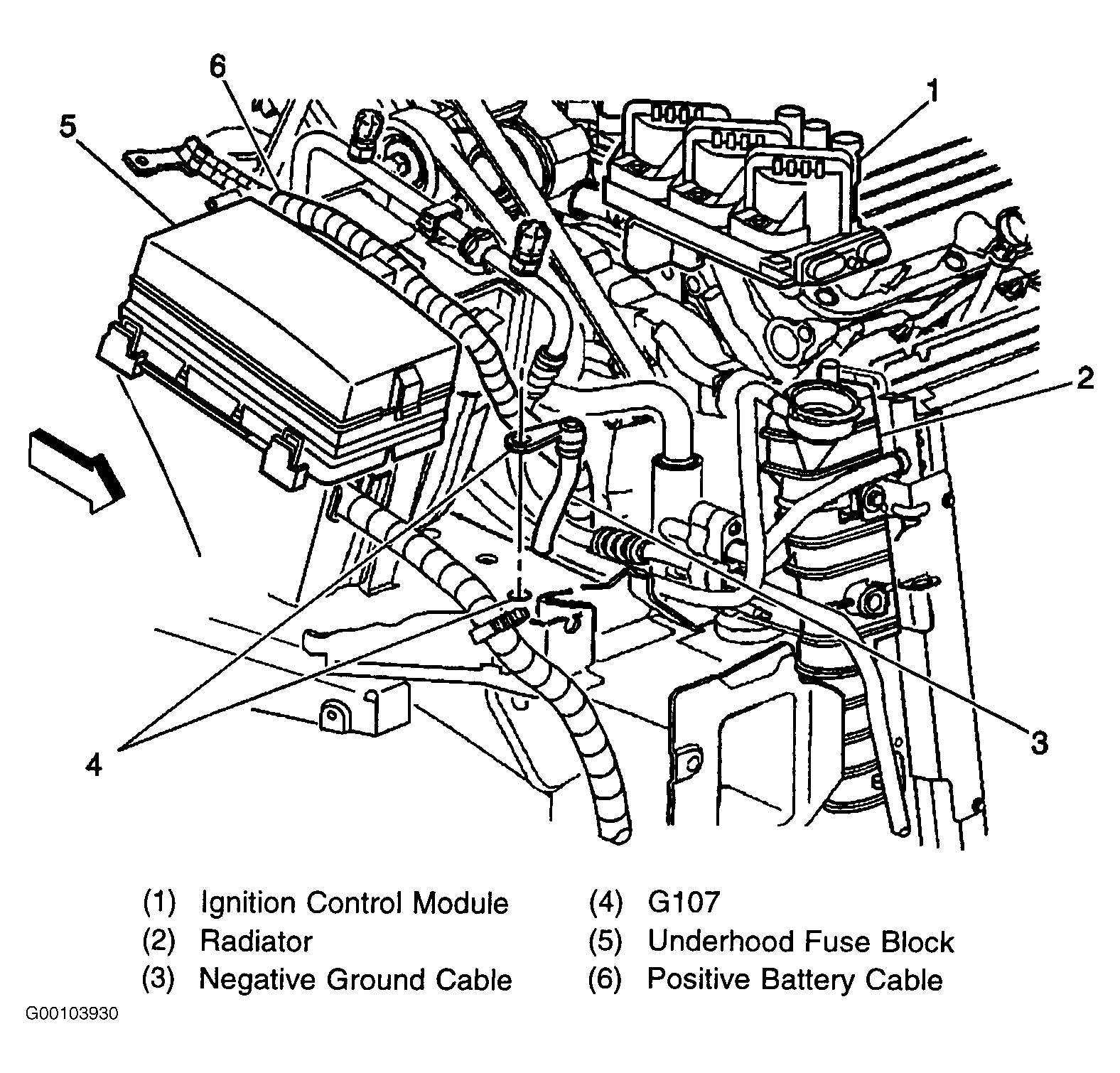

Fig 1: Locating Underhood Fuse Block

Courtesy of GENERAL MOTORS CORP.

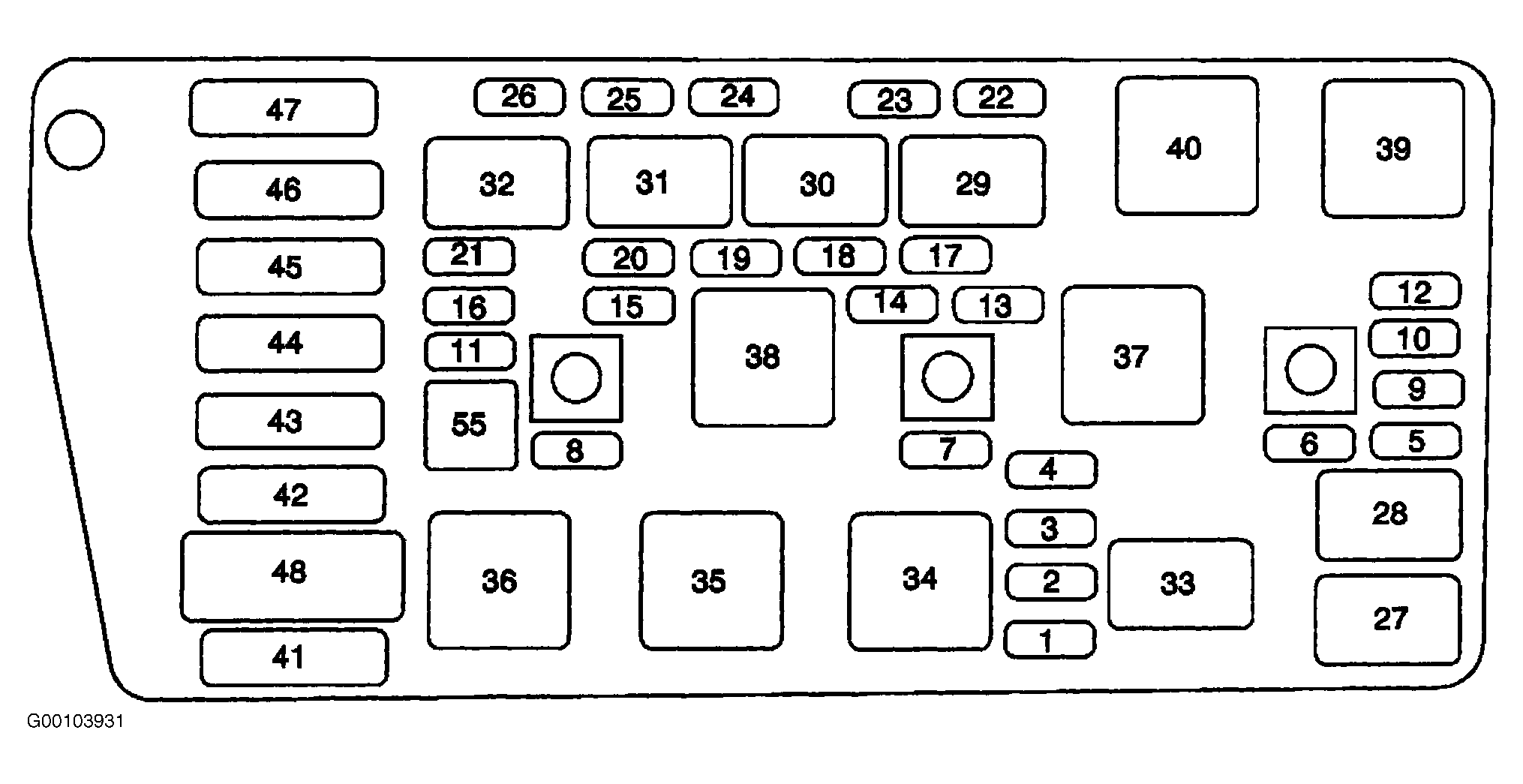

Fig 2: Identifying Underhood Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

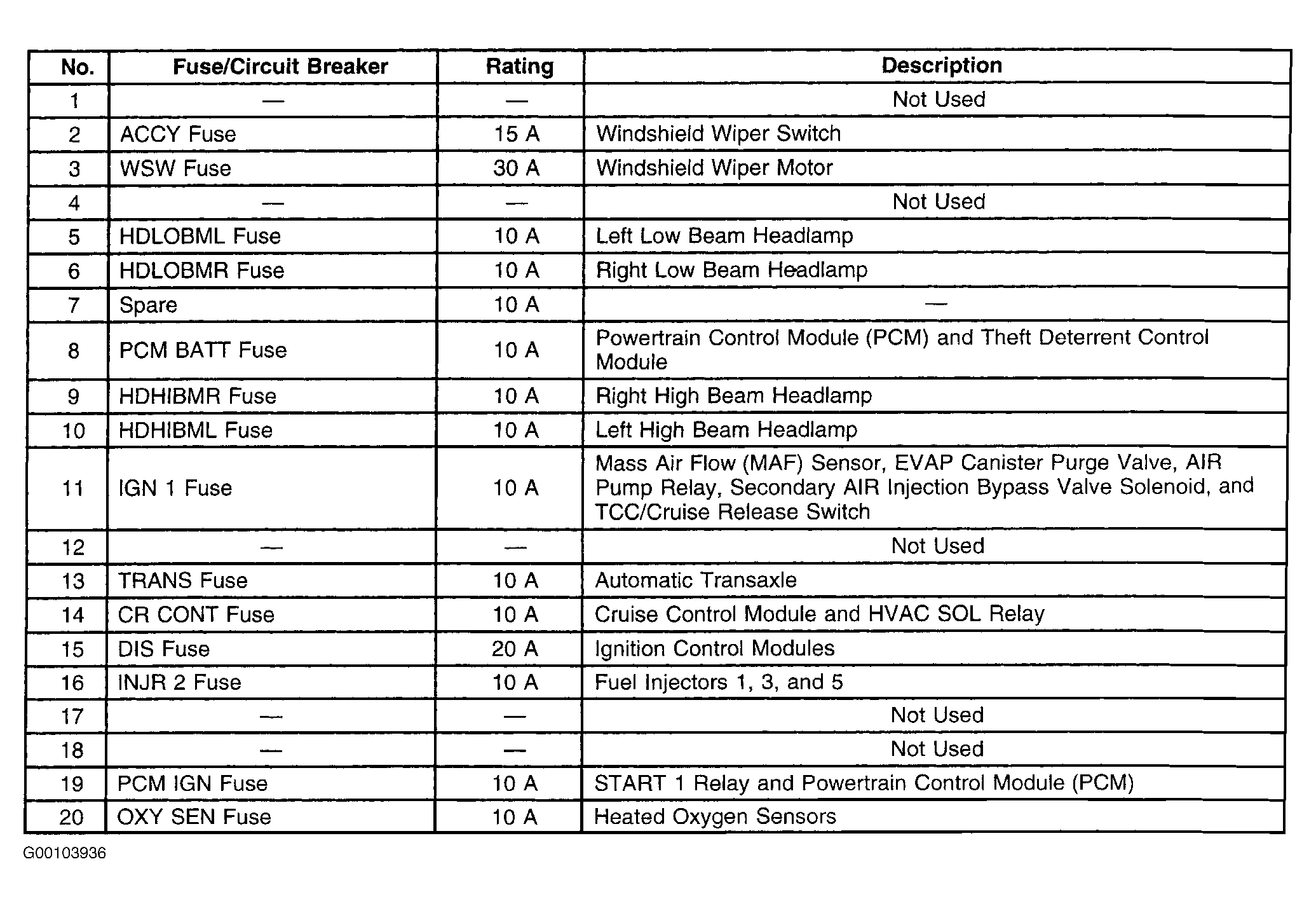

Fig 3: Underhood Fuse Block Legend (1 of 2)

Courtesy of GENERAL MOTORS CORP.

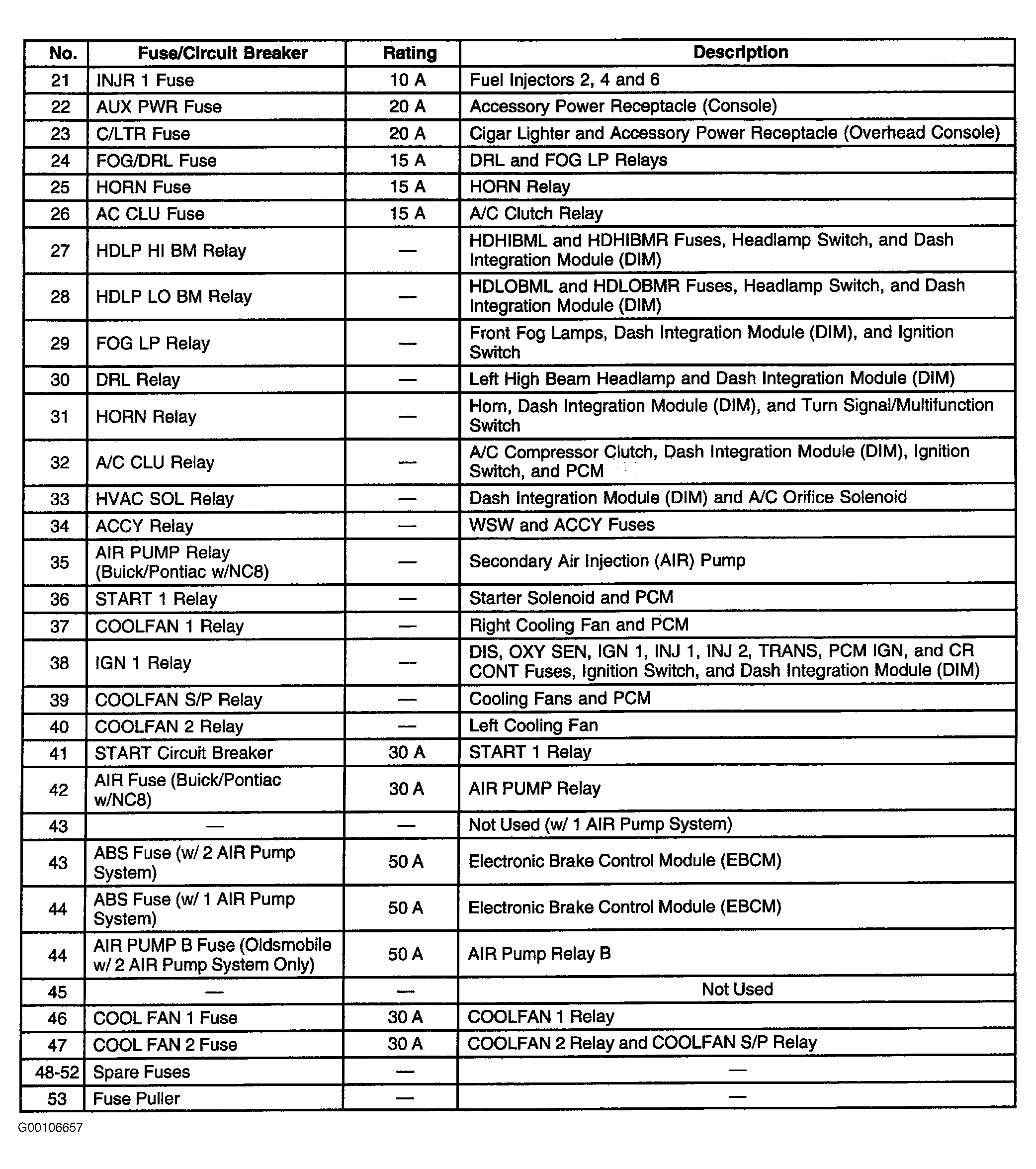

Fig 4: Underhood Fuse Block Legend (2 of 2)

Courtesy of GENERAL MOTORS CORP.
