Rear Fuse Block

NOTE: Rear fuse block is located under rear seat. See Fig 1 or Fig 2 .

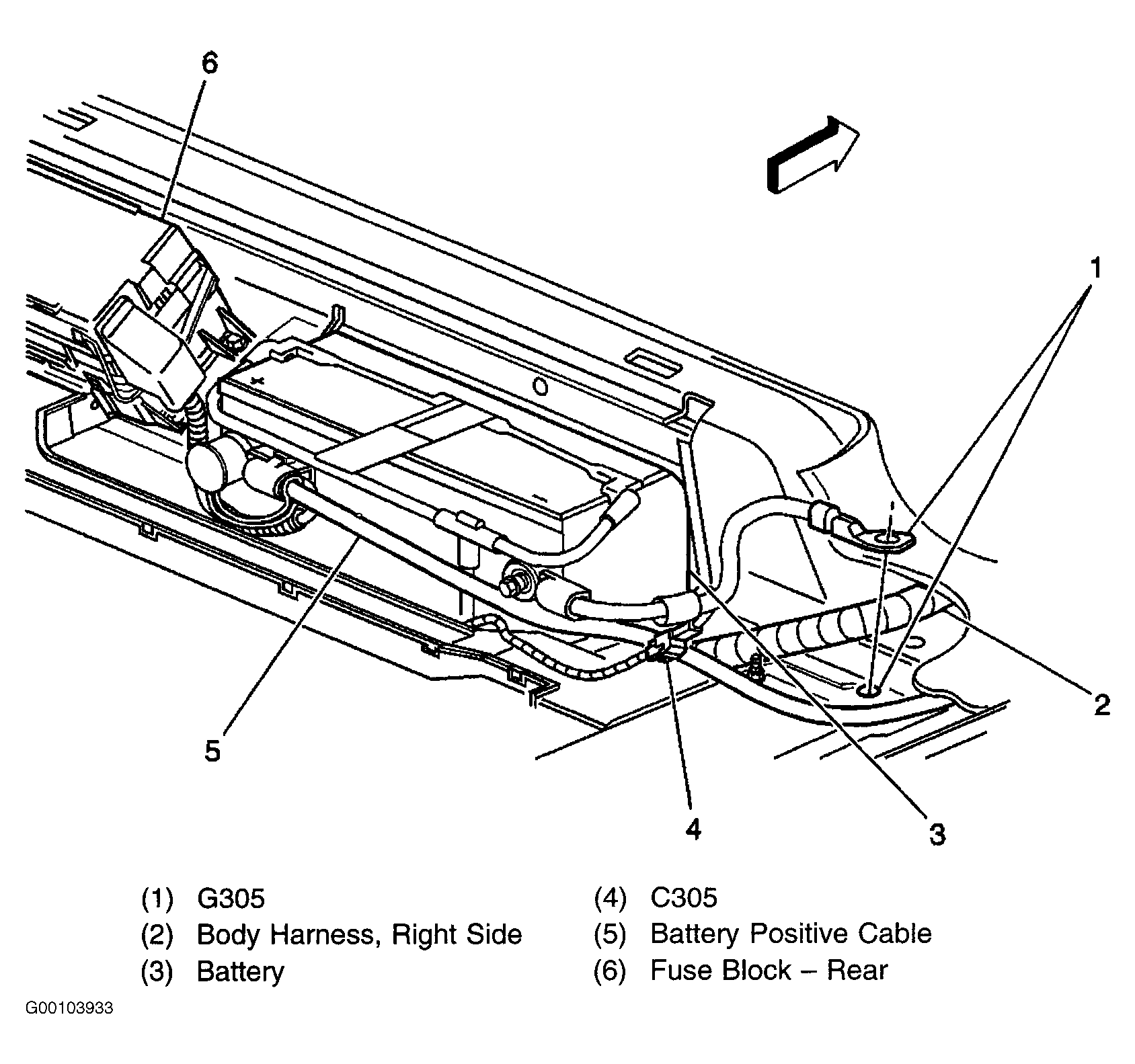

Fig 1: Locating Rear Fuse Block (2000 Bonneville)

Courtesy of GENERAL MOTORS CORP.

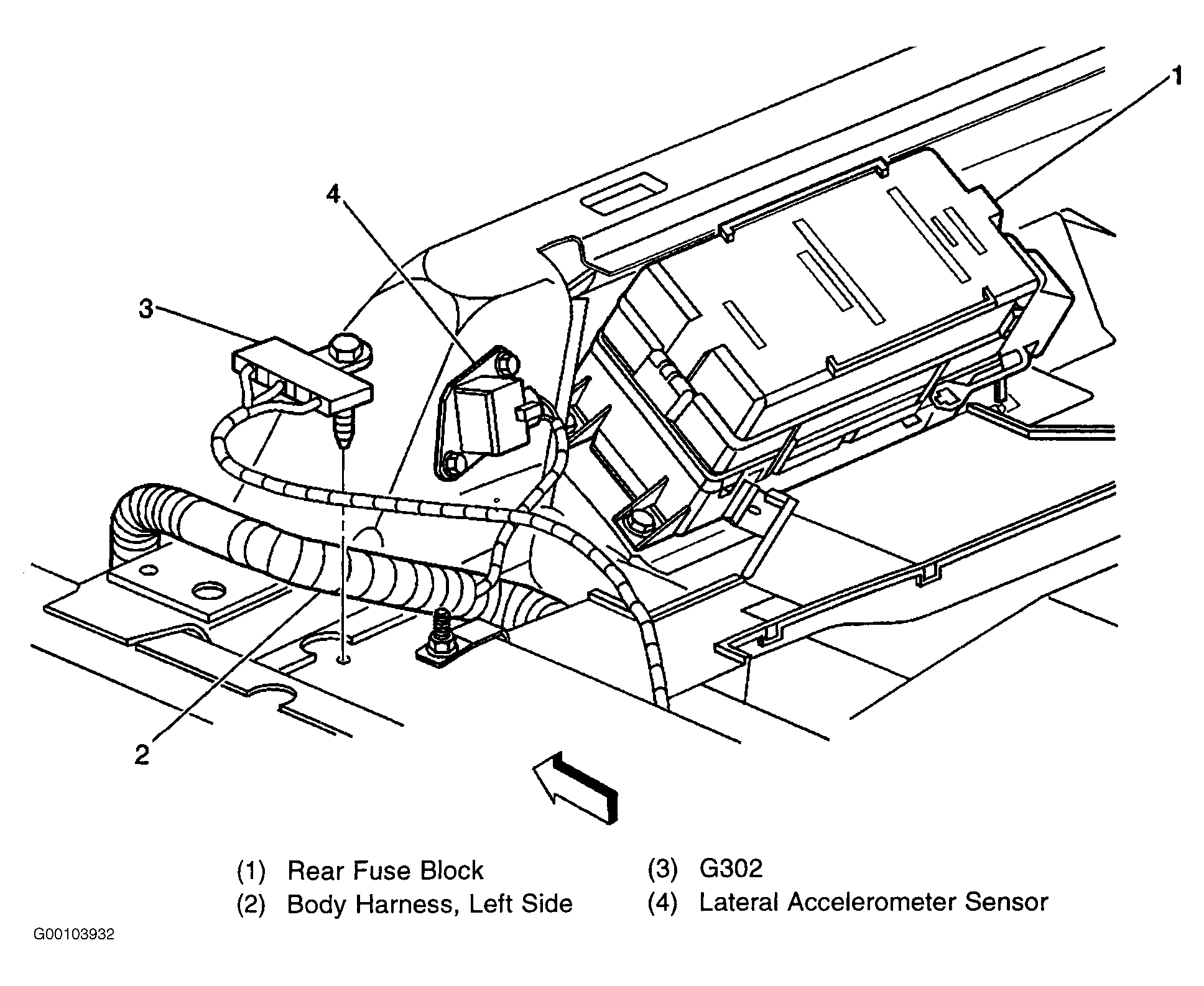

Fig 2: Locating Rear Fuse Block (2001 Bonneville & 2000-01 LeSabre)

Courtesy of GENERAL MOTORS CORP.

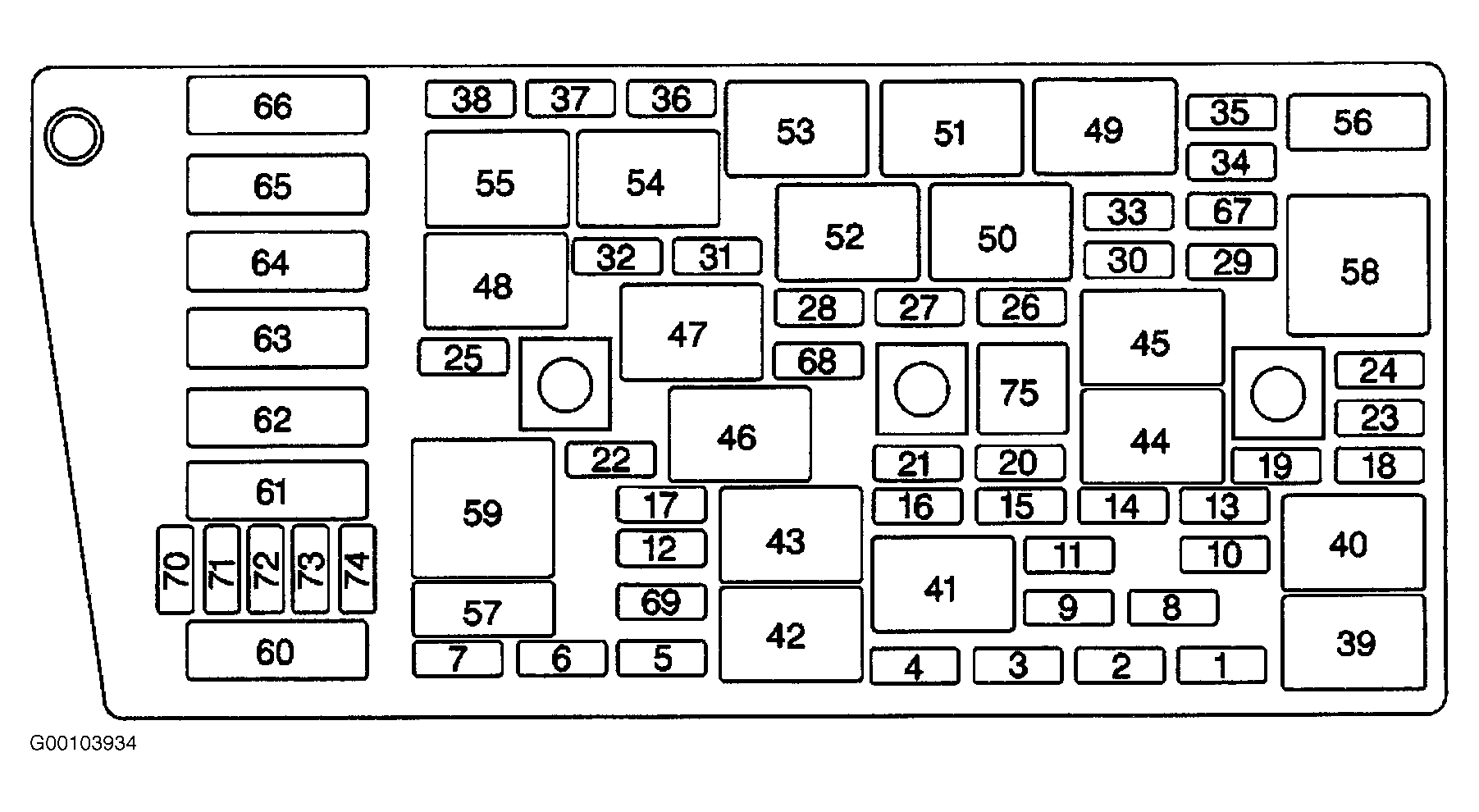

Fig 3: Identifying Rear Fuse Block Components

Courtesy of GENERAL MOTORS CORP.

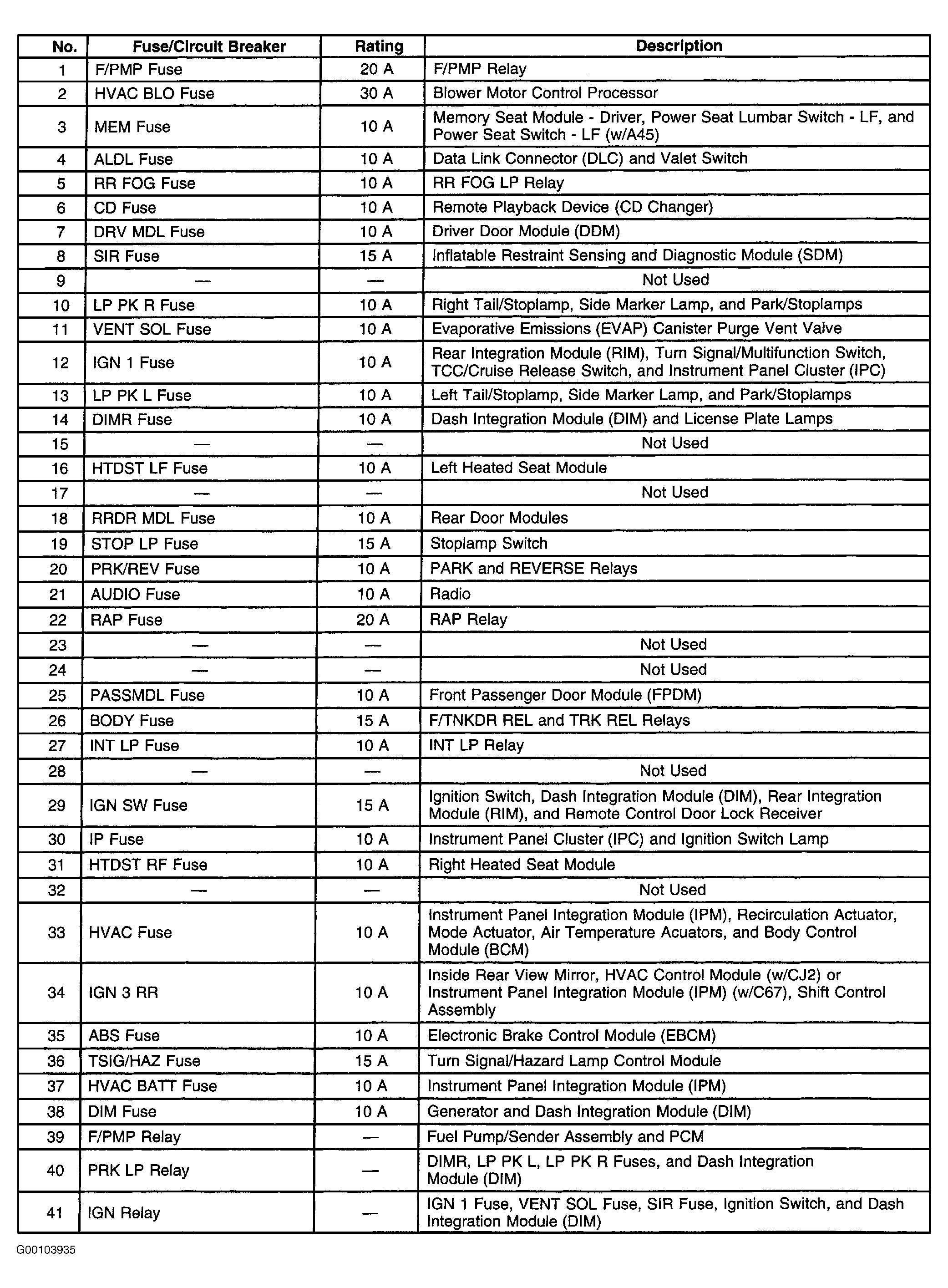

Fig 4: Rear Fuse Block Legend (1 of 2)

Courtesy of GENERAL MOTORS CORP.

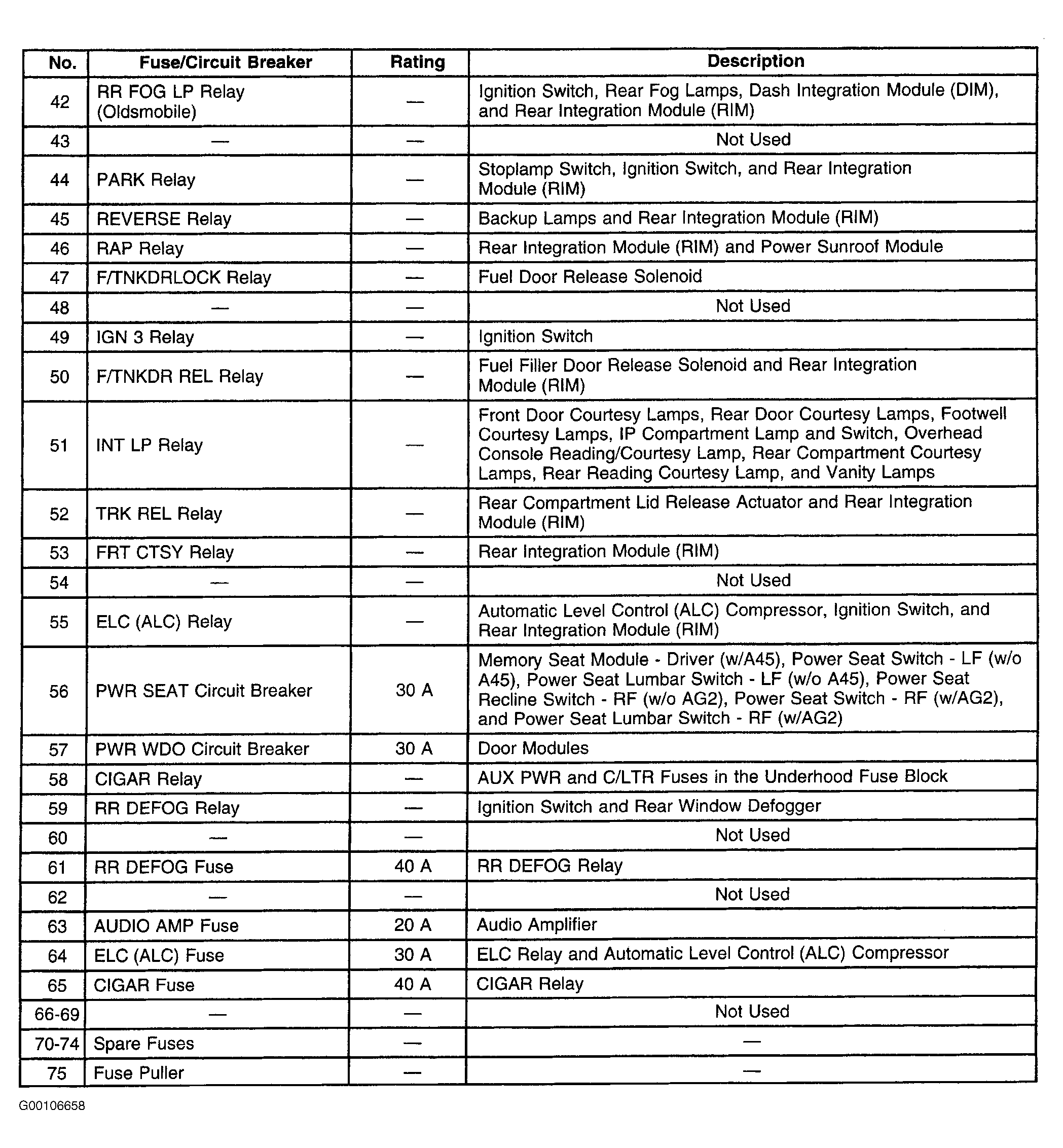

Fig 5: Rear Fuse Block Legend (2 of 2)

Courtesy of GENERAL MOTORS CORP.
