Component Locations

WARNING: This page is about a different car, the 2002 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
A/C Refrigerant Sensor Lower Front Of Engine
A/C Compressor Clutch Lower Front Of Engine
Air Temperature Actuator Right Side Of HVAC Housing
Blower Motor Right Side Of HVAC Housing
Blower Motor Control Processor Right Side Of HVAC Housing
Mode Actuator Left Side Of HVAC Housing
Recirculation Actuator Right Side Of HVAC Housing

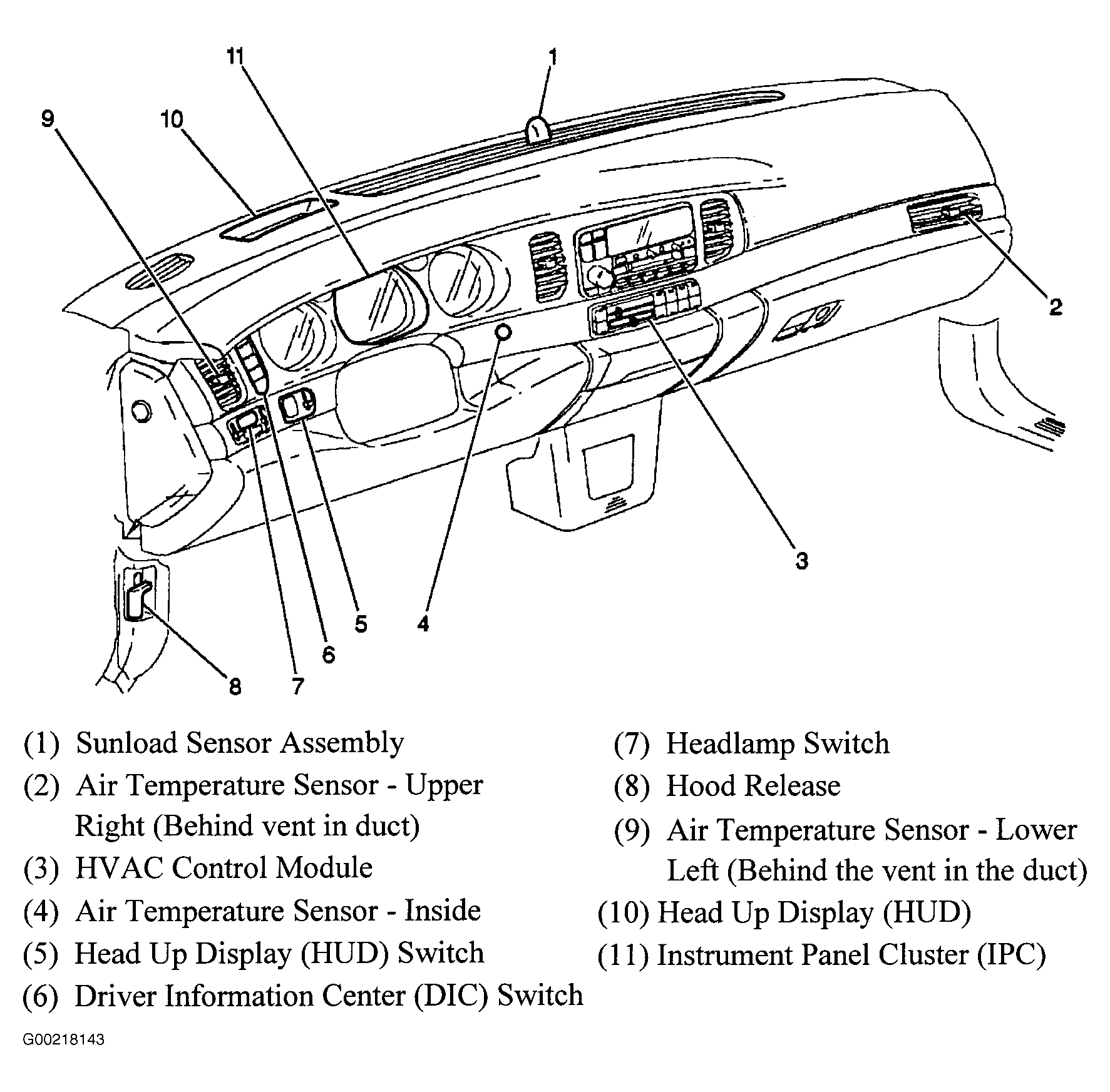

Fig 1: Locating Components On Instrument Panel
G00218143Courtesy of GENERAL MOTORS CORP.

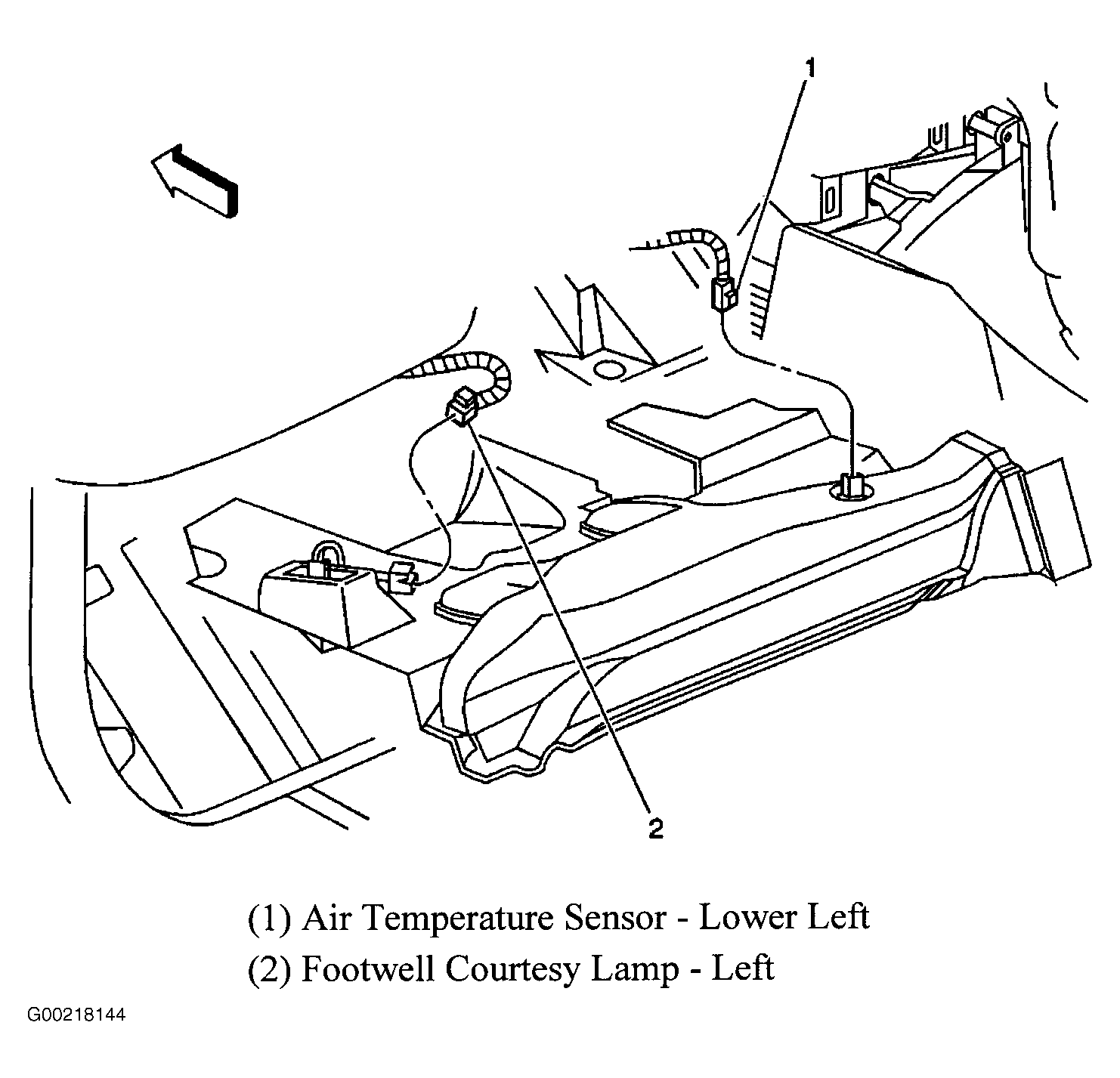

Fig 2: Locating Components On Left Side Foot Well
G00218144Courtesy of GENERAL MOTORS CORP.

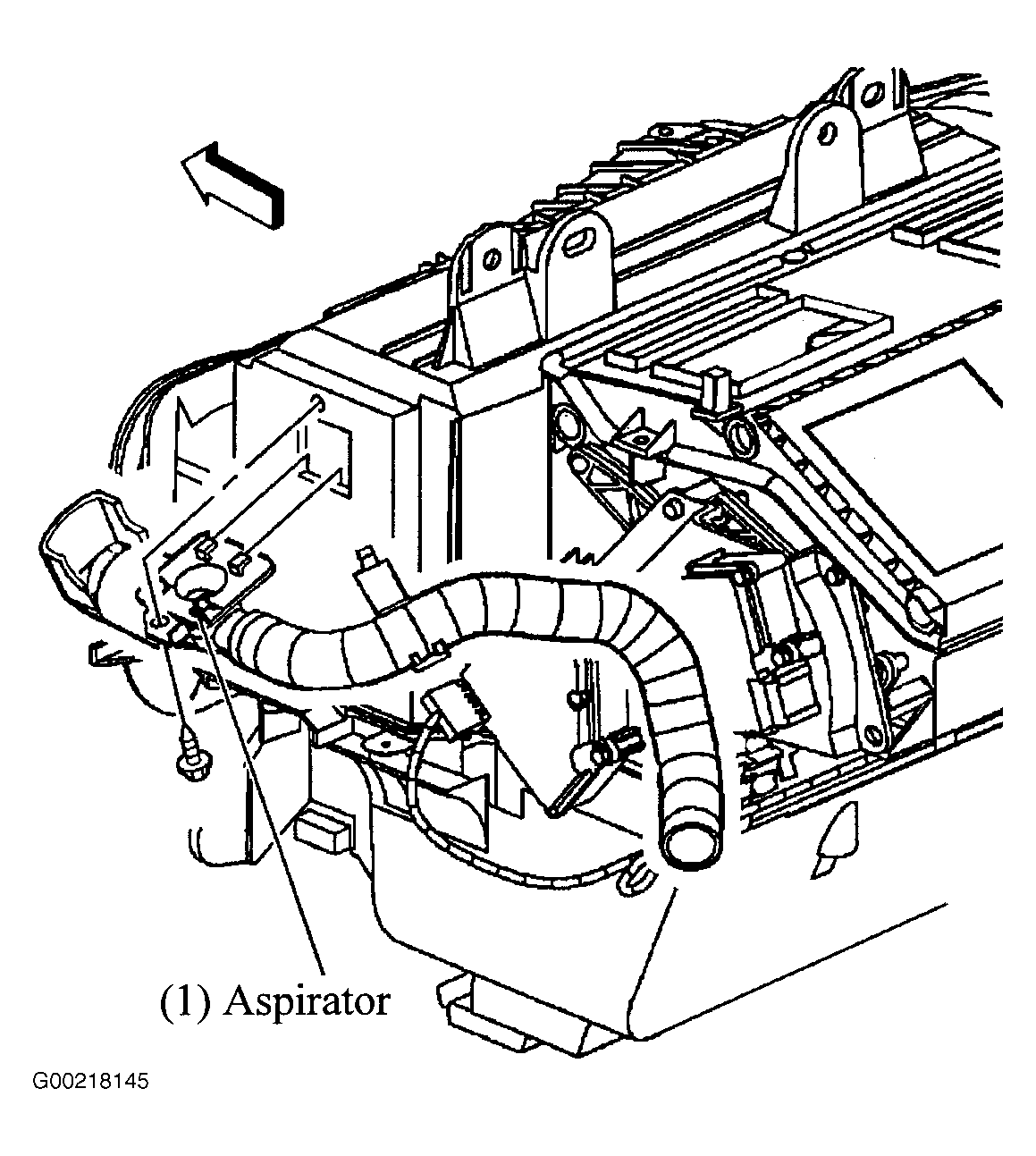

Fig 3: Locating Components On Left Side Of HVAC Housing (Automatic)
G00218145Courtesy of GENERAL MOTORS CORP.

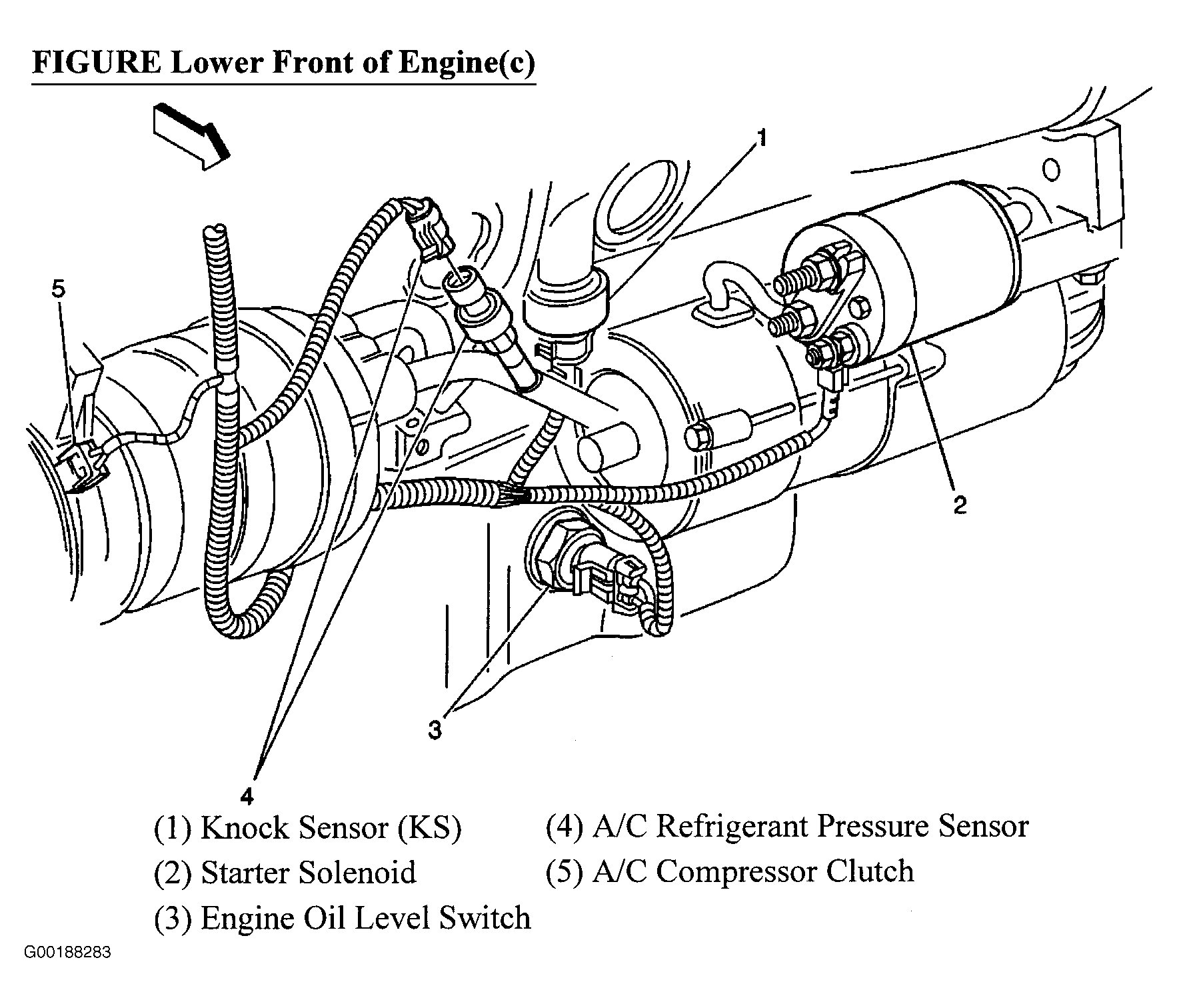

Fig 4: Locating Components In Lower Front Of Engine Compartment
G00188283Courtesy of GENERAL MOTORS CORP.

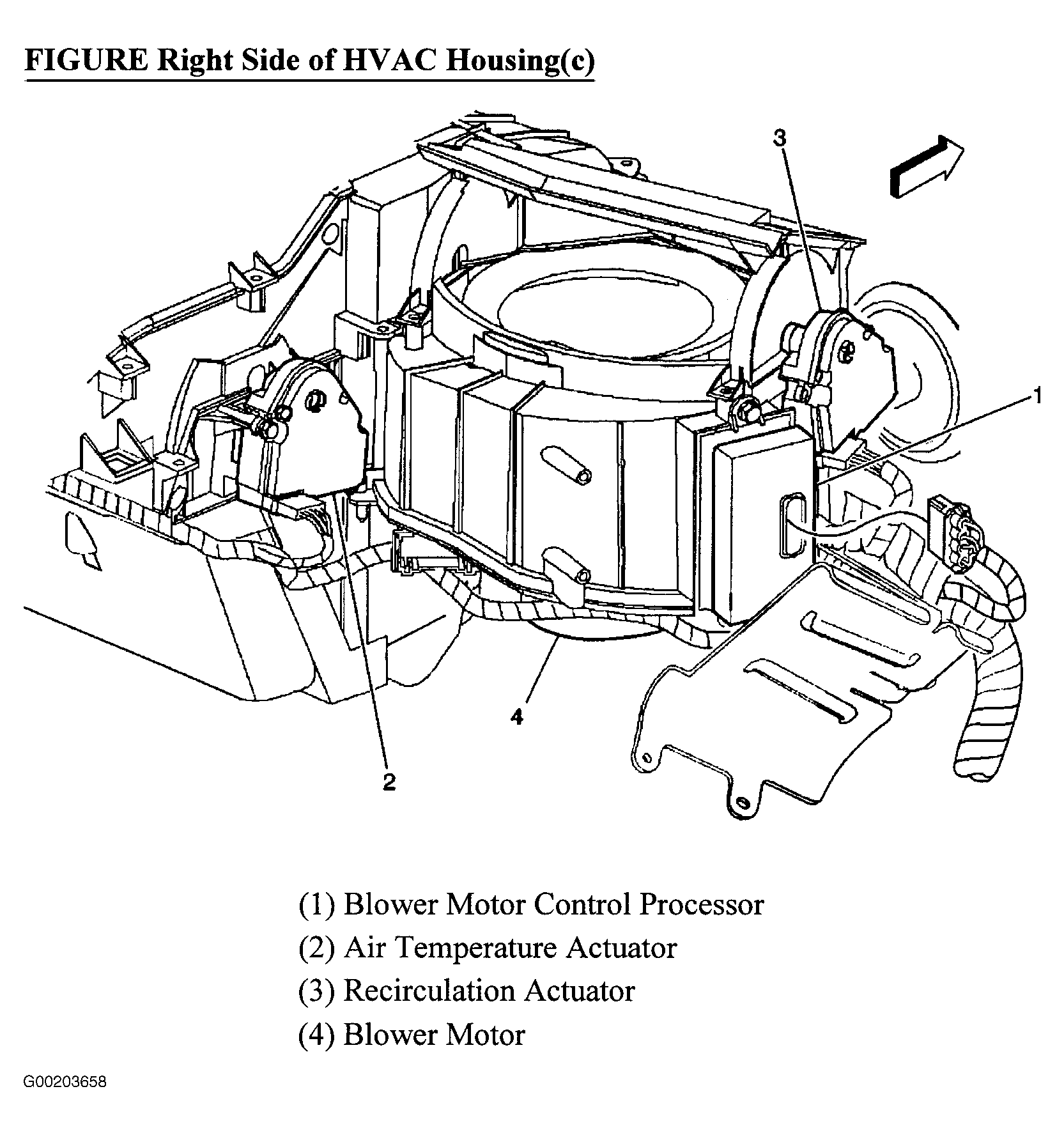

Fig 5: Locating Components On Right Side Of HVAC Housing
G00203658Courtesy of GENERAL MOTORS CORP.

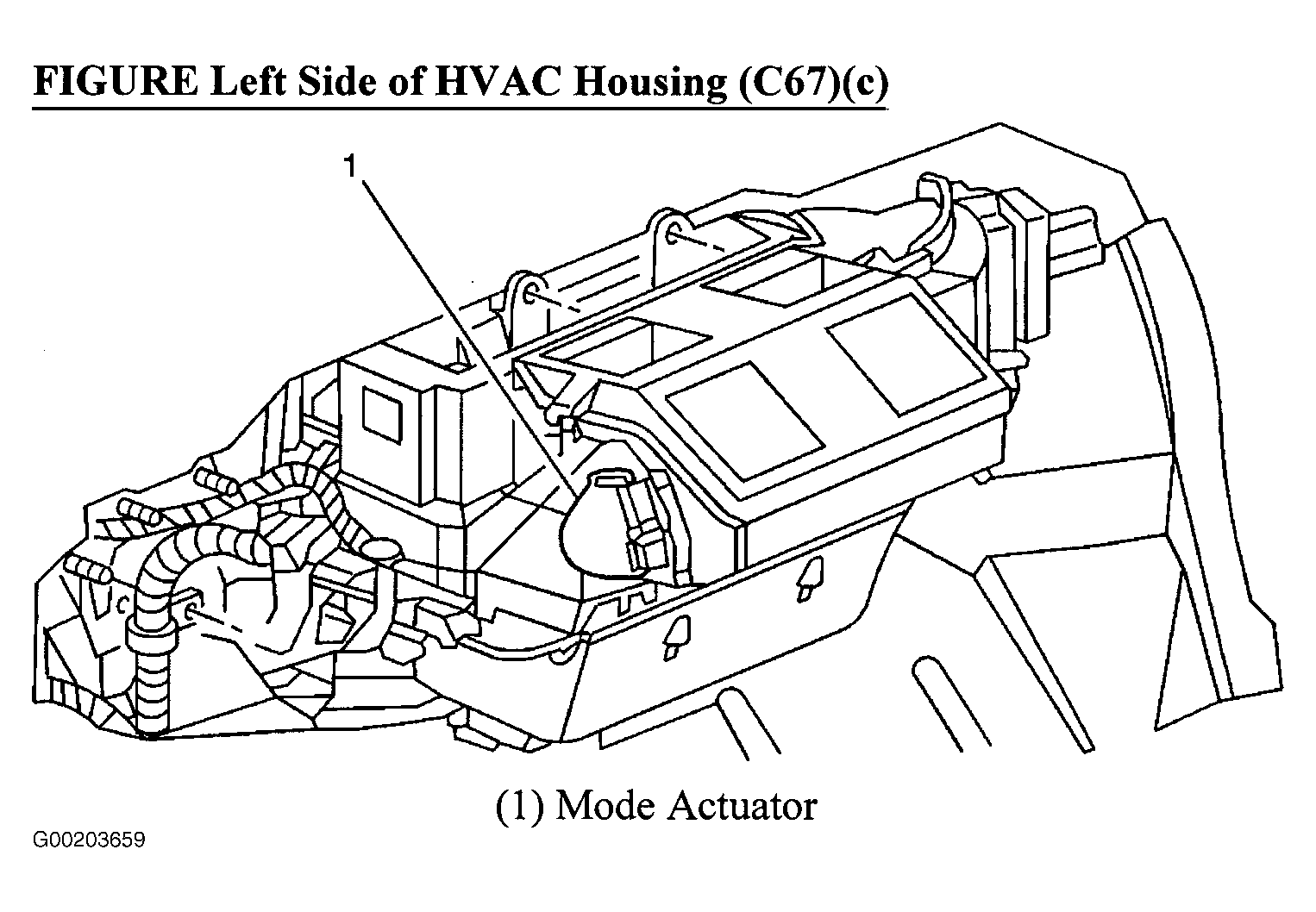

Fig 6: Locating Components On Left Side Of HVAC Housing
G00203659Courtesy of GENERAL MOTORS CORP.
